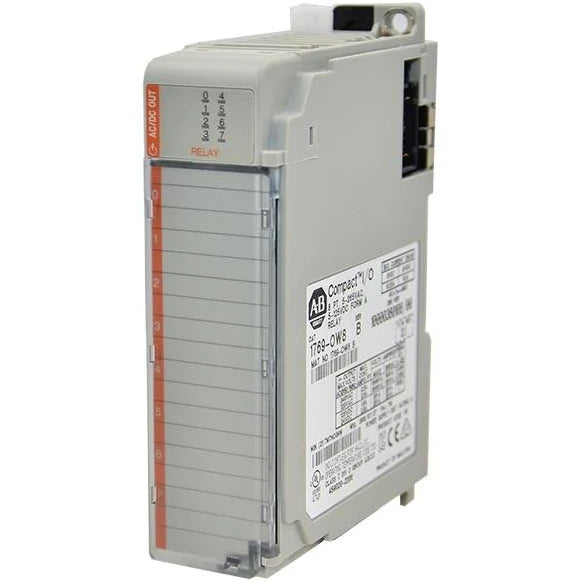

1769-OW8 | Allen-Bradley CompactLogix Relay Output Module, 8 Point VAC/VDC
- Regular price
- $222.00
- Sale price
- $222.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-OW8
Description
The Allen-Bradley/Rockwell Automation 1769-OW8 module is a relay contact module from the Allen-Bradley CompactLogix series. It is equipped with 8 output channels and it can use AC and DC voltage. The 1769-OW8 relay contact module operates with a terminal block that is replaceable. It also supports a door label that can be used to list the specifications of the module and its components. The 1769-OW8 relay contact module is compatible with Allen-Bradley controllers from the CompactLogix series that it is a part of, and it is compatible with Allen-Bradley MicroLogix controllers.
Technical Specifications
| Brand | Allen-Bradley |
| Series | A and B |
| Part Number | 1769-OW8 |
| Manufacturer | Rockwell Automation |
| Product Family | Compact I/O |
| Product Type | Discrete Output Module |
| Product Line | CompactLogix |
| Module Type | Relay Output Module |
| No. of outputs | 8 |
| Input Type | Relay Output |
| Power Supply Distance rating | 8 |
| Communication Cable | 8 Point |
| Compatible controllers | MicroLogix 1500; CompactLogix controllers |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Voltage Category | AC/DC normally open relay |
| Operating Voltage range | 5 to 265V ac 5 to 125V dc |
| Signal delay, On | 10 ms |
| Wire Size (Solid) | 22 to 14 AWG |
| Wire Size (Stranded) | 22 to 16 AWG |
| Bus Current draw, 5.1 V | 125 mA |
| Bus Current draw, 24 V | 100 mA |
| Wire Type | Copper-90 degrees |
| Heat Dissipation | 2.83 Watts |
| Solid Wire Size | 22 to 14 AWG |
| Stranded Wire Size | 22 to 16 AWG |
| Slot width | 1 |
| Mounting | DIN Rail or Panel Mount |
| Dimensions | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Wire Size | (22…14 AWG) solid (22…16 AWG) stranded |
Information About 1769-OW8
The Compact I/O module with part number 1769-OW8 belongs to the 1769 CompactLogix controller family. This module is a product of Allen-Bradley that features embedded Eight (8) Form A contact outputs. Each output channels of this module operates at a Voltage category of 5-265VAC and 5-125VDC. This module is certified by c-UL, CE and C-Tick and compatible for use in industrial environments and workplace, for machine or process automation.
The 1769-OW8 has Two (2) output groups with (4) channels per group. Through this input grouping, different voltage types may be present or used by each group as well as similar voltage category. Channel group 1 is composed of channels 0, 1, 2 and 3 while Channel group 2 includes channels 4, 5, 6 and 7. Each channel of the module has a higher Current handling capability which amounts to 2.5A at 120 / 240 VAC while for 125VDC, 1.0A continuous current and 2.0A continuous current for 24VDC.
Install this module with MicroLogix 1500 or CompactLogix controllers. CompactLogix controllers that support installation of 1769 Compact I/O are 5370 L1, L2 and L3 controllers. For Version 20.
This module has a power supply distance rating of Eight (8) modules and compatible with Power supplies with part number 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4. If more than 8 modules are needed, an I/O power supply must be added within the controller assembly.
.The Allen-Bradley 1769-OW8 is a compact DC/AC relay contact module. It belongs to the 1769 Compact I/O module series which can be used with Allen-Bradley CompactLogix controllers and MicroLogix 1500 controllers. For I/O expansion applications through remote I/O systems, this module is compatible for use with the 1769-ADN DeviceNet adapter, or with 1769-AENTR Ethernet adapters.
The 1769-OW8 is certified by the CE and c-UL standards. The 1769-OW8 features Eight (8) normally open outputs. The operating voltage ranges are 5 to 265 Volts AC and 5 to 125 Volts DC. Both the on delay and the off-delay time are 10 milliseconds while the module’s current draw at 5.1 Volts DC is 125 milliamps and at 24 Volts DC, is 100 milliamps. The maximum heat dissipation is 2.83 Watts.
There are different contact ratings for the 1769-OW8 module at different voltage ratings. At 120 to 240 Volts AC, the module is rated at 2.5 Amps maximum continuous current. At 125 Volts DC, the maximum continuous current rating is 1.0 Amps and at 24 Volts DC, the maximum continuous current rating is 2.0 Amps. The recommended wire type to be used for termination on the module is Copper 90 degrees Celsius rated wire. The rated torque for the terminal and retaining screws are 0.68 Nm and 0.46 Nm, respectively. The approximate weight of the 1769-OW8 is 280 grams. The dimensions of the module are 118 x 35 x 87 millimeters. The module takes up 1 slot in the chassis. The power supply modules compatible with the 1769-OW8 are the Allen-Bradley 1769-PB4, 1769-PA2, 1769-PB2, and the 1769-PB4 modules.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
