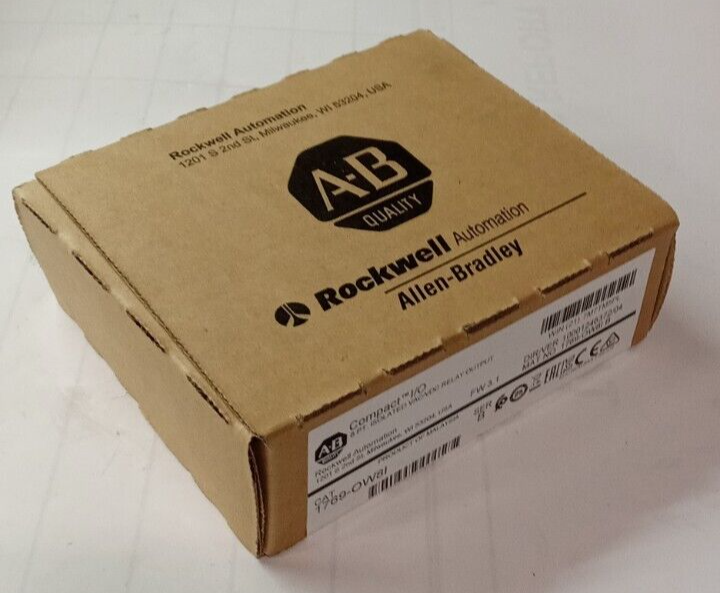

1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
Part #: 1769-OW8I Manufactured by: Allen-Bradley

1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points

Regular price
$242.00
Sale price
$242.00
Regular price
Never Used Surplus
47 in Stock
Shipping calculated at checkout.
Product Overview
Allen Bradley 1769-OW8I CompactLogix/ RS Logix 5000 / 8 point communication cable, VAC-VDC Indiv. Isolated Relay Output I-...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1769-OW8I
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
    1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
    1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
1769-OW8I | Allen-Bradley CompactLogix Relay Output Module 8 AC/DC Isolated Points
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1769-OW8I

Description / Specifications

Description

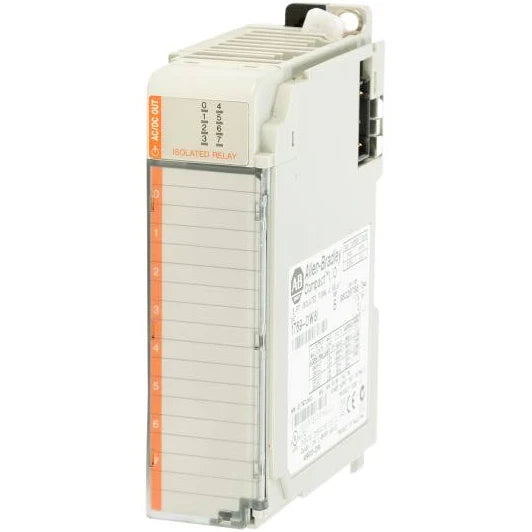

The 1769-OW8I is Compact I/O expansion module. This module has Eight (8) individually isolated Form A Relay output channels. It has Two (2) groups of Four (4) channels each. This module is designed for an operating voltage range of 5 - 265VAC and 5 - 125V DC. It is compatible for use with MicroLogix 1500 and CompactLogix controllers.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-OW8I
Manufacturer Rockwell Automation
Product Family Compact I/O
Product Type Discrete Output Module
Product Line CompactLogix
No. of outputs Eight (8) Individually Isolated
Module Type Output Module
Input Type Relay Output
Power Supply Distance rating 8
I/O Type Contact
Compatible controllers MicroLogix 1500; CompactLogix controllers
Communication Cable 8 Point
Voltage Category AC/DC normally open relay
Operating Voltage range 5 to 265V ac 5 to 125V dc
Shipping Dimensions 8 x 8 x 5 inches
Signal delay, On 10 ms
Wire Type Copper 90 degrees
Bus Current draw, 5.1 V 125 mA
Bus Current draw, 24 V 100 mA
Solid Wire Size 22 to 14 AWG
Heat Dissipation 2.83 Watts
Stranded Wire Size 22 to 16 AWG
Slot width 1
Mounting DIN Rail or Panel Mount
Dimensions 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Wire Size (22…14 AWG) solid (22…16 AWG) stranded





Information About 1769-OW8I

The Allen-Bradley 1769-OW8I is a Compact I/O module with Eight (8) normally-open channels. Each channel of this module is individually isolated which permits every channel of this module to operate with different voltage categories.

The module’s backplane current draws are 125 mA at 5.1 Volts and 100 mA at 24 Volts. The 1769-OW8I module has a maximum current of 2.5 Amps per point and 16 Amps per module and a maximum power dissipation of 2.83 Watts. It has a minimum on-state current of 10 mA at 5 Volts DC and a maximum off-state leakage of 0 mA. The operating voltage of this module is 5 to 265 Volts AC/5 to 125 Volts DC. This module also has an operating vibration of 5 G at 10 to 500 Hertz and a relay operating vibration of 2 G. The 1769-OW8I’s operating temperature is from 0 to 60 degrees Celsius and the non-operating temperature is -40 to 85 degrees Celsius. Its relative humidity ranges from 5 to 95%, non-condensing.

The Allen-Bradley 1769-OW8I module has LED status indicators available and it has an open-type of enclosure. The compatible cables are 22 to 16 AWG stranded and 22 to 14 AWG solid and the compatible power supplies are the 1769-PA2, 1769-PA4, 1769-PB2, and the 1769-PB4. Note that the users can only mount this module by using a DIN rail or a panel mounting base. When using a DIN rail mount, this module has a relay operating shock of 5 G, an operating shock of 20 G, and a non-operating shock of 30 G. A panel-mounted 1769-OW8I module has a relay operating shock of 7.5 G, an operating shock of 30 G, and a non-operating shock of 40 G. Its operating vibration is 5 G at 10 to 500 Hertz and its relay operating vibration is 2 G. Allen-Bradley 1769 Compact I/O modules can be used with CompactLogix controllers, for expansion I/O in a MicroLogix 1500 controller assembly, with a 1769-ADN DeviceNet adapter, as well as with a 1769-AENTR Ethernet adapter.

The 1769-OW8I is an Allen-Bradley Compact I/O module. This module is compatible with CompactLogix controllers and MicroLogix 1500 controllers. It also supports installation in a remote I/O chassis using 1769-ADN or 1769-AENTR communication modules.

This module primarily features Eight (8) isolated Form A contact channels. With the individual isolation of channels, each channel may be operated at a different voltage level instead of groups isolation. Compatible voltage categories computer for this module are 120 VAC, 240 VAC, 24VDC, 125VDC and other voltages within the operating voltage range of 5…265V AC and 5…265V DC. This relay output module has an 10 ms signal delay for ON and OFF transitions.

This module supports DIN rail or Panel Mounting installation. When terminating input wires to this module, use single conductor wire type Cu-90°C (194°F) with nominal size range of #14 to #22 AWG. For stranded wires, use Cu-90°C (194°F) with wire size range of #16 to #22 AWG.

The module’s circuitry is powered by an established connection to the CompactLogix or MicroLogix bus while the individual channel voltages are externally supplied, according to the required voltage types. To ensure that the module will operate, the power supply distance rating must be followed which is Eight (8). If more than 8 modules is needed by the process, install an additional I/O power supply. This module supports CompactLogix power supplies with part numbers 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4.

Optional accessories for this module are replacement terminal block of 1769-RTBN18 (1 per kit), Replacement door label with part number 1769-RL1 (2 per kit) and Replacement door with part number 1769-RD (2 per kit).
