1769-PA2 | Allen-Bradley CompactLogix Power Supply 120/240VAC Input 2A@5VDC Output
- Regular price
- $219.00
- Sale price
- $219.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-PA2
Description

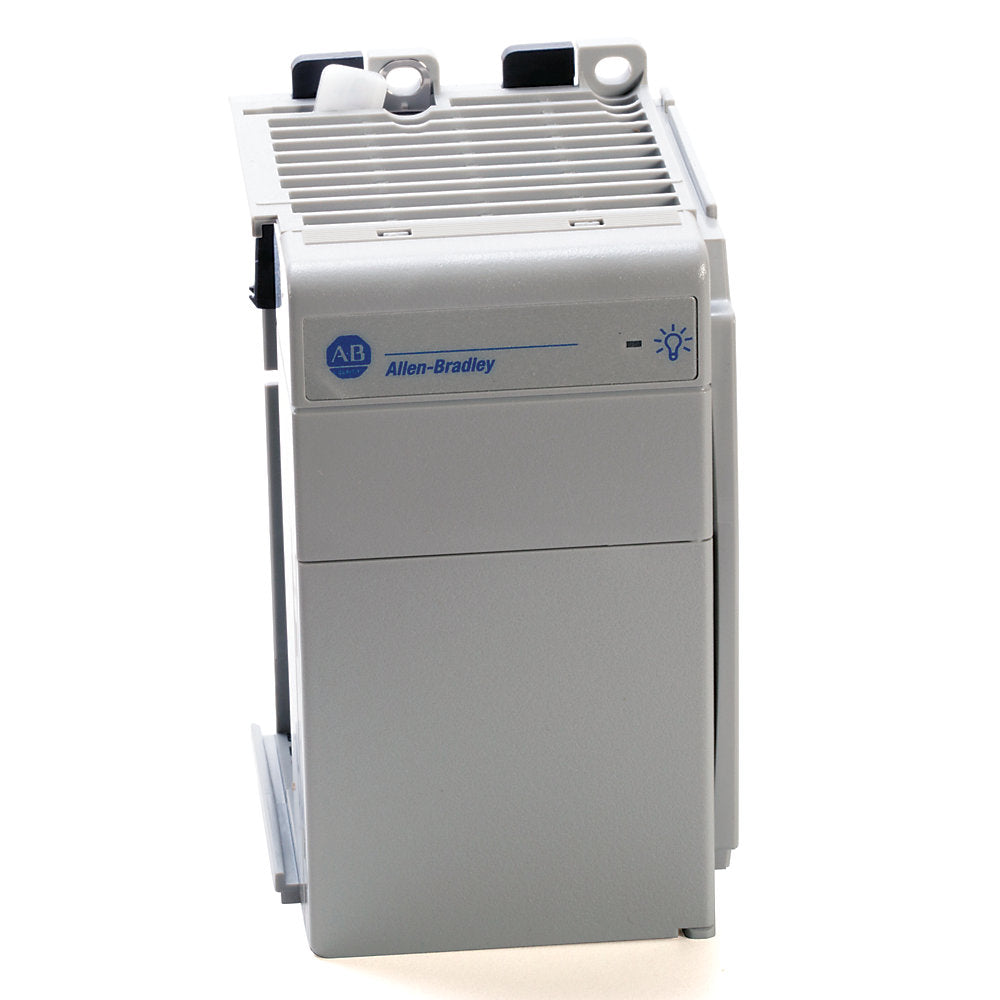

The Allen-Bradley 1769-PA2 is a 1769 CompactLogix Power Supply. This Power Supply has an input voltage range of 85 - 265VAC, operating at a nominal input of 120V/220V AC. It has a Current capacity of 2.0A at 5.0V and 0.8A at 24VDC.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1769-PA2 |
| Product Type | I/O Power Supply |
| Module Type | AC Power Supply Module |
| Product Line | CompactLogix |
| Input Voltage range | 85…265V AC |
| Input Power | 120 Volts AC |
| Input frequency range | 47…63 Hz |
| Power consumption | 100VA @ 120V AC; 130VA @ 240V AC |
| Power supply distance rating | 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Power dissipation | 8 W @ 60 °C (140 °F) |
| Current capacity @ 5V DC | 2.0 A |
| Enclosure Type Rating | None (Open Style) |
| Wire Type | Copper-90 degrees |
| Current capacity @ 24V DC | 0.8 A |
| Solid Wire Size | 22 to 14 AWG |
| Inrush current, max | 25 A @ 132V AC |
| Fuse type | Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
| Stranded Wire Size | 22 to 16 AWG |
| Wire size | 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Certifications | c-UL-us; CE; C-Tick |
Information About 1769-PA2
The Allen-Bradley 1769-PA2 is a CompactLogix I/O power supply. This power supply is primarily used as I/O power supply, installed in a CompactLogix assembly or to an expansion I/O bank. It provides power to the modules attached on both direction of the module installed to a system in consideration to the required Power Supply distance rating.
When installed along a CompactLogix controller assembly, Compact I/O modules may be installed on both sides of the power supply as the power supply can supply power on both directions as well as the Power supply distance rating may also be counted in both ways. Up to Eight (8) 1769 modules may be installed on both sides of this power supply.
Required input voltage range for this power supply is 85-265VAC with frequency of 47-63 Hz. It has a current capacity of 2.0A at 5VDC and 0.8A at 24VDC. This module is equipped with an internal fuse which may be replaced with Wickmann 19195-3.15A or Littelfuse 02183.15MXP.
This power supply has a dimension of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) and an approximate weight of 525 g (1.16 lb). As standard to CompactLogix platform, this power supply module also support installation to a DIN or directly to a mounting plate.
This power supply is UL Listed for Class 1, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E10314, Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions and European Union 2004/108/EC EMC Directive compliant.
The 1769-PA2 is a 1769 CompactLogix Power supply, manufactured by Allen-Bradley. This power supply has a current capacity of 0.8A at 24 VDC.
When installing the Allen-Bradley 1769-PA2, an adjacent space of 50 millimeters must be left between it and nearby equipment in order to ventilate it properly. Also, when mounting the power supply module, make sure that no static, UV radiation, or debris will touch the module during installation or operation. Excessive heat must be avoided since this could cause damage to the whole power supply module. When the ambient temperature is excessively high, several ventilation methods must be applied. The 1769-PA2 module is an open power supply that has no enclosure.
The Allen-Bradley 1769-PA2 power supply can also be mounted on a DIN rail. An important thing to note when installing this power supply module is that it needs to be grounded. When connecting the module, a 14 AWG wire must be used and the leads must be kept as short as possible. The recommended wire type is a copper wire with a resistance of at least 90 degrees Celsius. It is recommended to place the Allen-Bradley 1769-PA2 compact I/O expansion power supply in an enclosure that protects the module from a corrosive atmosphere or contaminants that might come from the open air. If it is used in an enclosure, the use of air conditioners is recommended to combat the heat around the enclosure. The Allen-Bradley 1769-PA2 compact I/O expansion power supply comes with a fuse that offers protection against abnormal line transients and short-circuit currents. The 1769-PA2 module runs on 120 to 240 Volts of AC input power at a frequency between 47 and 63 Hertz.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
