1769-PB2 | Allen-Bradley CompactLogix Power Supply 24VDC Input, 2A@5V DC Output
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

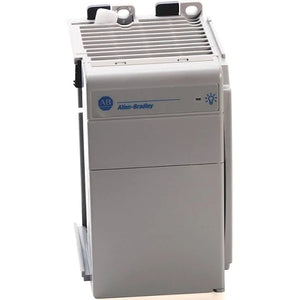

Product Description P/N: 1769-PB2
Description
The Allen-Bradley 1769-PB2 is a CompactLogix I/O Power Supply. This Power Supply has an input voltage range of 19.2-31.2V DC with Current capacity of 2.0 A @ 5VDC and 0.8A @ 24VDC. This power supply module is able to energize up to Sixteen (16) CompactLogix modules.
Technical Specifications
| Brand | Allen-Bradley |
| Series | A and B |
| Part Number | 1769-PB2 |
| Product Type | I/O Power Supply |
| Certifications | c-UL-us; CE; C-Tick |
| Wire size | 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Dimensions (HxWxD), approx. | 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) |
| Fuse type | Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
| Inrush current, max | 30 A @ 31.2V DC |
| Current capacity @ 24V DC | 0.8 A |
| Current capacity @ 5V DC | 2.0 A |
| Power consumption | 7.5 W @ 60 °C (140 °F) |
| Input Voltage range | 19.2-31.2 VDC |
| Manufacturer | Rockwell Automation |
| Power Supply Distance Rating | 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
| Product Line | CompactLogix |
| Module Type | DC Power Supply Module |
| Input Power | 24VDC |
| Enclosure Type | Open |
| Wire Type | Copper 90 degrees |
| Solid Wire Size | 22 to 14 AWG |
| Stranded Wire Size | 22 to 16 AWG |
Information About 1769-PB2
The 1769-PB2 is a CompactLogix I/O power supply. This power supply acts as an I/O power supply, which may be mounted in a CompactLogix rack or to the expansion I/O bank. This power supply is capable of providing power to both left and right side, allowing Eight (8) modules to be installed on each side for a maximum of Sixteen (16) modules, overall.
The 1769-PB2 has an input voltage rating of 19.2-31.2VDc with nominal voltage of 24VDC. Once supplied with the appropriate input voltage, the 1769-PB2 is capable of providing an output current of 2.0 A @ 5VDC and 0.8A @ 24VDC. This module is designed to withstand an inrush current of 30 A @ 31.2V DC.
The 1769-PB2 has a power consumption of 50 VA @ 24V DC and power dissipation of 7.5 W @ 60° C (140° F). It has an internally installed fuse for protection. Compatible fuse are Wickmann 19193-6.3A and Littelfuse 021706.3MXP.
The 1769-PB2 has an approximate weight of 525 g (1.16 lb) with physical measurements of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.). This I/O power supply support direct panel mounting or DIN rail mounting, following the supported mounting method of the CompactLogix platform.
When making signal wiring and connection to this I/O power supply, appropriate wire size is 14 AWG (2.5 mm2), solid copper wire with insulation rating of 90 °C (194 °F) or higher and insulation thickness of 1.2 mm (3/64 in.). It has an open-type enclosure therefore, this power supply, along the entire CompactLogix assembly must be mounted inside an enclosure that offers adequate protection against industrial elements.
This power supply module has built-in Wickmann 19193-6.3A or Littelfuse 021706.3MXP fuse. The 1769-PB2 has printed terminal identification diagrams, finger-safe covers, upper and lower panel mounting tabs, and barrier-type terminal blocks provided for secure installation and operation.
The 1769-PB2 has an output current capacity of 1 Amp on both sides of the power supply at 24 Volts DC or it can provide 2 Amps of current each at 5 Volts DC. It has a power supply distance rating of 8, allowing up to 8 I/O modules to be connected on each side of the power supply. It also has a line loss ride through a range of a minimum of 10 milliseconds and a maximum of 10 seconds.
The Allen-Bradley 1769-PB2 module has an input voltage range of 19.2 to 31.2 Volts DC, a nominal input voltage of 24 Volts DC. Its power consumption is 50 VA at 24 Volts DC while its maximum inrush current is 30 Amps at 31.2 Volts DC. It has a current capacity of 2 Amps at 5 Volts or one of 0.8 Amps at 24 Volts and a power dissipation of 7.5 Watts at 140 degrees Fahrenheit. The continuous isolation voltage of the 1769-PB2 is 75 Volts and the non-condensing relative humidity range is 5 to 95%. Its operating temperature range is 32 to 140 degrees Fahrenheit, and its storage temperature range is -40 to 185 degrees Fahrenheit. It can also withstand an operating vibration of 5 G at 10 to 500 Hertz, a non-operating shock of 50 G, and an operating shock of 30 G.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
