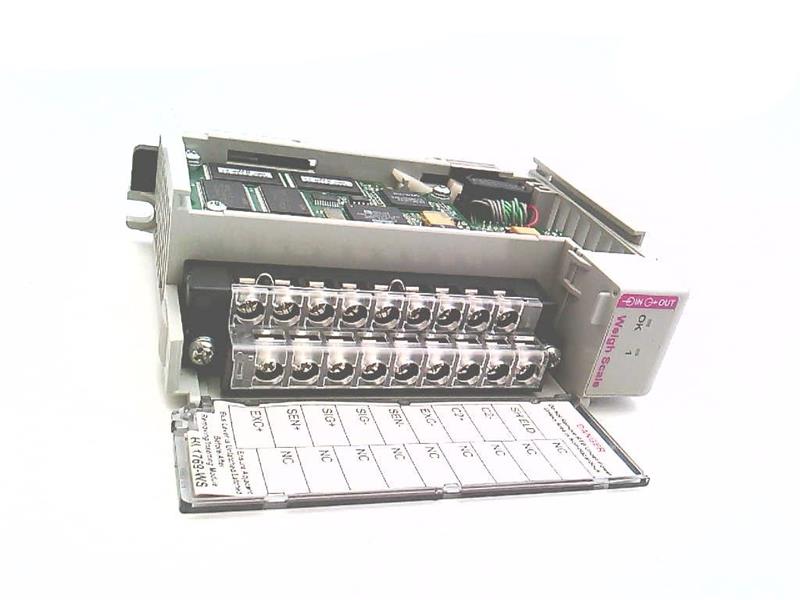

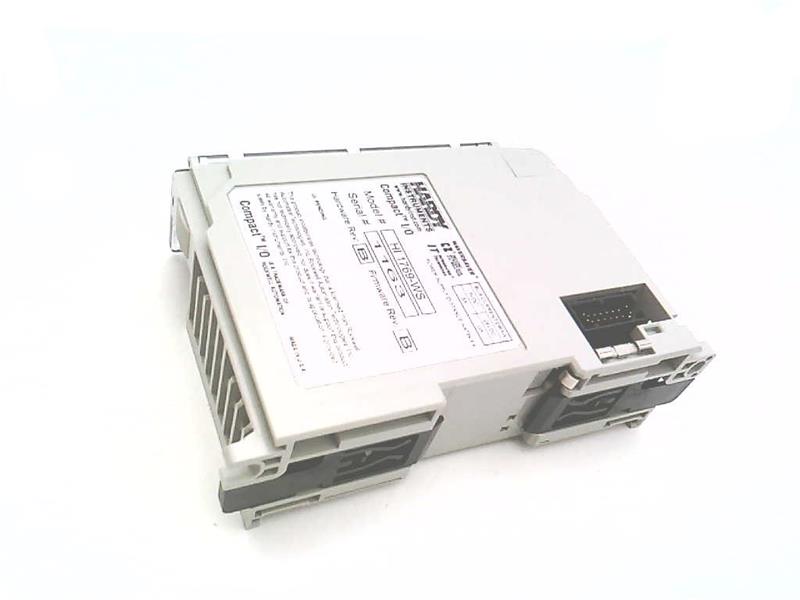

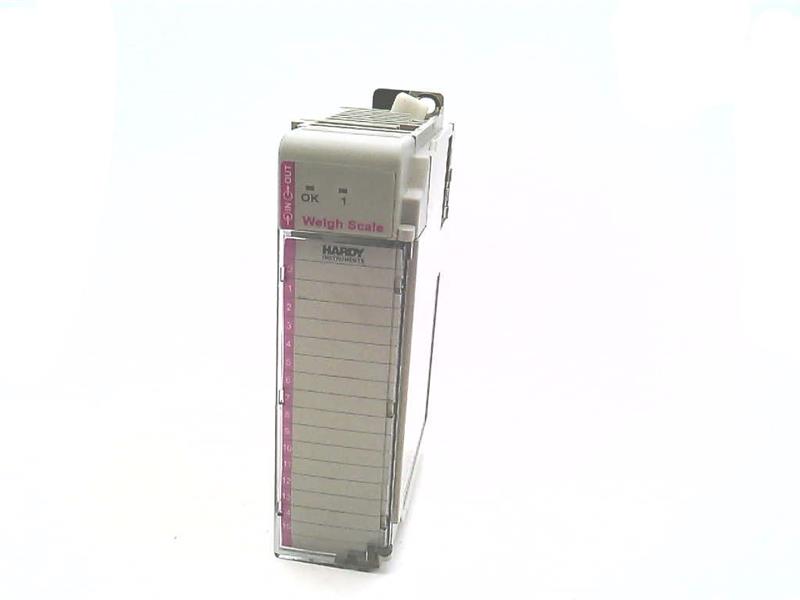

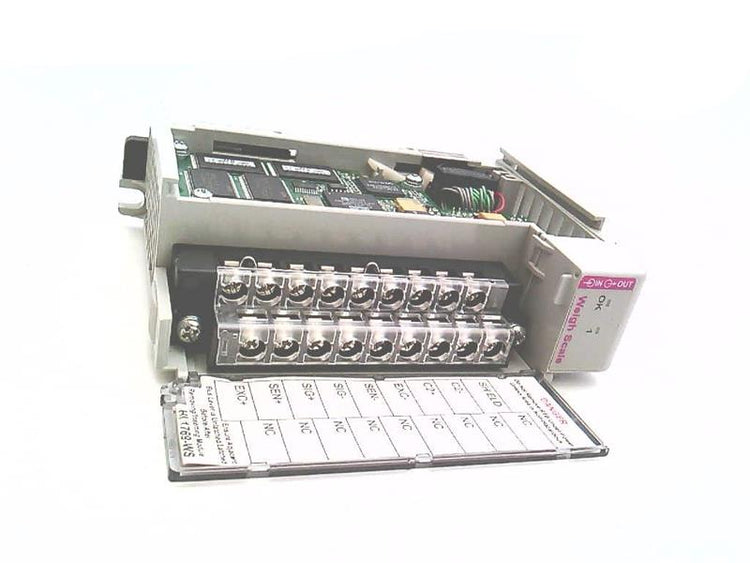

1769-WS | Hardy Instruments Weigh Scale Module
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-WS
Description
The Hardy Instruments 1769-WS Weigh Scale Module is designed for precise weight measurement and integration within CompactLogix and MicroLogix 1500 systems. It supports multiple weighing functions, real-time data processing, and seamless communication, ideal for industrial applications requiring accurate weight monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hardy Instruments |
| Category | Scales |
| Part Number | 1769-WS |
| Subcategory | Weight Indicators |
| Weight | 0.27 kgs |
| Power | Provided from the backplane of the rack: +5Vdc |
| Backplane Current | < 0.5 Amps at 5V DC |
| Inputs | Signal, -0.3mV through +15.3 mV and Sense, +5Vdc |
| Outputs | Excitation 5V DC |
| Common Mode Rejection | 100dB at or below 60 Hz (minimum) |
| Resolution | Internal, 1:8,388,608 |
| Vibration Frequency Rejection | 0.25 Hz and above in 5 selectable steps |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Storage Temperature | -40 to 65 degrees Celsius (-40 to 185 degrees Fahrenheit) |
| Humidity | 5 to 95% (non-condensing) |
| Conversion Rate | 100 updates per second |
Information About 1769-WS
The Hardy Instruments 1769-WS Weigh Scale Module is a high-performance device designed for integration with CompactLogix and MicroLogix 1500 PLCs. It delivers accurate weight measurements with advanced features that cater to various industrial weighing applications. The module supports up to four load cells or scales, allowing multiple weighing points within a single system.
Key Features:
- High Accuracy: Delivers precise weight readings, ensuring reliable performance for critical processes.
- Multiple Scale Support: Connects to up to four individual load cells or scales for versatile weighing applications.
- Advanced Filtering: Includes advanced noise filtering capabilities to maintain consistent readings in dynamic environments.
- Tare and Zero Functions: Built-in tare and zeroing functions simplify operation and improve efficiency.
- Integrated Communication: Provides seamless communication with CompactLogix and MicroLogix 1500 controllers.
- Real-Time Monitoring: Enables continuous weight monitoring and fast response for automated systems.
- Compact Design: Fits directly into 1769 system configurations, optimizing space and integration effort.
Ideal for batching, blending, and filling applications, the Hardy 1769-WS module offers dependable performance and flexible functionality for process control and industrial automation.
