1771-ASB | Allen-Bradley Universal Remote I/O Adapter Module for PLC-2/3/5
1771-ASB | Allen-Bradley Universal Remote I/O Adapter Module for PLC-2/3/5
1771-ASB | Allen-Bradley Universal Remote I/O Adapter Module for PLC-2/3/5
    1771-ASB | Allen-Bradley Universal Remote I/O Adapter Module for PLC-2/3/5
1771-ASB | Allen-Bradley Universal Remote I/O Adapter Module for PLC-2/3/5

1771-ASB | Allen-Bradley Universal Remote I/O Adapter Module for PLC-2/3/5

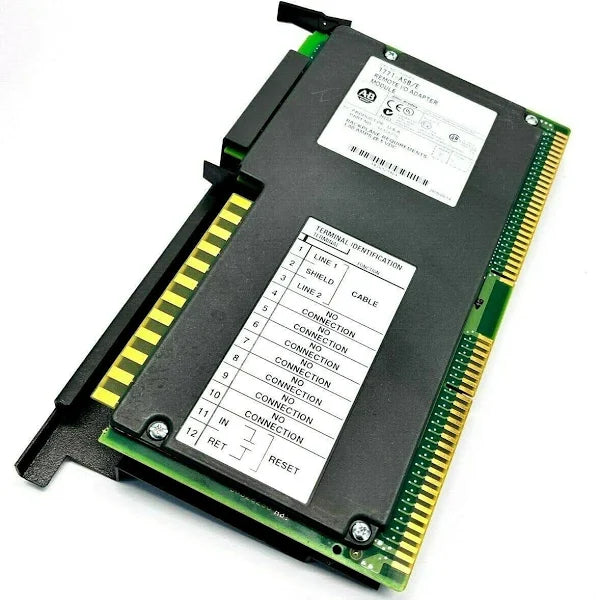

Part #: 1771-ASB Manufactured by: Allen-Bradley
Regular price
$412.00
Sale price
$412.00
Regular price
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley PLC 5 I/O Adapter Module, Universal Remote I/O Adapter with 57.6 kbit/s, 115 kbit/s, 230 kbit/s rate of comm...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1771-ASB
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1771-ASB

Description / Specifications

Description

The Allen-Bradley 1771-ASB is a PLC 5 Remote I/O (RIO) adapter hardware which serves as interface between RIO modules and controllers. It supports data transmission speed 57.6 kbps, 115 kbps, 230 kbps.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1771-ASB
Module Type I/O Adapter Module
Product Family SLC 500
Port Universal Remote I/O Adapter
Product Type RIO Adapter Module
Rate of Communication 57.6 kbit/second, 115 kbit/second, 230 kbit/second
Connectors Wiring Arm 1771-WB
Communication Port Remote I/O (RIO)
Backplane Current (at 5 Volts) 1.0 Amps
Operating Temperature 32°F to 140°F (0°C to 60°C)
Cable Belden 9463
Mounting In-Chassis
Storage Temperature -40°F to +185°F (-40°C to +85°C)
Backplane Current 1 mA at 5V dc
Lower Connector Keying 16 to 18
Noise Immunity NEMA standard ICS 2-230
Humidity 5% to 95% non-condensing
Number of connections 32
Certifications UL Listed, CSA certified, Class I, Division 2 Groups A, B, C, D, CE compliant for all applicable directives, Marine Certified, C-tick marked for all applicable acts
Dimensions 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 millimeters)





Information About 1771-ASB

The Allen-Bradley 1771-ASB is a PLC 5 Universal Remote I/O Adapter Module. It interfaces with I/O modules in a 1771 I/O chassis with a Remote I/O scanner port for a processor over an I/O link. Using it instead of direct wiring reduces startup, installation, and maintenance costs by the I/O being closer to the actuators and sensors. It is compatible with 32 I/O-adapter devices via the I/O link and it uses 82 Ohm or 150 Ohm terminating resistor.

The 1771-ASB module has a communication rate of 57.6 Kbps, 115 Kbps, and 230 Kbps and it weighs 1.9 pounds. It has a backplane current load of 1 A at 5 Volts DC and a maximum power dissipation of 5.2W. It requires a remote I/O adapter port for connection. For installation, it must be mounted in the left-most slot of the 1771 chassis with the I/O modules controlled by a PLC 5 processor. For wiring, the 1770-CD Belden 9463 or equivalent cable must be used. The 1771-ASB module has Active, Adapter Fault, and I/O Rack fault diagnostic Indicators, 2 switch assemblies, and a field wiring arm. It provides faster data transmission and backplane scanning up to 2500 feet at 230.4K Baud. It supports serial communication and reads/writes data in parallel form. It supports 4, 8, 12, 16, or 32-slot I/O chassis and 1 and 2-slot I/O addressing. The 1771-ASB improves scan time and I/O image space savings by scanning all slots except the last 4. It eases troubleshooting with its enhanced diagnostics features.

The 1771-ASB is an Allen-Bradley hardware that belongs to the PLC 5 product family of Programmable Logic Controllers (PLC). This electronic hardware is a remote I/O adapter that is used to interface the to Remote I/O (RIO) network. In actual, this RIO adapter responds to the request of the Remote I/O (RIO) scanner in the network. This adapter supports transmission of data at cable length and speeds of 10,000 feet at 57.6K baud, faster backplane scanning and data transmission up 2500 feet at 230.4K baud.

RIO Communication is physically implemented following daisy-chain topology. In this topology, the start and end points must be installed with a terminating resistor to close the network segment. The same is true for this protocol, either an 82 Ohm or 150 Ohm resistor may be used to terminate the segment. 150 Ohm is used for older configuration while 82 Ohms is used in enhanced RIO network versions. Belden 9463 or more popularly known as Belden Blue Hose cable is used for Remote I/O protocol.

This module is provided with status indicators such as ACTIVE, ADAPTER FAULT, and I/O RACK FAULT. For the Active status, the LED light should be Green to indicate normal operation. When an adapter fault is experienced, Red light illuminates while for Rack Fault, RED led activates.

This module receives/sends data from/to the I/O scanner in serial form, reads/writes data from/to the input modules in parallel form, reads/writes data from/to the output modules in parallel form.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1771-ASB is a PLC 5 Remote I/O (RIO) adapter hardware which serves as interface between RIO modules and controllers. It supports data transmission speed 57.6 kbps, 115 kbps, 230 kbps.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1771-ASB
Module Type I/O Adapter Module
Product Family SLC 500
Port Universal Remote I/O Adapter
Product Type RIO Adapter Module
Rate of Communication 57.6 kbit/second, 115 kbit/second, 230 kbit/second
Connectors Wiring Arm 1771-WB
Communication Port Remote I/O (RIO)
Backplane Current (at 5 Volts) 1.0 Amps
Operating Temperature 32°F to 140°F (0°C to 60°C)
Cable Belden 9463
Mounting In-Chassis
Storage Temperature -40°F to +185°F (-40°C to +85°C)
Backplane Current 1 mA at 5V dc
Lower Connector Keying 16 to 18
Noise Immunity NEMA standard ICS 2-230
Humidity 5% to 95% non-condensing
Number of connections 32
Certifications UL Listed, CSA certified, Class I, Division 2 Groups A, B, C, D, CE compliant for all applicable directives, Marine Certified, C-tick marked for all applicable acts
Dimensions 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 millimeters)





Information About 1771-ASB

The Allen-Bradley 1771-ASB is a PLC 5 Universal Remote I/O Adapter Module. It interfaces with I/O modules in a 1771 I/O chassis with a Remote I/O scanner port for a processor over an I/O link. Using it instead of direct wiring reduces startup, installation, and maintenance costs by the I/O being closer to the actuators and sensors. It is compatible with 32 I/O-adapter devices via the I/O link and it uses 82 Ohm or 150 Ohm terminating resistor.

The 1771-ASB module has a communication rate of 57.6 Kbps, 115 Kbps, and 230 Kbps and it weighs 1.9 pounds. It has a backplane current load of 1 A at 5 Volts DC and a maximum power dissipation of 5.2W. It requires a remote I/O adapter port for connection. For installation, it must be mounted in the left-most slot of the 1771 chassis with the I/O modules controlled by a PLC 5 processor. For wiring, the 1770-CD Belden 9463 or equivalent cable must be used. The 1771-ASB module has Active, Adapter Fault, and I/O Rack fault diagnostic Indicators, 2 switch assemblies, and a field wiring arm. It provides faster data transmission and backplane scanning up to 2500 feet at 230.4K Baud. It supports serial communication and reads/writes data in parallel form. It supports 4, 8, 12, 16, or 32-slot I/O chassis and 1 and 2-slot I/O addressing. The 1771-ASB improves scan time and I/O image space savings by scanning all slots except the last 4. It eases troubleshooting with its enhanced diagnostics features.

The 1771-ASB is an Allen-Bradley hardware that belongs to the PLC 5 product family of Programmable Logic Controllers (PLC). This electronic hardware is a remote I/O adapter that is used to interface the to Remote I/O (RIO) network. In actual, this RIO adapter responds to the request of the Remote I/O (RIO) scanner in the network. This adapter supports transmission of data at cable length and speeds of 10,000 feet at 57.6K baud, faster backplane scanning and data transmission up 2500 feet at 230.4K baud.

RIO Communication is physically implemented following daisy-chain topology. In this topology, the start and end points must be installed with a terminating resistor to close the network segment. The same is true for this protocol, either an 82 Ohm or 150 Ohm resistor may be used to terminate the segment. 150 Ohm is used for older configuration while 82 Ohms is used in enhanced RIO network versions. Belden 9463 or more popularly known as Belden Blue Hose cable is used for Remote I/O protocol.

This module is provided with status indicators such as ACTIVE, ADAPTER FAULT, and I/O RACK FAULT. For the Active status, the LED light should be Green to indicate normal operation. When an adapter fault is experienced, Red light illuminates while for Rack Fault, RED led activates.

This module receives/sends data from/to the I/O scanner in serial form, reads/writes data from/to the input modules in parallel form, reads/writes data from/to the output modules in parallel form.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
