Part #: 1771-IAD Manufactured by: Allen-Bradley
Regular price
$157.00
Sale price
$157.00
Regular price
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1771-IAD is a PLC-5 Digital Input Module with 16 input channels compatible with 120V AC/DC. As part of S...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1771-IAD
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1771-IAD

Description / Specifications

Description

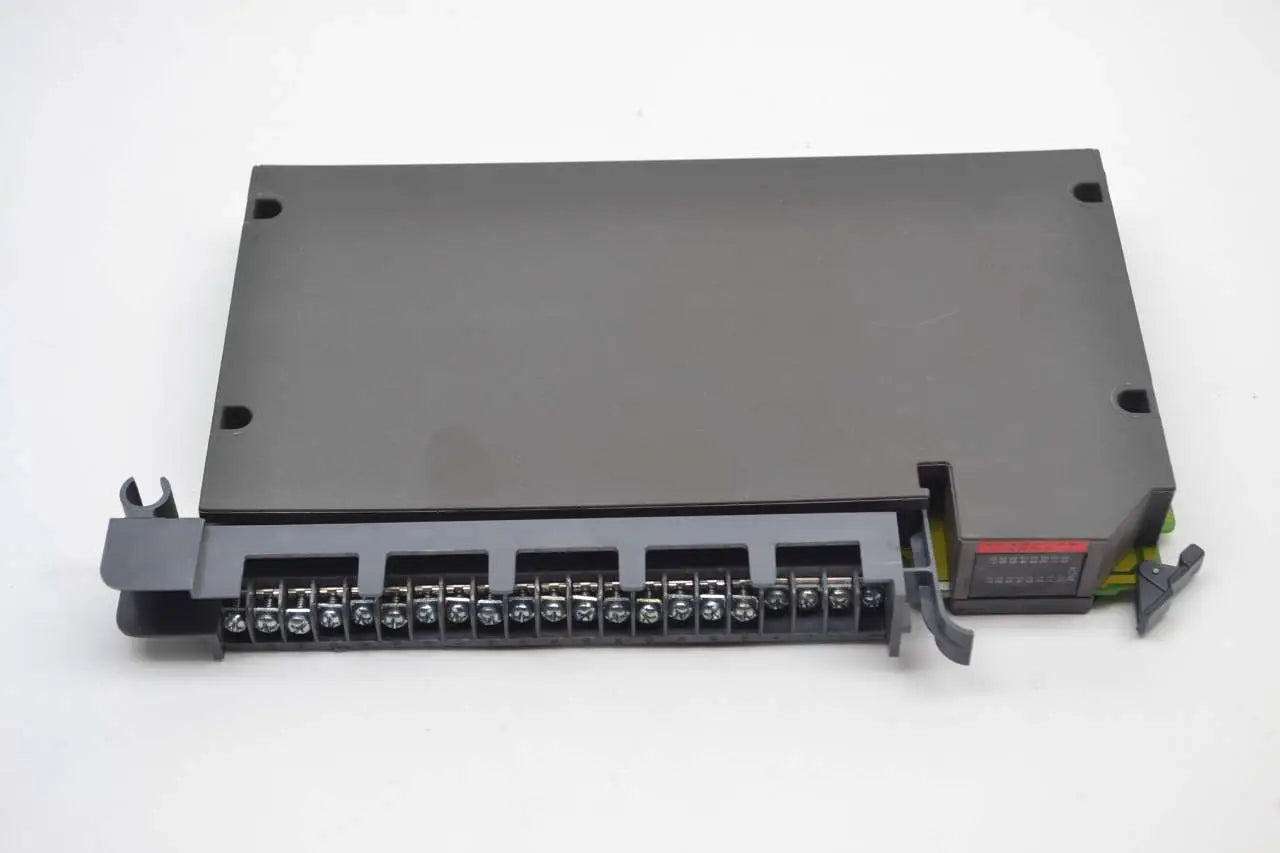

The Allen-Bradley 1771-IAD is a discrete input module. This module is part of the 1771 product bulletin. It features Sixteen (16) input channels compatible for 120VAC / 125VDC input voltage. It is compatible for installation in 1771-A1B, A2B, A3B, A3B1, A4B, 1771-AM1 and AM2 chassis.
