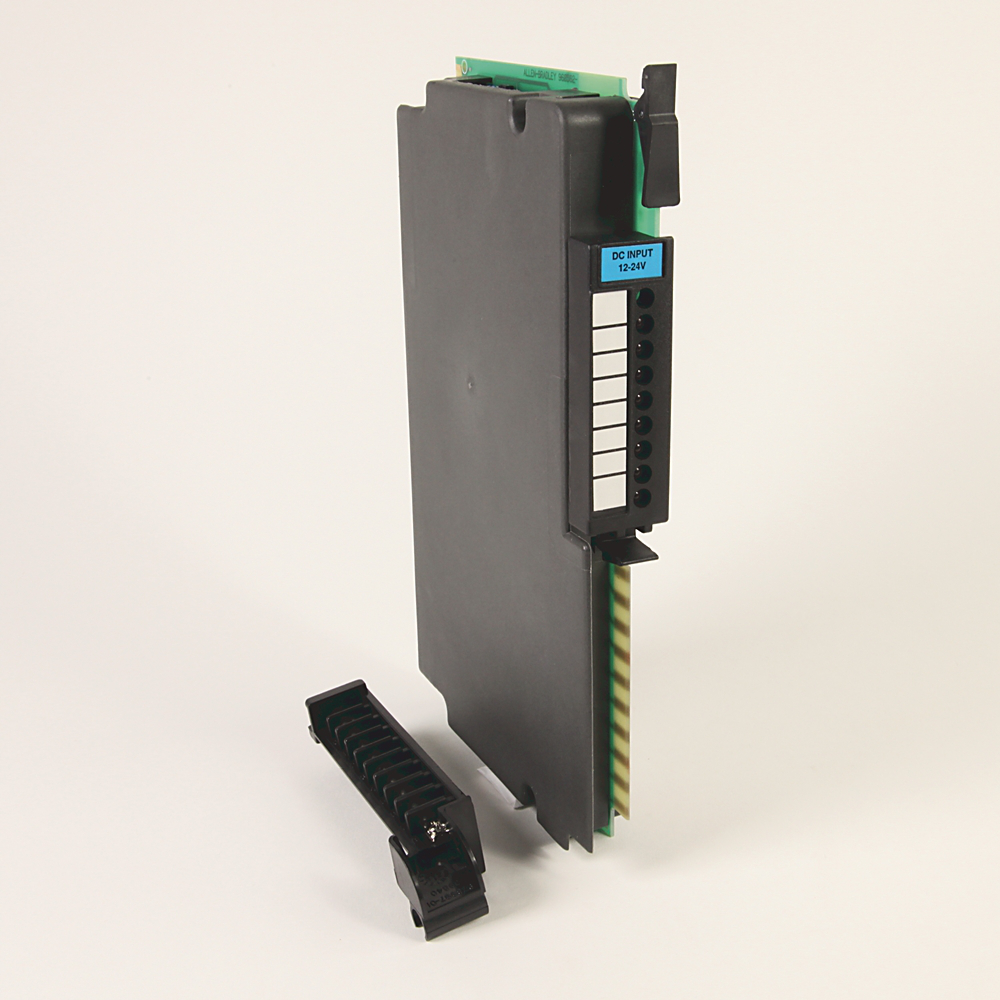

1771-IB | Allen Bradley Digital Input Module
- Regular price
- $272.00
- Sale price
- $272.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1771-IB
Description
The Allen-Bradley 1771-IB is a Digital Input Module designed for PLC-5 systems, featuring 16 inputs with a 10-30V DC voltage range. It provides reliable signal monitoring for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs/Machine Control |
| Part Number | 1771-IB |
| Subcategory |
PLC Module/Rack
|
| Weight | 0.79 lbs |
| Number of Inputs | 8 |
| Voltage Category | 10-60 Volts DC, Sink (Source Load) |
| DC Operating Voltage | 10-27 Volts |
| Backplane Current | 74 Miliamperes |
| Max DC Off-State Current | 3.0 Miliamperes |
| Wiring Arm | 1771-WN |
| Typical AC Signal Delay (Off) | 20 (+/- 15) ms |
| Power Dissipation | 5.7 Watts (max.), 0.4 Watts (min.) |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
Information About 1771-IB
The Allen-Bradley 1771-IB is a Digital Input Module designed for PLC-5 systems, offering dependable performance for monitoring DC input signals in industrial automation applications.
Key Features:
- Model: 1771-IB
- Type: Digital Input Module
- Manufacturer: Allen-Bradley
- Inputs: 16 DC inputs
- Voltage Range: 10-30V DC
- Input Current: 5mA at 24V DC
- Response Time:
- ON: 8ms
- OFF: 8ms
- Backplane Current: 80mA at 5V DC
- Indicators: LED indicators for each input point for easy diagnostics
- Compatibility: Designed for use with 1771 I/O chassis in PLC-5 systems
- Isolation Voltage: 1500V AC (rms) between input terminals and system
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: Complies with global standards, including CE and UL
Applications:
- Signal Monitoring: Detects and processes DC input signals from sensors and switches
- Industrial Automation: Ideal for use in PLC-5-based control systems for manufacturing and process automation
- Machine Control: Monitors discrete input signals for machine operations
The Allen-Bradley 1771-IB Digital Input Module is a reliable and robust solution for integrating DC input signals into PLC-5 systems, ensuring efficient control and monitoring in industrial environments.
