1771-ID16 | Allen-Bradley PLC-5 Isolated Digital Input Module, 16-Point, 120V AC/DC
- Regular price
- $177.65
- Sale price
- $177.65
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1771-ID16
Description

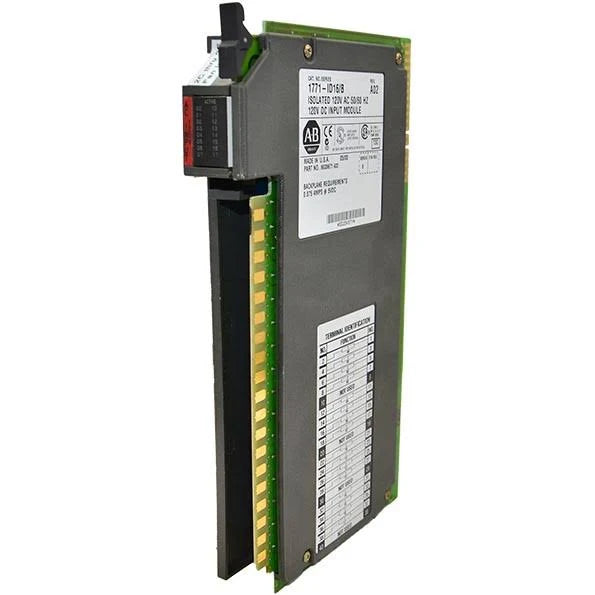

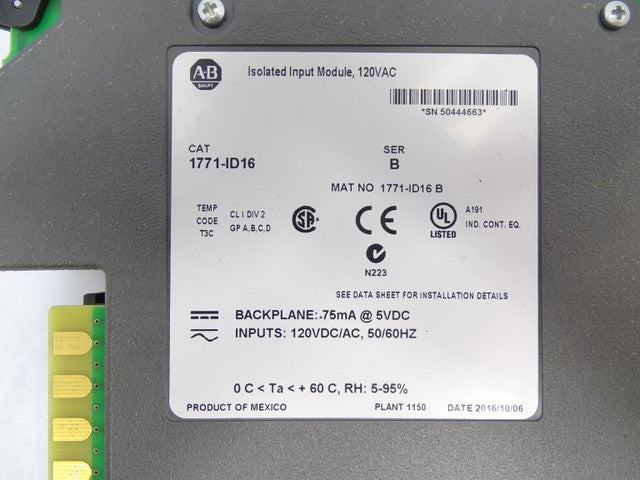

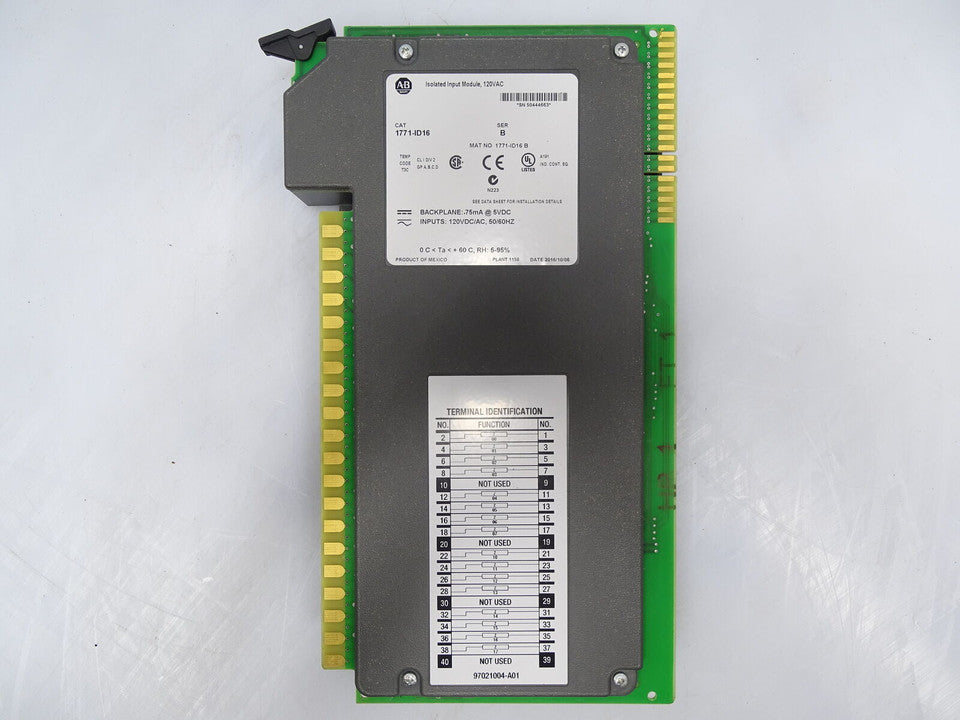

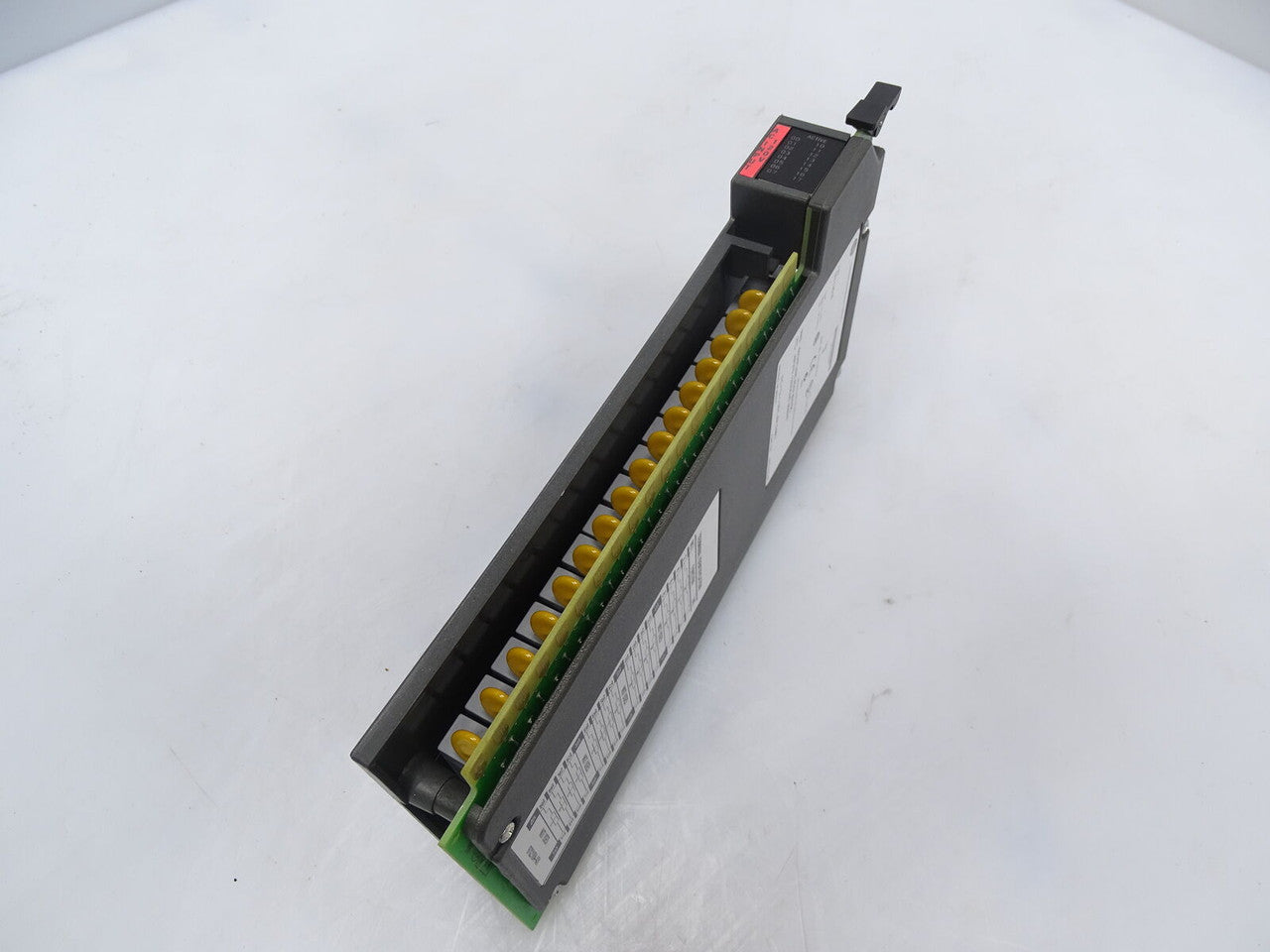

The Allen-Bradley 1771-ID16 is a 16-channel isolated digital input module for PLC-5 systems, designed to accept 120V AC/DC signals from field devices. It provides noise-filtered, reliable ON/OFF signal detection for machine control, safety-related operations, and industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 1771-ID16 |
| Subcategory | Digital Input Modules |
| Series | PLC-5 / 1771 I/O |
| Module Type | Isolated AC/DC Digital Input |
| Number of Inputs | 16 channels |
| Voltage Category | 120V AC/DC |
| AC Operating Voltage | 77–138 VAC |
| DC Operating Voltage | 105–138 VDC |
| Input Type | Isolated ON/OFF inputs |
| Backplane Current | 75 mA |
| Max AC Off-State Current | 4.0 mA |
| Max DC Off-State Current | 1.8 mA |
| Typical AC Delay (ON) | 1 ms |
| Typical AC Delay (OFF) | 9 or 18 ms |
| Typical DC Delay (ON) | 1 ms |
| Typical DC Delay (OFF) | 9 ms |
| Input Filtering | Factory-set 9 ms |
| Wiring Arm | 1771-WN |
| Mounting | 1771 Universal I/O chassis |
| Connection Type | Screw terminals (via wiring arm) |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Standards | C-TICK, CE, CSA, Marine, UL |
| Dimensions | 3.5 × 6.5 × 2.0 in (89 × 165 × 51 mm) |
| Applications | Safety interfaces, limit switches, pushbuttons, pilot lights |
| Amperage Rating | 6 mA input current |
| Type | Isolated AC/DC input |
| Weight | 2.3 lb |
Information About 1771-ID16
The 1771-ID16 is part of Rockwell Automation’s 1771 Universal I/O family and is designed to interface discrete AC/DC field devices with PLC-5 controllers. It provides 16 individually isolated input channels, ensuring electrical separation between incoming signals to enhance safety and noise immunity in multi-phase or high-noise environments. The module features built-in filtering to suppress contact bounce and transient spikes, with a 9 ms factory-set filter suitable for most industrial applications. It installs in standard 1771 chassis such as the 1771-A1B or 1771-A4B and uses the 1771-WN wiring arm for quick field wiring and easy RIUP (Removal and Insertion Under Power). Designed for long-term reliability, the 1771-ID16 supports high switching frequencies and is commonly used with limit switches, float switches, selector switches, annunciators, and similar ON/OFF devices.
Key Features:
- 16 Isolated Inputs: Accepts sixteen 120V AC/DC signals, each electrically separated for enhanced safety and noise immunity.
- Reliable Signal Filtering: Includes factory-set 9 ms filtering to suppress noise, contact bounce, and transient disturbances.
- Fast Response Times: Provides typical 1 ms ON delays and 9–18 ms OFF delays depending on AC or DC input.
- PLC-5 System Compatibility: Fits all 1771-series I/O chassis and supports RIUP for maintenance without disconnecting wiring.
- Robust Field Connectivity: Uses the 1771-WN wiring arm for secure screw-terminal connections and simplified module replacement.
- Industrial-Grade Performance: Rated for 0–60 °C operation, meeting global compliance standards including UL, CE, CSA, and Marine.
- Broad Application Range: Suitable for safety functions, machine controls, pilot devices, limit switches, and annunciator panels.
- Durable Construction: Built to handle millions of switching operations in harsh industrial environments.
The 1771-ID16 delivers the reliability and precision required for accurate digital input processing in PLC-5 automation and safety-critical control systems.
