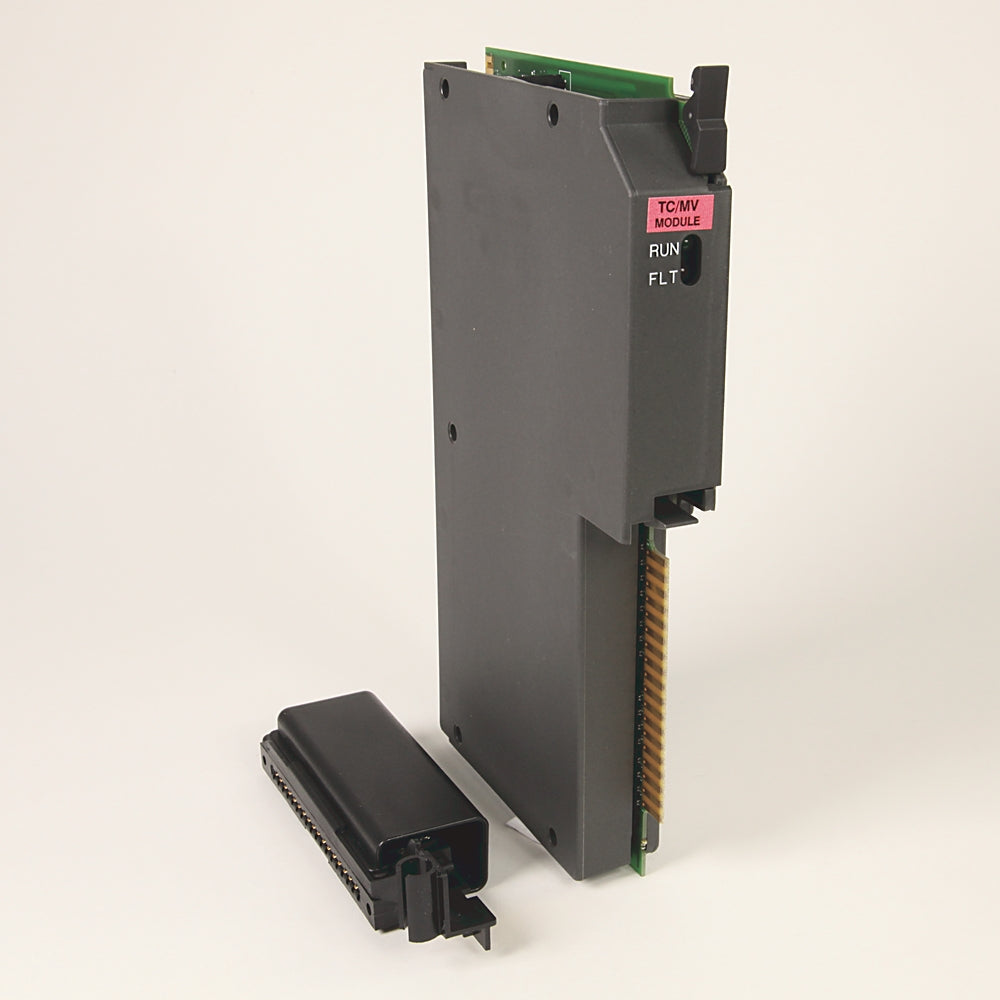

1771-IXHR | Allen Bradley PLC 5 High-Resolution TC/Milivolt Input Module
- Regular price
- $2,412.00
- Sale price
- $2,412.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1771-IXHR
Description
The Allen-Bradley 1771-IXHR is a High-Resolution Thermocouple/Millivolt Input Module for the PLC-5 series, offering 8 floating differential inputs. It supports natural binary data format with a resolution of 15 bits + sign, providing precise temperature and millivolt measurement.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1771-IXHR |
| Subcategory | PLC Expansion Modules |
| Module Type | High-Resolution TC/Milivolt Input |
| Number of Inputs & Outputs | 8 Floating Differential |
| Data Format | Natural Binary |
| Channel Update/Resolution | 25 ms/8 channel; 15 bits + sign (1.0 Celsius/1.0 Fahrenheit/bit) |
| Voltage Range | Type B, E, J, K, R, S, T +/- 99.99 mV |
| Current Range | N/A |
| Backplane Current | 750 Miliamperes |
| Required External Power | None |
| Mounting | Rack Mountable |
Information About 1771-IXHR
The 1771-IXHR High-Resolution TC/Millivolt Input Module is designed for accurate temperature and millivolt data acquisition in Allen-Bradley PLC-5 systems. It features 8 floating differential input channels with a channel update time of 25 ms for all 8 channels. The module supports a resolution of 15 bits + sign, translating to 1.0°C or 1.0°F per bit, ensuring precise measurement. The data is provided in natural binary format for seamless integration with PLC-5 systems. With a backplane current draw of 750 mA and no need for external power, the module is both efficient and easy to implement.
Key Features:
- Inputs: 8 floating differential channels for thermocouple or millivolt signals.
- Data Format: Natural binary for easy integration with PLC-5 systems.
- Resolution: 15 bits + sign, providing 1.0°C or 1.0°F per bit.
- Channel Update: Updates all 8 channels in 25 ms for fast data processing.
- Backplane Current: Consumes 750 mA for efficient operation.
- Power Requirements: No external power needed, simplifying installation.
The Allen-Bradley 1771-IXHR module is ideal for high-accuracy temperature and millivolt measurements in industrial automation applications. Its precision and efficiency make it a reliable choice for demanding environments.
