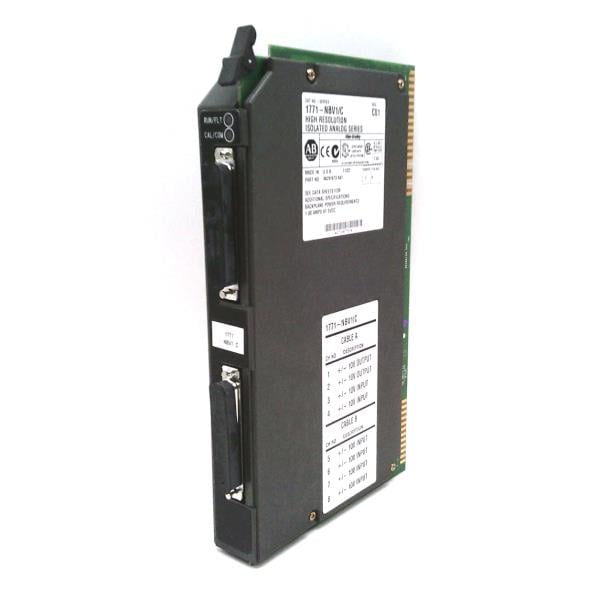

1771-NBV1 | Allen Bradley PLC-5 8P Analog Volt/Cur Combo Module High Resolution
- Regular price
- $7,324.00
- Sale price
- $7,324.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1771-NBV1
Description
The Allen-Bradley 1771-NBV1 is a high-resolution analog I/O module from the PLC-5 series and Bulletin 1771 line. With 6 voltage/current inputs and 2 voltage outputs, it provides precise analog signal processing for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1771-NBV1 |
| Subcategory | PLC Expansion Modules |
| Module Type | N-Series Analog I/O Module |
| Number of Inputs | 6 Inputs |
| Input Types | Voltage/Current |
| Input Resolution | +/- 10 Volts DC (3.3 Microvolts/bit); +/- 20 Miliamperes (1.3 Microamperes/bit) |
| Number of Outputs | 2 Outputs |
| Output Type | Voltage |
| Output Resolution | +/- 10 Volts DC (1.32 Milivolts/bit) |
| Backplane Current | 1.8 Amperes |
| Mounting | Rack Mountable |
Information About 1771-NBV1
The 1771-NBV1 is an N-series analog combination I/O module designed for use with the Allen-Bradley PLC-5 system. It supports selectable voltage and current input types, with a range of ±10V DC for voltage and ±20mA for current. The module features a high input resolution of 3.3 microvolts/bit for voltage and 1.3 microamperes/bit for current, ensuring precise data acquisition. On the output side, it offers 2 voltage outputs with a resolution of 1.32 millivolts/bit, making it ideal for applications requiring high accuracy. With a rated backplane current load of 1.8A, it integrates seamlessly into existing systems.
Key Features:
- Input Channels: 6 analog inputs supporting voltage/current signals.
- Output Channels: 2 high-resolution voltage outputs.
- Input Resolution: ±10V DC (3.3 µV/bit); ±20mA (1.3 µA/bit) for precise data processing.
- Output Resolution: ±10V DC (1.32 mV/bit) for high-accuracy output control.
- Voltage/Current Compatibility: Selectable input ranges for flexibility in signal types.
The Allen-Bradley 1771-NBV1 delivers precise analog signal handling, making it an essential component for complex industrial automation tasks. Its flexibility and high resolution ensure accurate control and monitoring in demanding environments.
