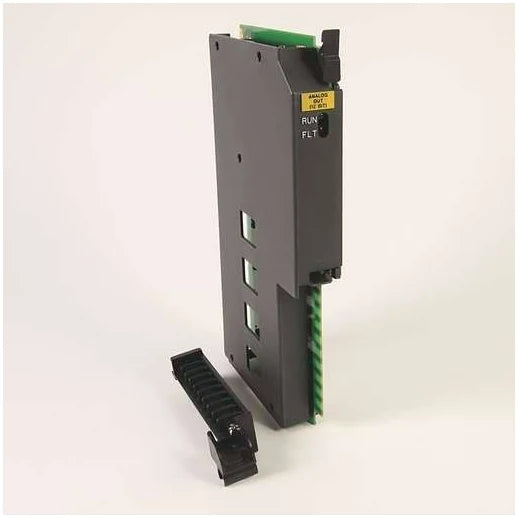

1771-OFE1 | Allen-Bradley PLC-5 Analog Voltage Output Module 4-Point ±10VDC
- Regular price
- $509.52
- Sale price
- $509.52
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1771-OFE1
Description
The Allen-Bradley 1771-OFE1 is an analog output module for the PLC-5 I/O platform. It provides four individually isolated voltage output channels with selectable ranges of ±10 VDC, 0–10 VDC, and +1 to +5 VDC. This module is commonly used in process control, motion control, and data acquisition applications where precise voltage signals are required.
Technical Specifications
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1771-OFE1 |
| Module Type | Analog output module |
| Number of Inputs & Outputs | 4 Isolated (1000 Volt) Differential |
| Series | PLC series |
| Data Format | Natural Binary or BDC Scaling to +/- 9999 |
| No. of channels | Four (4) isolated channels |
| Output signal | +/- 10 VDC |
| Voltage Range | 1-5 V dc, 0-10 V dc, +/- 10 V dc |
| Output signal ranges | +1 to +5 VDC; -10 to +10 VDC and 0 to +10 VDC |
| Current Range | N/A |
| Module resolution | 12 bits |
| Accuracy | +0.1% of full scale; +1/2 Least Significant Digit (LSD) in BCD; +1/2 Least Significant Bit (LSB)in Binary mode |
| Backplane Current | 1.5 Miliamperes |
| Converter setting time | 0.8 ms |
| Required External Power | None |
| Wiring Arm | 1771-WC |
| Internal scan rate | 8.0 ms |
| Data Format | BDC or Natural Binary |
| Backplane power consumption | 1.50 Amperes |
| Typical AC Signal Delay (Off) | 45 (+/- 15) ms |
| Maximum Power dissipation | 7.9 Watts |
| Typical DC Signal Delay (Off) | 50 ms |
| Thermal Dissipation | 26.9 BTU/Hr |
Information About 1771-OFE1
The 1771-OFE1 is part of the Allen-Bradley 1771 I/O family, designed to interface PLC-5 controllers with analog control elements. It features four isolated differential outputs, each capable of delivering 12-bit resolution for accurate signal generation. The module converts digital values in either binary or BCD format into analog signals to drive actuators, valves, positioners, and recorders. It installs in a single slot of the 1771 I/O chassis and draws 1.5 A from the backplane at 5 VDC, eliminating the need for an external power supply. With a maximum power dissipation of 7.9 W and thermal dissipation of 26.9 BTU/hr, it is built for continuous operation in demanding environments. Diagnostic features include startup self-check, fault indication LEDs, and overload protection on each output. The 1771-OFE1 is essential in automation systems where precise control and reliable data output are required.
Key Features:
- Design: Single-slot analog output module with four isolated differential channels.
- Output Ranges: Selectable voltage outputs of ±10 VDC, 0–10 VDC, and +1 to +5 VDC.
- Resolution: 12-bit digital-to-analog conversion for precise signal control.
- Accuracy: ±0.1% of full scale with ±½ LSB (binary) or ±½ LSD (BCD).
- Performance: Converter settling time of 0.8 ms; channel update time 1.6 ms (binary) or 8 ms (BCD).
- Power Requirements: 1.5 A at 5 VDC backplane current; no external power needed.
- Diagnostics: Self-check at startup, fault indicator LEDs, and built-in overload protection.
- Compatibility: Works with Allen-Bradley PLC-5 processors in 1771 I/O chassis, supporting block transfer programming.
The 1771-OFE1 delivers the precision and reliability required for industrial automation, process control, and motion applications.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
