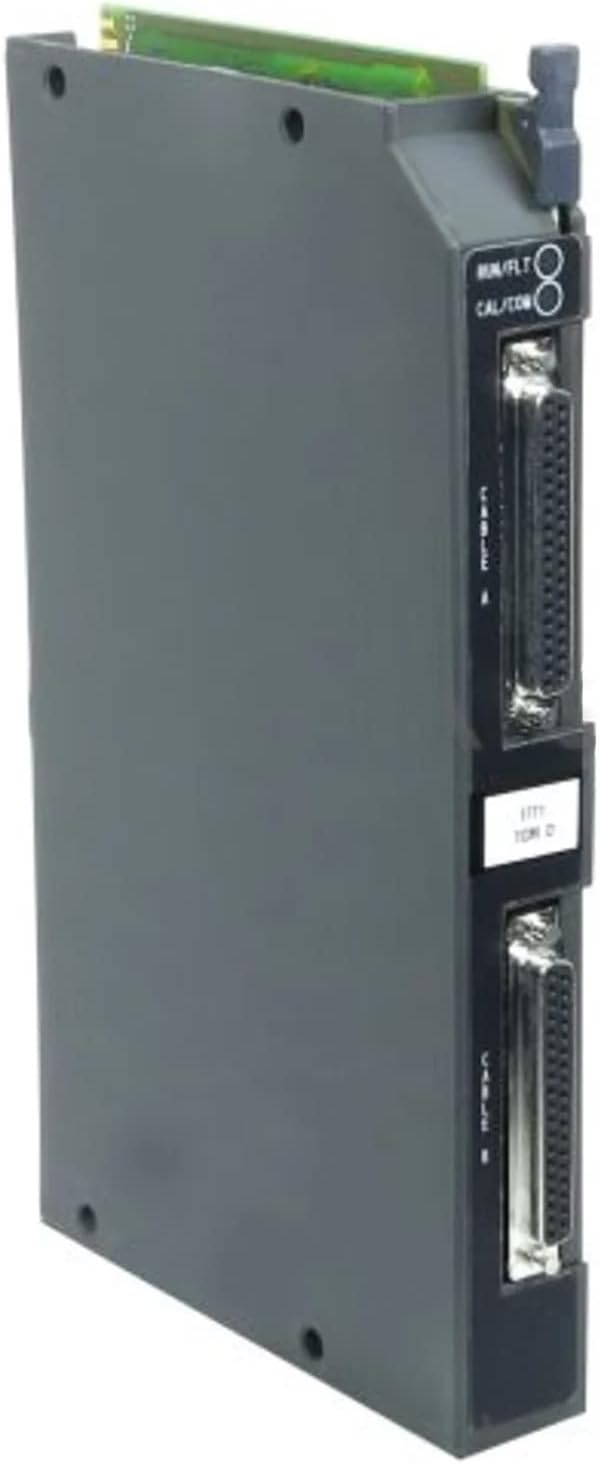

1771-TCM | Allen Bradley Temperature Control Module
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1771-TCM
Description
The Allen-Bradley 1771-TCM is a Temperature Control Module (TCM) designed for precise temperature management in industrial applications. It features 8 individually isolated PID control channels, each capable of managing temperature loops in both manual and automatic modes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1771-TCM |
| Subcategory | PLC Expansion Modules |
| Backplane Current | 1.5 Amperes |
| Data Format | Natural Binary 16-Bit Integer |
| Analog Inputs | Thermocouple |
| Input/Output Resolution | 16-Bit Resolution or 15 Bits + Sign Bit |
| Number of Inputs & Outputs | 8 |
| Compatible Sensors | B, E, J, K, R, S and T and +/- 105 mV |
| Analog Outputs | N/A |
| Dimensions | 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm) |
Information About 1771-TCM
The 1771-TCM module is part of the Allen-Bradley PLC-5 series, offering robust temperature control capabilities for industrial processes. It supports a variety of thermocouple types, including Type B, E, J, K, R, S, and T, and operates with a voltage range of +/- 105 mV. With advanced features like a 6-pole low-pass hardware filter for input filtering and isolated channels for reliable operation, it ensures high accuracy and stability in temperature control. The module requires periodic calibration every 6 months for optimal performance and is compatible with 1771-NC6 and 1771-NC15 connecting cables. Its compact design occupies a single slot in the I/O chassis.
Key Features:
- Control Channels: 8 individually isolated PID control channels.
- Sensor Compatibility: Supports Thermocouple Types B, E, J, K, R, S, and T.
- Voltage Range: Operates with +/- 105 mV input signals.
- Input Filtering: Equipped with a 6-pole low-pass hardware filter for precision.
- Calibration Interval: Recommended every 6 months, then yearly.
- Connectivity: Compatible with 1771-NC6 and 1771-NC15 cables.
- Slot Requirement: Occupies a single slot in the I/O chassis.
The Allen-Bradley 1771-TCM is a reliable solution for temperature-sensitive industrial processes, delivering precise control and adaptability.
