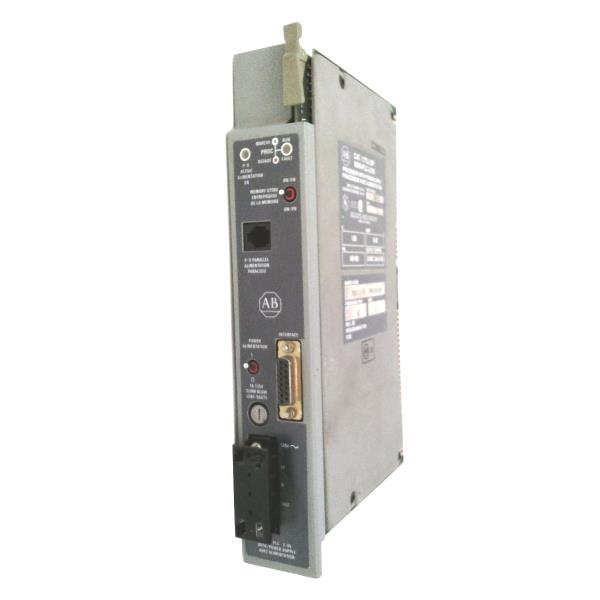

1772-LSP | Allen Bradley PLC 5 Mini Processor w/ Power Supply
- Regular price
- $547.00
- Sale price
- $547.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1772-LSP
Description
The Allen-Bradley 1772-LSP is a Mini-PLC-2/05 processor with an integrated power supply, designed for reliable control in industrial automation. It features 3K CMOS RAM, supports up to 128 I/O points, and includes advanced arithmetic and communication capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1772-LSP |
| Subcategory | PLC Expansion Modules |
| Module Type | Mini Processor w/ Power Supply |
| Words | 3 Kilowords CMOS RAM |
| Ports | 15-Pin Interface Port |
| Max Fuse Size | N/A |
| Contact Plating | Tin |
| Screw Torque | 7-9 lb*in |
| Typical Application | 10-32 Volts DC, Digital |
| Weight | 0.3 lbs (0.1 kg) |
| Dimensions | 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm) |
Information About 1772-LSP
The 1772-LSP is a compact and versatile processor module from Allen-Bradley’s Mini-PLC series, equipped with a 3K-word CMOS RAM for efficient data handling. It supports up to 128 I/O points and provides 2A for I/O modules, making it ideal for small to medium-sized automation systems. The processor features a 15-pin interface port and internal INTFC and P/S paralleling ports for seamless integration with other components. With an operational voltage range of 10-32V DC and status indicators for PROC run/fault and P/S activity, the 1772-LSP ensures dependable operation. It also includes expanded arithmetic functionalities like addition, subtraction, multiplication, division, and BCD-to-binary conversions, along with online programming and data highway capabilities.
Key Features:
- Memory: 3K CMOS RAM with up to 2944-word data table for efficient data processing.
- I/O Capacity: Supports up to 128 I/O points and 2A for I/O modules.
- Advanced Arithmetic: Includes addition, subtraction, multiplication, division, and conversion functions.
- Communication Ports: Features a 15-pin interface port and INTFC/P/S paralleling ports for connectivity.
- Signal Delays: Typical delays of 29 ± 8 ms (AC) and 30 ± 7 ms (DC) in the off-state.
- Status Indicators: PROC run/fault and P/S active LEDs for monitoring system health.
- Durable Design: Tin-plated contacts, conformal coating, and a 1A 125V slow-blow fuse for protection.
The Allen-Bradley 1772-LSP combines advanced functionality and reliable performance, making it an excellent choice for industrial applications requiring compact control solutions. Its robust design and versatile features ensure long-lasting utility.
