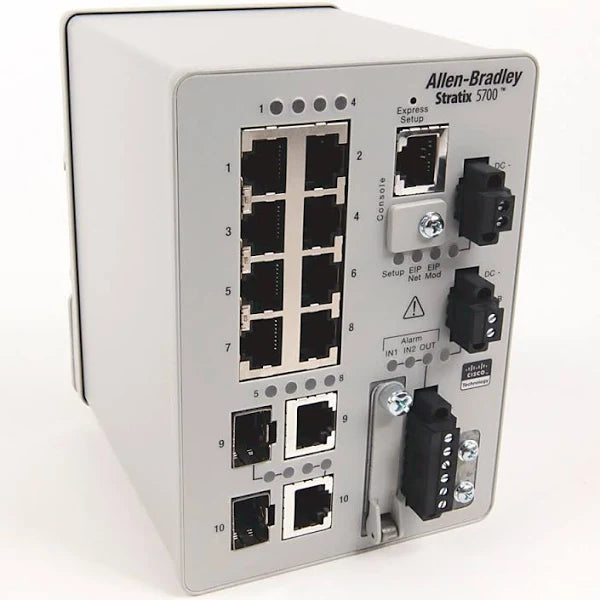

1783-BMS10CA | Allen-Bradley Stratix 5700 Ethernet Switch, 10-Port w/2-SFP
- Regular price
- $747.00
- Sale price
- $747.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1783-BMS10CA
Description
The Allen-Bradley 1783-BMS10CA is a managed Ethernet switch from the Stratix 5700 series. It features 10 ports in total, including 8 copper RJ-45 Ethernet ports and 2 combo ports that support both copper and fiber SFP connections.
Technical Specifications
| Brand | Allen-Bradley |
| Series | Stratix 5700 |
| Part Number | 1783-BMS10CA |
| Product type | Managed Ethernet switch |
| Ports | 10 |
| Copper ports | 8 |
| Combo ports | 2 |
| Input voltage | 12 to 48 Volts DC |
| Peak power consumption | 17 Watts |
| Operating temperature | -40 to 140 degrees Fahrenheit |
Information About 1783-BMS10CA
The 1783-BMS10CA belongs to the Stratix 5700 family of managed industrial Ethernet switches, designed for secure and scalable network performance. It operates with an input voltage range of 12–48V DC, consuming 12.5 W under typical load and up to 17 W maximum. The device supports both fast Ethernet through copper interfaces and flexible fiber connectivity through pluggable SFP modules such as the 1783-SFP1GLX, 1783-SFP100FX, and others. It complies with IEEE 1613 and IEC 61850-3 standards, making it suitable for demanding industrial and utility environments. The switch includes an alarm relay rated for 1A at 30V DC or 0.5A at 48V DC for monitoring critical events. Its rugged design supports an extended operating temperature range of -40 to 140 °F, while the enclosure requires at least 2 inches of clearance for proper ventilation. Compact in size (5.1 x 3.6 x 4.59 in.), it integrates seamlessly into control panels and supports memory expansion with the 1784-SD1 memory card.
Key Features:
- Port Configuration: 10 total ports with 8 copper RJ-45 and 2 combo (RJ-45 or SFP fiber) ports.
- Power Requirements: Operates on 12–48V DC with typical consumption of 12.5 W and peak at 17 W.
- Fiber Support: Compatible with multiple SFP modules, including both 100 Mbps and Gigabit transceivers.
- Alarm Relay: Provides monitoring outputs rated at 1A (30V DC) or 0.5A (48V DC) for system alerts.
- Standards Compliance: Meets IEEE 1613 and IEC 61850-3 for industrial and utility-grade networking.
- Operating Range: Withstands harsh conditions with an operating temperature of -40 to 140 °F.
- Installation: Compact, open-style enclosure with dimensions of 5.1 x 3.6 x 4.59 inches; requires 2-inch clearance for airflow.
- Expandability: Supports the 1784-SD1 memory card for configuration and log storage.
The 1783-BMS10CA delivers the robust performance, flexibility, and reliability required for managed industrial Ethernet networking.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
