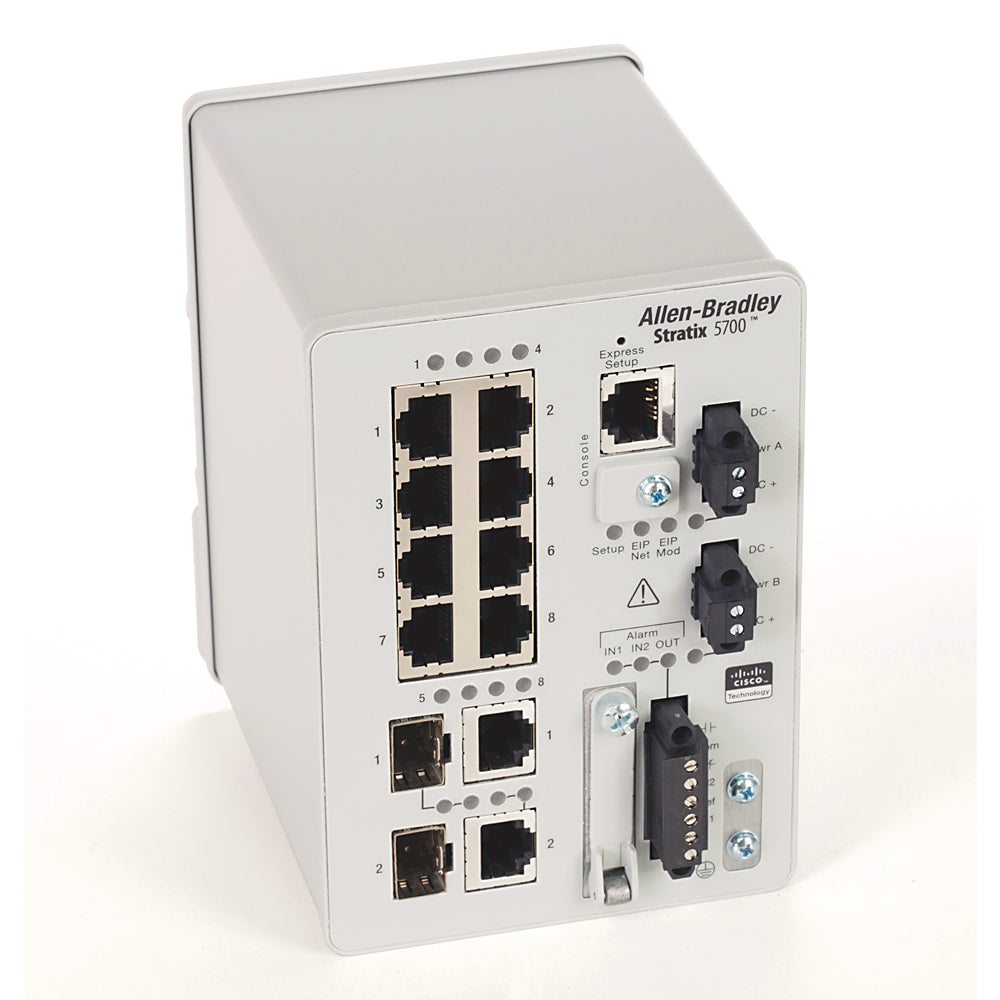

1783-BMS10CGA | Allen-Bradley Stratix 5700 Ethernet Switch, 10-Port w/2-SFP
- Regular price
- $1,667.00
- Sale price
- $1,667.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1783-BMS10CGA
Description
The product code 1783-BMS10CGA is used for an Ethernet switch from the Stratix 5700 series by Allen-Bradley/Rockwell Automation. The device has a total of 10 ports, including 8 RJ45 ports and 2 combo ports.
Technical Specifications
| Brand | Allen-Bradley |
| Series | Stratix 5700 |
| Part Number | 1783-BMS10CGA |
| Total Ports | 10 Ports |
| RJ45 Ports | 8 Fast Ports |
| Combo Ports | 2 Gigabit Ports |
| Power Consumption | 12.5 Watts at 24 Volts DC |
| Isolation Voltage | 50 Volts (Continuous) |
| Enclosure Type | Open |
| Operating Temperature | -40 to 60 degrees Celsius (-40 to 140 degrees Fahrenheit) |
| Storage Temperature | -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) |
Information About 1783-BMS10CGA
The catalog number 1783-BMS10CGA is reserved for an Allen-Bradley/Rockwell Automation industrial Ethernet switch that operates at a high level. This compact Ethernet switch features a total of 10 ports that can be used for various applications. The ports include 8 fast RJ45 Ethernet ports and 2 Gigabit combo Ethernet ports. The 1783-BMS10CGA Ethernet switch is part of the Stratix 5700 Ethernet switch series. The power requirements of this switch include 0.5 to 2 Amps of current at a voltage range of 12 to 48 Volts DC. The power consumption rating of the switch is 9.5 Watts at 24 Volts DC and at a temperature of 40 degrees Celsius (104 degrees Fahrenheit). In addition to that, the isolation voltage rating of the 1783-BMS10CGA switch is 50 Volts (continuous) and it features a basic type of insulation.
The Allen-Bradley/Rockwell Automation 1783-BMS10CGA Stratix 5700 series Ethernet switch requires a 4-square-millimeter ground connection option with stranded copper wire and it supports a memory card with the product code 1784-SD1. The weight of the switch is 1.25 kilograms or 2.75 pounds and the enclosure of the switch is open. Additionally, the 1783-BMS10CGA Ethernet switch carries a T4 temperature code according to both the IEC and North American standards. The drive does not provide isolation between individual Ethernet ports or between the console port and system. The supported SFP modules are modules from the Allen-Bradley 1783 series with suffixes of -SFP100FX, -SFP1GSX, -SFP100LX, and -SFP1GLX. The torque rating of the 1783-BMS10CGA switch is 0.23 N-m or 2 pounds on an inch for the power and alarm connections and 0.96 N-m or 8.5 pounds on an inch for the ground terminals.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
