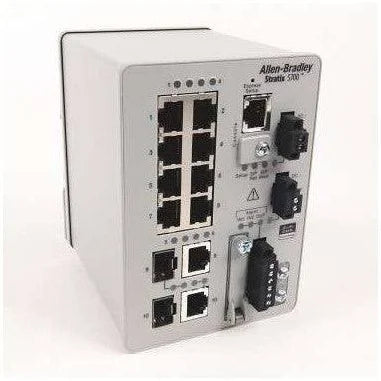

1783-BMS10CGL | Allen-Bradley Stratix 5700 Ethernet Switch, 10-Port w/2-SFP
- Regular price
- $1,539.00
- Sale price
- $1,539.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1783-BMS10CGL
Description
The Allen-Bradley 1783-BMS10CGL is a Stratix® 5700 managed industrial Ethernet switch designed for robust network performance in automation environments. It features 10 ports, combining 10/100 Mbps copper interfaces with Gigabit combo ports to support flexible topology design. This switch is ideal for machine-level networking, segmented control systems and EtherNet/IP architectures that require high reliability and managed security.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Ethernet Switches |
| Part Number | 1783-BMS10CGL |
| Subcategory | Stratix® 5700 |
| Type | 10-Port Managed Switch |
| Ports | 8 × 10/100 Mbps RJ45 + 2 × 10/100/1000 Mbps combo (RJ45/SFP) |
| Mounting Type | DIN Rail (Top Hat) |
| Input Voltage | 12–48 VDC |
| Power Consumption | Up to 17 W |
| Alarm Relay Rating | 1 A @ 30 VDC / 0.5 A @ 48 VDC |
| Network Features | DLR, NAT, VLAN, ACLs |
| Software Platform | Cisco IOS (Lite) |
| Enclosure Rating | IP30, open-style |
| Operating Temperature | –40…140 °F |
| Standards | C-TICK, CE, cUL, UL, KC, Marine |
| Special Functions | Logix integration, SD card support, advanced diagnostics |
Information About 1783-BMS10CGL
The 1783-BMS10CGL belongs to the Stratix 5700 family, a Cisco-based line of managed switches engineered specifically for industrial automation. It supports Device Level Ring (DLR) for fast fault recovery, helping maintain network uptime in control system environments. The switch includes an array of industrial diagnostics through predefined Logix tags and is compatible with FactoryTalk® View for integrated monitoring and alarming. It provides NAT (Network Address Translation) to simplify network segmentation and machine-to-plant connectivity. With ruggedized hardware, extended temperature operation and DIN-rail mounting, the unit is optimized for harsh industrial conditions. Its combo Gigabit ports allow fiber or copper expansion using SFP modules, improving deployment flexibility.
Key Features:
- 10-Port Managed Switch: Includes 8 × 10/100 Mbps copper ports and 2 × Gigabit combo ports for flexible network design.
- Device Level Ring (DLR): Enables high-speed ring redundancy for uninterrupted industrial communication.
- NAT Functionality: Simplifies machine integration by mapping local IP addresses to plant-level networks.
- Cisco IOS-Based Platform: Provides robust security tools and familiar configuration options for IT and OT personnel.
- Integrated Diagnostics: Predefined Logix tags and FactoryTalk View faceplates streamline system monitoring.
- Alarm Relay Output: Supports relay alarms for network fault indication in control panels.
- DIN-Rail Mounting: Compact IP30 enclosure designed for easy installation in industrial cabinets.
- Wide Temperature Range: Operates from –40 to 140 °F for demanding and high-vibration environments.
- Optional SD Card Support: Facilitates fast device replacement and configuration recovery.
- Enhanced Security: Features access control lists and filtering options to restrict unauthorized traffic.
The 1783-BMS10CGL provides the intelligent management, rugged performance and network flexibility required for modern machine- and plant-level automation.
