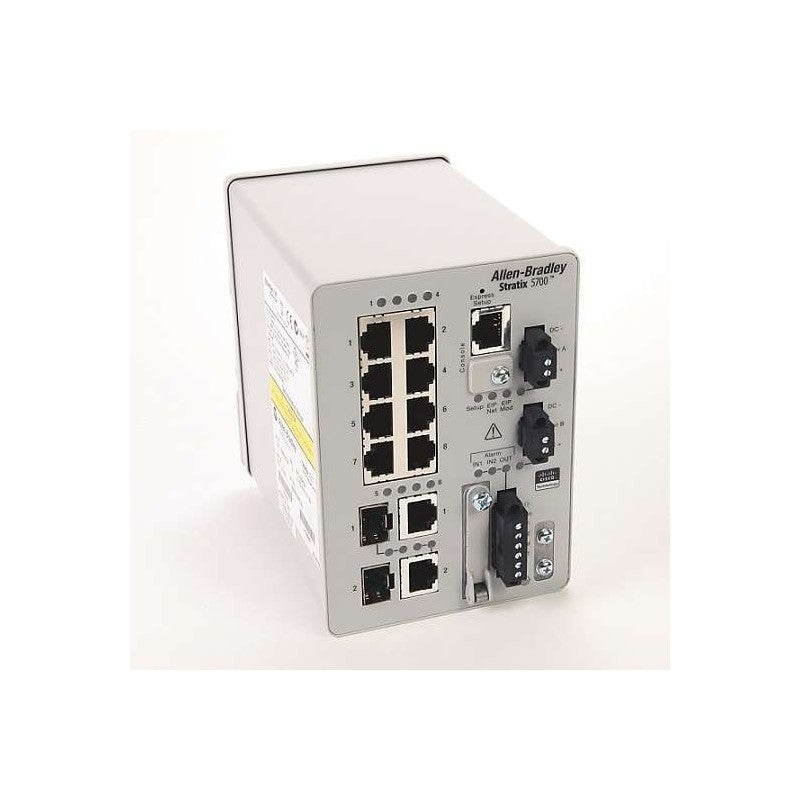

Part #: 1783-BMS10CGP Manufactured by: Allen-Bradley
$799.00
$799.00
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1783-BMS10CGP switch is Stratix 5700 industrial switch. It has 2 Gigabit Ethernet combo ports and 8 Fast...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1783-BMS10CGP
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1783-BMS10CGP

Description / Specifications

Description

The Allen-Bradley 1783-BMS10CGP is a Stratix 5700 managed Ethernet switch designed for industrial network applications. It provides 10 copper ports with advanced managed switch features for secure, reliable communication.





Technical Specifications

Brand Allen-Bradley
Series Stratix 5700
Part Number 1783-BMS10CGP
Manufacturer Rockwell Automation
Wire size, ground connection 4.0 mm2 (12 AWG) min, stranded copper wire
No. of Ports 10
No. of Fast Ethernet Ports 8
No. of Gigabit Ports 2
Power Supply 12…48V DC
Power Dissipation 20 W
Wire size, Ethernet connection RJ45 connector according to IEC 60603-7, 2- or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702
Wire size, DC power connection 0.5…0.8 mm2 (20…18 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max, 6.3 mm (0.25 in.) ±0.5 mm (0.02 in.) strip length
Wire size, alarm connection 0.5…0.8 mm2 (20…18 AWG) solid or stranded, UL/CSA- rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire, 6.3 mm (0.25 in.) ±0.5 mm (0.02 in.) strip length
Alarm Relay 1 A @ 30V DC or 0.5 A @ 48V DC
Product type Managed Ethernet switch
Ports 10
RJ45 ports 8
Combo ports 2
DLR Yes
CIP synch Yes
Input voltage 12 to 48 Volts DC





Information About 1783-BMS10CGP

The 1783-BMS10CGP is part of the Allen-Bradley Stratix 5700 family, developed in collaboration with Cisco to deliver enterprise-class networking in ruggedized, industrial-grade designs. This model includes 10 10/100/1000 Mbps copper ports and supports managed Layer 2 switching, VLAN segmentation, Quality of Service (QoS), and port security features. It integrates with Studio 5000 Logix Designer and FactoryTalk software, providing diagnostics and simplified network management directly from automation tools. With support for Common Industrial Protocol (CIP) and EtherNet/IP, the switch allows seamless integration into Rockwell Automation control systems. DIN rail–mounted and hardened for industrial use, the 1783-BMS10CGP ensures high network reliability and uptime in harsh automation environments.

Key Features:

  • Design: Managed Ethernet switch from the Stratix 5700 family.
  • Ports: 10 copper Gigabit ports (10/100/1000 Mbps).
  • Functionality: Layer 2 managed switch with VLAN, QoS, and port security.
  • Integration: Supports CIP and EtherNet/IP for seamless integration with Logix controllers.
  • Diagnostics: Integrated with Studio 5000 and FactoryTalk for network monitoring.
  • Reliability: Rugged industrial-grade design with extended temperature tolerance.
  • Installation: DIN rail–mounted compact form factor.
  • Application Range: Ideal for machine networks, manufacturing, and process automation.

The 1783-BMS10CGP delivers the reliability, security, and integration required for robust industrial Ethernet networks.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1783-BMS10CGP
Question: What are the port configurations and wiring requirements for the 1783-BMS10CGP?
Date Update:30/05/2025
Answer:
  • Number of Ports: 10 total
    8 Fast Ethernet RJ45 ports (copper)
    2 Gigabit combo ports (copper or fiber)
  • RJ45 Wiring: Standard 2- or 4-pair Category 5e cable (TIA 568-B.1) or Category 5 (ISO/IEC 24702).
  • DC Power Connection: 0.5–0.8 mm² (20–18 AWG) solid or stranded copper, rated at 75 °C or greater.
  • Alarm Connection: 0.5–0.8 mm² (20–18 AWG) twisted-pair AWM wire, with appropriate strip length.

This configuration provides robust connectivity and ensures compatibility with common industrial cabling standards.

Question: Can the 1783-BMS10CGP be used for both copper and fiber connections simultaneously on the combo ports?
Date Update:30/05/2025
Answer:

No, the two Gigabit combo ports on the 1783-BMS10CGP can only be used with either copper or fiber connections at one time, not both simultaneously. This design ensures that the port’s bandwidth is fully dedicated to the chosen medium, preventing signal conflicts and maintaining network reliability. Users must select the preferred connection type during installation.

Question: What are the physical characteristics of the 1783-BMS10CGP, and how does it affect installation?
Date Update:30/05/2025
Answer:
  • Enclosure: Open type
  • Weight: Approximately 1.38 kg
  • Operating Temperature: -40 to 60 °C
  • Humidity: 5 to 95% (non-condensing)
  • Shock Ratings: 30G (operating), 50G (non-operating)
  • Clearance Requirements: Minimum of 2 inches of separation on all sides to maintain ambient temperature below 60 °C.

These characteristics ensure the switch can be installed in various industrial environments, provided proper spacing and cabinet integration are maintained.

Question: How does the 1783-BMS10CGP support Ethernet networks in industrial applications?
Date Update:30/05/2025
Answer:

The 1783-BMS10CGP is a managed Ethernet switch that enables seamless integration of Ethernet-enabled devices into industrial networks. It supports multiple topologies, including Linear, Star, and Device Level Ring, to meet diverse industrial requirements. With its combination of copper and Gigabit combo ports, it ensures high-speed communication and reliable network performance in demanding environments.

Question: Is the 1783-BMS10CGP still being manufactured, and what are the recommended replacements?
Date Update:30/05/2025
Answer:

No, the 1783-BMS10CGP is marked as Discontinued, effective from September 1, 2024. Rockwell Automation has announced that it will no longer be available for sale after this date. Customers are advised to reference the recommended replacement product, the 1783-CMS10DP, for future installations or upgrades.

IQElectro is not an authorized distributor.
