1783-BMS20CGP | Allen-Bradley Stratix 5700 Ethernet Switch, 18-Port w/2-SFP
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1783-BMS20CGP
Description

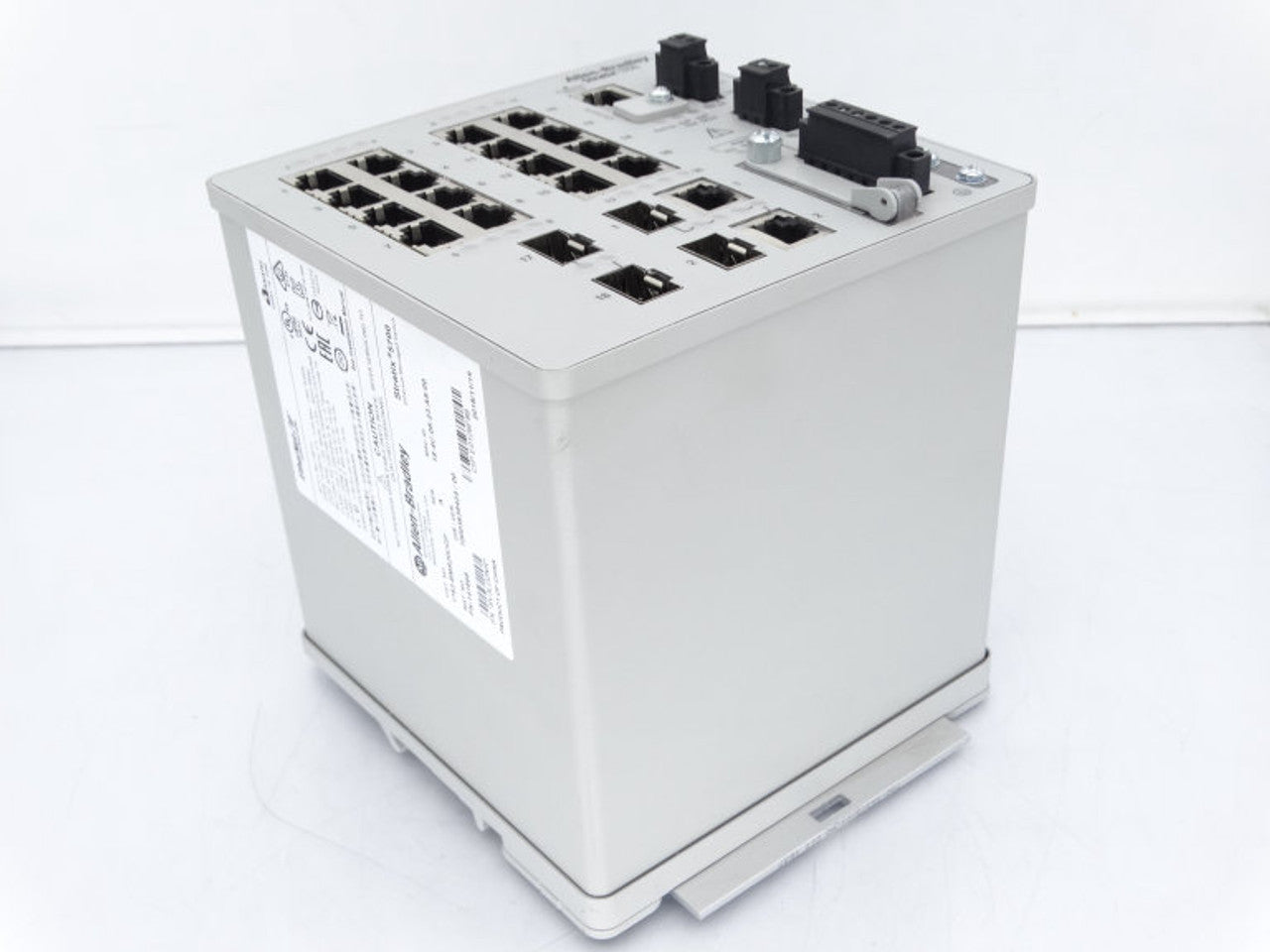

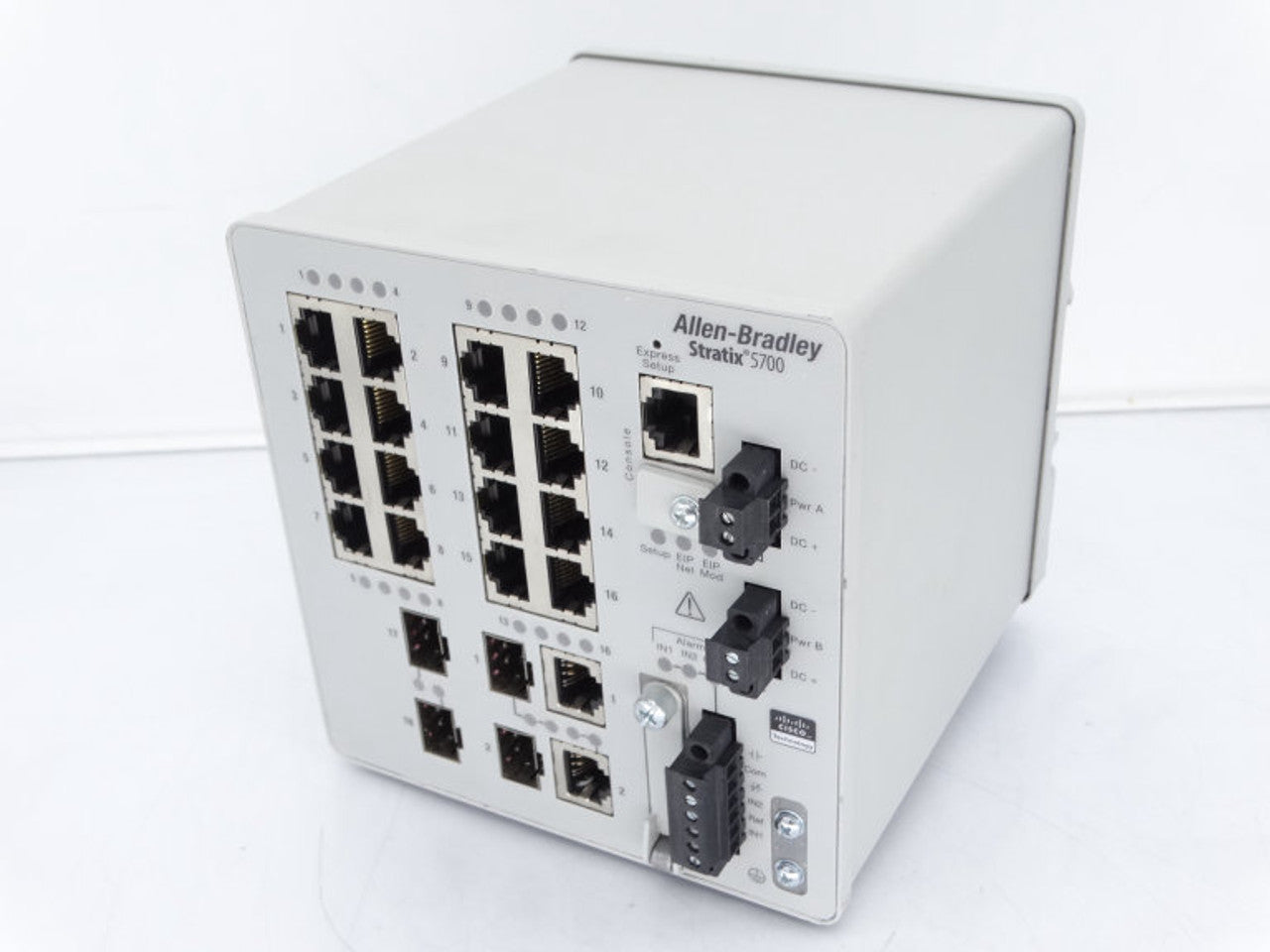

The Allen-Bradley 1783-BMS20CGP is a Stratix 5700 managed Ethernet switch designed to support industrial network segmentation, monitoring, and secure data exchange. It provides 16 Fast Ethernet copper ports, 2 combo Gigabit ports, and 2 Fast Ethernet SFP slots to accommodate a wide range of automation network architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Communication Modules |
| Part Number | 1783-BMS20CGP |
| Subcategory | Managed Ethernet Switches |
| Series | Stratix 5700 |
| Product Type | Managed Ethernet Switch |
| Total Ports | 20 |
| Copper Ports | 16 × 10/100 Mbps |
| Combo Ports | 2 × 10/100/1000 Mbps (Copper or SFP) |
| SFP Slots | 2 Fast Ethernet SFP slots |
| Management Level | Layer 2 |
| Protocol Support | EtherNet/IP, CIP Sync, IEEE 1588 PTP |
| Ring Support | Device Level Ring (DLR) |
| Firmware | Full Stratix Firmware |
| IP Rating | IP30 |
| Power Input | 24/48 VDC (12–60 VDC range) |
| Conformal Coating | Yes |
| Integration | Studio 5000 / FactoryTalk |
| Mounting Type | Panel / DIN Rail |
| Weight | 5.4 lb |
Information About 1783-BMS20CGP
The 1783-BMS20CGP is part of the Stratix 5700 series developed with Cisco technology, offering Layer 2 managed switching with VLANs, QoS, port security, and integration into EtherNet/IP networks via CIP Sync and IEEE 1588 time synchronization. It includes 20 total ports—16 copper 10/100 ports, 2 combo copper/SFP Gigabit ports, and 2 additional SFP slots—providing flexible bandwidth distribution and fiber expansion options. The switch supports Device Level Ring (DLR), operates on 24/48 VDC power with a 12–60 VDC range, and features full firmware with industrial-grade functionality. Its IP30-rated open-style design, conformal coating, and compatibility with Studio 5000 and FactoryTalk software allow it to be configured and diagnosed directly within Rockwell Automation environments.
Key Features:
- Layer 2 Managed Switching: Supports VLAN, QoS, port security, and full software configuration.
- Flexible Port Architecture: Includes 16 copper 10/100 ports, 2 combo 10/100/1000 copper or SFP ports, and 2 Fast Ethernet SFP slots.
- Advanced Synchronization: Offers CIP Sync and IEEE 1588 PTP for precise timing across industrial systems.
- High Availability Functions: Supports DLR ring topology for resilient, fault-tolerant networking.
- Industrial Firmware: Ships with full Stratix firmware enabling extended diagnostic and security features.
- Robust Construction: IP30-rated with conformal coating for resistance to industrial environmental conditions.
- Wide Power Range: Operates from 12–60 VDC with nominal 24/48 VDC support for flexible installation.
- Integration with Rockwell Tools: Compatible with Studio 5000 and FactoryTalk for centralized monitoring and configuration.
The 1783-BMS20CGP delivers the reliability and precision required for managed switching, industrial network control, and synchronized communication.
