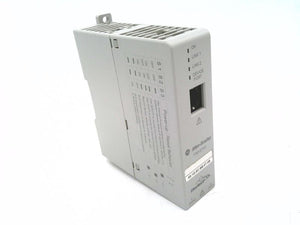

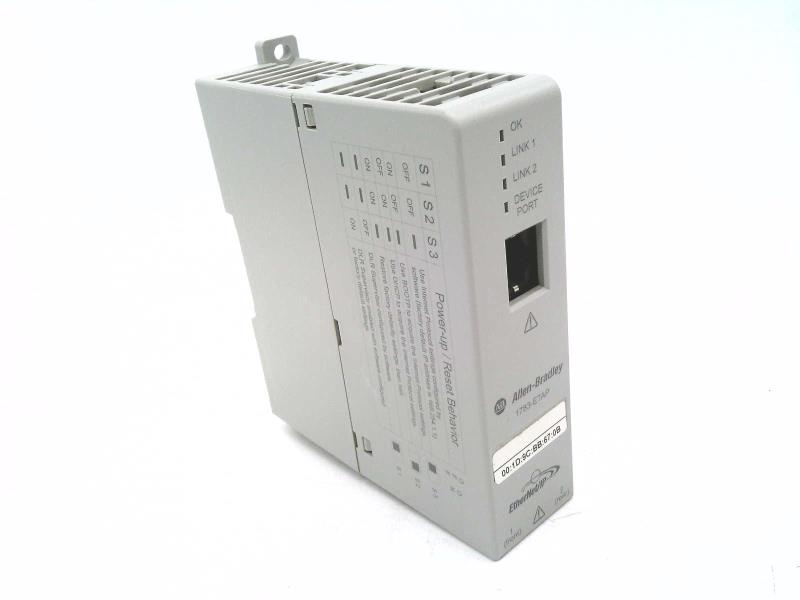

Part #: 1783-ETAP Manufactured by: Allen-Bradley
$309.00
$309.00
3 in Stock

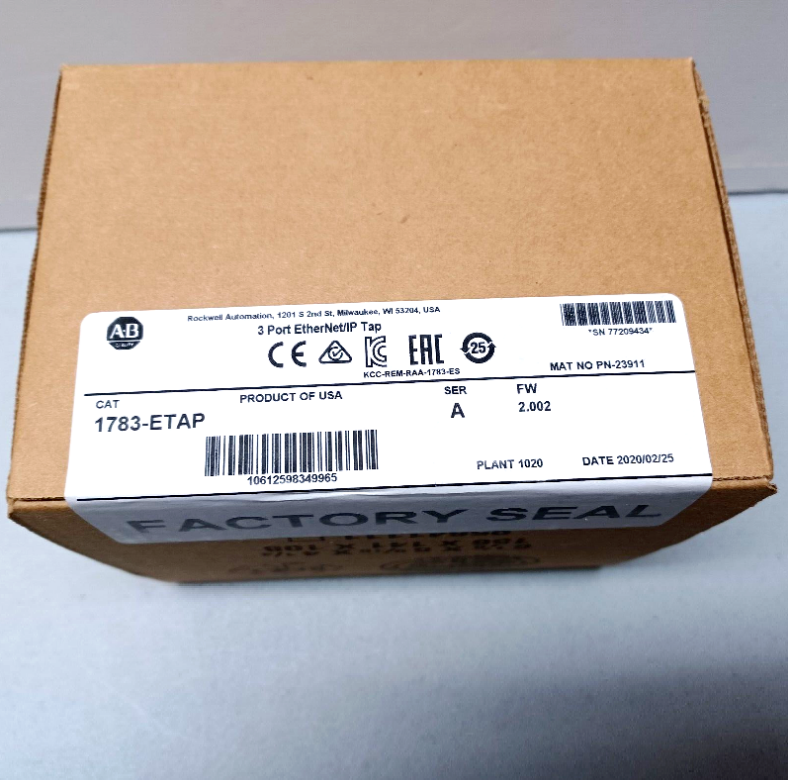

Condition: New – Open box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 1783-ETAP EtherNet/IP Tap, 3-Port 10/100 Mbps Copper full or half duplex, 24V DC Power, enable single port d...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Contact Us!

Talk to a real expert.

phone
+1 (828) 222-3490
email
sales@iqelectro.com
Mon–Sat, 7:00 AM – 12:00 PM (EST)
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1783-ETAP
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1783-ETAP

Description / Specifications

Description

The Allen-Bradley 1783-ETAP is an EtherNet/IP tap module designed for use in Device Level Ring (DLR) networks. It provides a dedicated connection point for a single device, enabling fault-tolerant ring architectures.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Series Embedded Switch
Part Number 1783-ETAP
Manufacturer Rockwell Automation
Speed 100 Mbps
Ports 2
Material Copper





Information About 1783-ETAP

The 1783-ETAP is part of the Allen-Bradley Stratix / infrastructure family of industrial networking components, developed to provide robust and reliable EtherNet/IP connectivity. This tap module supports star, linear, and ring topologies, with specific emphasis on Device Level Ring (DLR) networks, ensuring fast recovery (less than 3 ms) in case of a network break. It includes three ports: one device port and two ring ports, allowing it to connect a node such as a controller, drive, or I/O module into a resilient EtherNet/IP ring. The 1783-ETAP is DIN rail–mountable, compact, and designed for industrial environments with extended temperature tolerance. Diagnostic LEDs provide status and fault information to simplify monitoring and troubleshooting.

Key Features:

  • Design: EtherNet/IP tap module for resilient network integration.
  • Ports: 3 ports (1 device port, 2 ring ports) for single-device connection to a DLR.
  • Functionality: Enables Device Level Ring (DLR) topology with sub-3 ms recovery.
  • Compatibility: Works with Logix controllers, drives, distributed I/O, and other EtherNet/IP devices.
  • Diagnostics: Built-in LED indicators provide network and device status.
  • Installation: DIN rail–mountable, compact design for control panels.
  • Reliability: Hardened for industrial environments with wide temperature range.
  • Application Range: Ideal for packaging, material handling, and high-availability automation systems.

The 1783-ETAP delivers the connectivity, resilience, and reliability required for Device Level Ring networks in modern industrial automation.

Frequently Asked Questions about 1783-ETAP
Question: What are the key communication features of the 1783-ETAP?
Date Update:30/05/2025
Answer:

This EtherNet/IP tap supports a maximum data rate of 100 Mbps, ensuring high-speed communication for industrial automation tasks. It is designed to maintain reliable communication across various network topologies, including linear, star, and device-level ring (DLR). The tap’s efficient data handling helps reduce latency and supports real-time communication between controllers, I/O devices, and other network components.

Question: How does the 1783-ETAP integrate into a Device Level Ring (DLR) network?
Date Update:30/05/2025
Answer:

The 1783-ETAP can function as a DLR tap, connecting devices that need to be integrated into a ring topology. One of the device’s sockets must be configured as the ring supervisor to manage network redundancy and ensure continuous operation even if a network fault occurs. This configuration enhances network resilience and minimizes downtime in critical industrial environments.

Question: What are the recommended installation considerations for the 1783-ETAP?
Date Update:30/05/2025
Answer:

When installing the 1783-ETAP, it is important to ensure that the network wiring is compatible with Category 5e or higher Ethernet cabling to maintain data integrity. Proper grounding of the device using at least 4.0 mm² (12 AWG) stranded copper wire is recommended for electrical safety. Additionally, configuring the ring supervisor correctly is critical for maintaining network stability in DLR applications.

Question: What factors should be considered when configuring the 1783-ETAP in an Ethernet/IP network?
Date Update:30/05/2025
Answer:

Before configuring the device, users should evaluate the network layout to determine the optimal placement of the ring supervisor role. It is also important to confirm that the total network bandwidth meets the demands of connected devices to avoid communication bottlenecks. Finally, users should ensure that proper network segmentation and addressing are implemented to support efficient data flow and avoid conflicts.

Question: Is the 1783-ETAP still being manufactured?
Date Update:30/05/2025
Answer:

Yes, the 1783-ETAP is currently still being manufactured and remains available for purchase. Users can confidently continue to specify and implement this device in their industrial networks.
