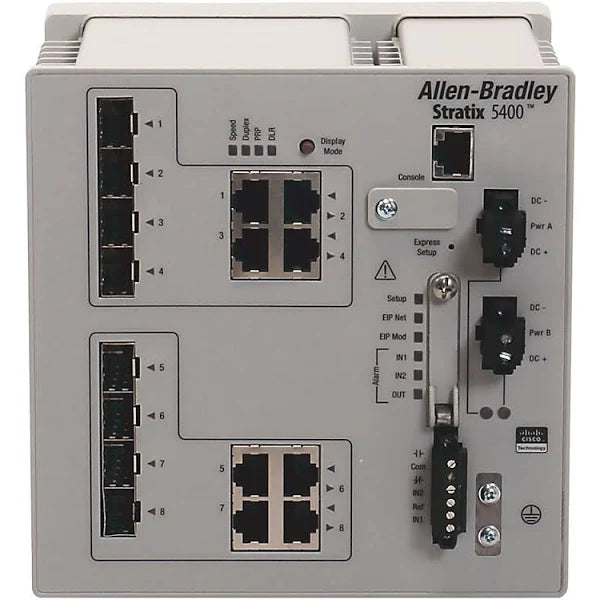

1783-HMS4C4CGN | Allen-Bradley | Switch
- Regular price
- $2,207.00
- Sale price
- $2,207.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1783-HMS4C4CGN
Description
The Allen-Bradley 1783-HMS4C4CGN Stratix 5400 is a managed Ethernet switch designed for industrial applications. It features 4 Gigabit Ethernet (GE) ports and 4 Fast Ethernet (FE) ports, providing a total of 8 combo ports. The switch is equipped with 2 power source connectors, supporting 24/48V DC power within a range of 12-60V DC. Operating with Layer 2 software, it offers essential networking capabilities for industrial environments, facilitating efficient data transmission and network management.
Technical Specifications
|
Part Number |
1783-HMS4C4CGN |
|
Manufacturer |
Allen-Bradley |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Number of Ports |
8 |
|
Type |
Combination RJ45/Mini GBIC |
|
Speed |
4 x 10/100 Mbps, 4 x 10/100/1000 Mbps |
|
Layer 2 Support |
Yes |
|
Layer 3 Support |
No |
|
Manageable |
Yes |
|
Power Dissipation |
40 W |
|
Power Consumption at 24V DC, 40 °C |
40 W |
|
Power Input at 12 - 54V DC |
4.3 A |
|
Wire Size, Alarm Connection |
0.5 mm² |
|
Wire Size, Ground Connection |
4 mm² |
|
Mounting Method |
DIN rail |
|
Ethernet |
Yes |
|
Housing Material |
Open-style |
|
Operating Temperature |
-40 °C to 70 °C |
|
Non-Operating Temperature |
-40 °C to 85 °C |
|
SD Immunity (Air Discharges) |
8 kV |
|
ESD Immunity (Contact Discharges) |
6 kV |
|
Shock (Operating) |
15 g |
|
Vibration (Operating) |
1 g |
Information About 1783-HMS4C4CGN
The Allen-Bradley 1783-HMS4C4CGN Stratix 5400 Ethernet Switch is a managed EtherNet switch designed for industrial applications. It features a combination of 4 Gigabit Ethernet (10/100/1000 Mbps) ports and 4 Fast Ethernet (10/100 Mbps) ports, offering flexibility in network configurations. The switch is equipped with 2 power source connectors, supporting 24/48V DC power within a range of 12-60V DC, ensuring reliability and adaptability in various power setups.
Operating on Layer 2 software, the 1783-HMS4C4CGN provides essential networking functionalities suitable for industrial environments. Its managed capabilities enable administrators to monitor and control network traffic efficiently.
The switch's 4 Gigabit Ethernet ports offer high-speed connectivity for data-intensive applications, while the 4 Fast Ethernet ports cater to devices with lower bandwidth requirements. This combination allows for the integration of different network devices within the same infrastructure, optimizing performance and resource allocation.
With dual power source connectors, the switch ensures redundancy and resilience in power supply, minimizing the risk of network downtime due to power failures or disruptions. The wide voltage range supported by the power connectors enhances compatibility with diverse power systems commonly found in industrial settings.
The Stratix 5400 Ethernet Switch is engineered to meet the rigorous demands of industrial environments, featuring robust construction and reliability standards. Its design prioritizes durability and longevity, capable of withstanding harsh operating conditions commonly encountered in industrial settings.
Furthermore, the switch's Layer 2 software offers essential network management features, including VLAN support, Quality of Service (QoS) prioritization, and security protocols, enabling administrators to configure and optimize network performance according to specific requirements.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
