Part #: 1783-SFP100FX Manufactured by: Allen-Bradley
$177.00
$177.00
6 in Stock

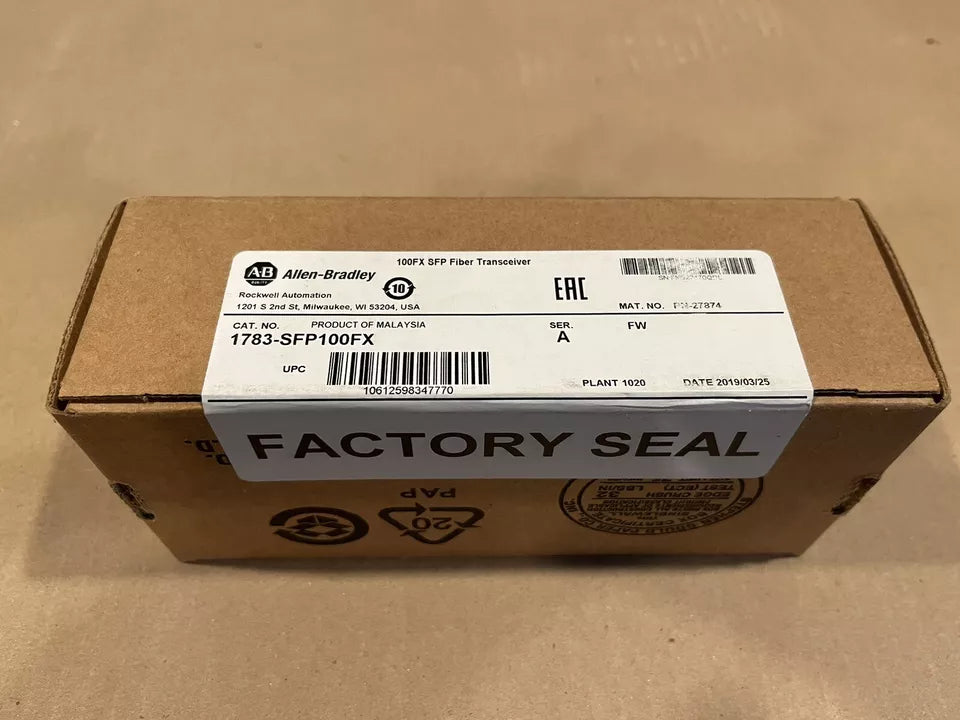

Condition: New – Open box
Shipping calculated at checkout.
Product Overview

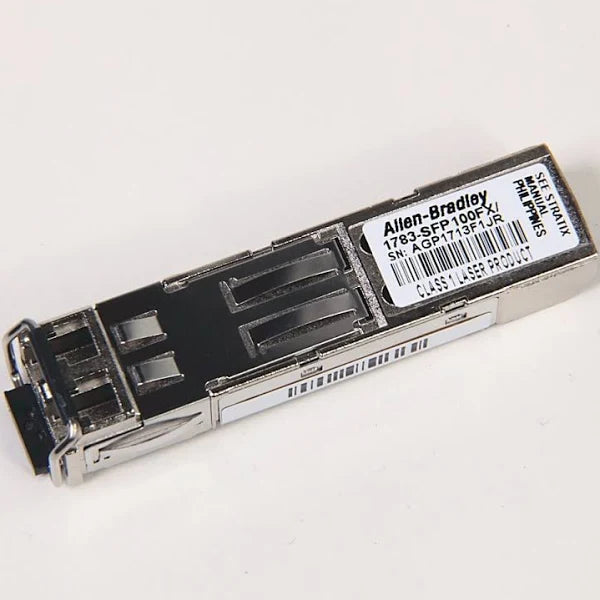

Allen-Bradley 1783-SFP100FX Stratix Fiber SFP Transceiver, 100Base-FX Multi-mode, compatible with Stratix 8000/8300
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Contact Us!

Talk to a real expert.

phone
+1 (828) 222-3490
email
sales@iqelectro.com
Mon–Sat, 7:00 AM – 12:00 PM (EST)
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1783-SFP100FX
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1783-SFP100FX

Description / Specifications

Description

The Allen-Bradley 1783-SFP100FX is a 100Base-FX small form-factor pluggable (SFP) transceiver module designed for use with Stratix and other compatible industrial Ethernet switches. It provides reliable fiber-optic communication over multi-mode fiber (MMF) up to 2 km at a wavelength of 1310 nm. This transceiver is widely used in industrial networking applications requiring robust, long-distance data transmission.





Technical Specifications

Brand Allen-Bradley
Material Fiber
Part Number 1783-SFP100FX
Memory 100 MB
Standard CCC,KC
Temperature Rating -40 to 140 degrees F
Type 100 Base-FX Multi-Mode, Surface Mount





Information About 1783-SFP100FX

The 1783-SFP100FX is part of Allen-Bradley’s Stratix network accessories, engineered for secure and efficient Ethernet connectivity. It supports a 100 Mbps data rate using the 100Base-FX standard and connects through an LC duplex connector. Operating over multi-mode fiber, it delivers distances of up to 2 km, making it suitable for plant-wide networking and process automation environments. The module complies with Multi-Source Agreement (MSA) standards, ensuring interoperability with a wide range of industrial networking devices. It also supports Digital Optical Monitoring (DOM), which provides real-time diagnostics such as temperature, optical output power, optical input power, and supply voltage. Designed for durability, it functions within an operating temperature range of 0 to 70 °C and is tested to meet or exceed OEM specifications for reliable performance in industrial conditions.

Key Features:

  • Form Factor: Compact SFP module for flexible network integration.

  • Data Rate: 100 Mbps using the 100Base-FX Ethernet standard.

  • Wavelength: Operates at 1310 nm for fiber-optic transmission.

  • Distance: Supports up to 2 km over multi-mode fiber.

  • Connector Type: LC duplex interface.

  • Diagnostics: Digital Optical Monitoring (DOM) for real-time parameter tracking.

  • Compliance: Meets MSA standards for multi-vendor compatibility.

  • Operating Range: Temperature range of 0–70 °C for industrial use.

The 1783-SFP100FX delivers reliable and flexible fiber connectivity, ensuring stable performance for industrial Ethernet networks.

Frequently Asked Questions about 1783-SFP100FX
Question: What is the main purpose of the 1783-SFP100FX transceiver?
Date Update:02/06/2025
Answer:

The 1783-SFP100FX is a Small Form-Factor Pluggable (SFP) fiber optic transceiver used for industrial Ethernet communication. It provides 100Base-FX connectivity via multimode fiber and is typically installed in Stratix switches. This module enables secure and high-speed data transmission over short-to-medium distances in industrial networks.

Question: What are the physical dimensions and weight of the 1783-SFP100FX?
Date Update:02/06/2025
Answer:

Although precise measurements are not provided in the datasheet, standard SFP modules are typically compact, around 56 x 13 x 9 mm and weigh less than 30 grams. Its small size allows for easy installation in high-density switch environments. It fits standard SFP ports without requiring extra hardware.

Question: What is the wavelength used by the 1783-SFP100FX for communication?
Date Update:02/06/2025
Answer:

The transceiver operates at a wavelength of 1310 nm. This is standard for 100Base-FX multimode communication. It ensures compatibility with existing industrial fiber optic infrastructure.

Question: What fiber type is supported by the 1783-SFP100FX module?
Date Update:02/06/2025
Answer:

The module supports multimode fiber (MMF) connections. It is optimized for data transmission over short to moderate distances up to 2 km. MMF ensures reliable performance with cost-effective cabling in industrial environments.

Question: Is the 1783-SFP100FX still being manufactured?
Date Update:02/06/2025
Answer:

Yes, the 1783-SFP100FX is actively manufactured and supported by Rockwell Automation. It is part of the Stratix product line and remains compatible with current Stratix managed switches. It continues to be used in modern industrial network installations.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
