Part #: 1783-US16T Manufactured by: Allen-Bradley
Regular price
$772.00
Sale price
$772.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley 1783-US16T Stratix 2000 Unmanaged EtherNet Switch, Ports per Module: 16; Copper Ports: 16 x 10/100 Full/Half...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1783-US16T
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
    1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
    1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
    1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
    1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports
1783-US16T | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports

Product Description P/N: 1783-US16T

Description / Specifications

Description

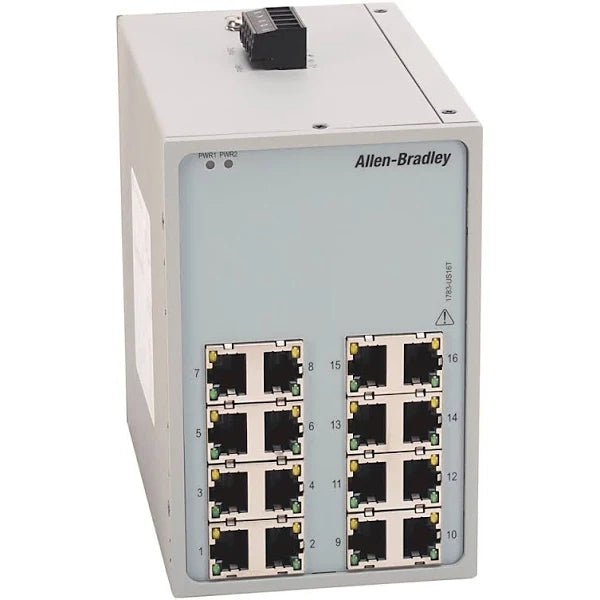

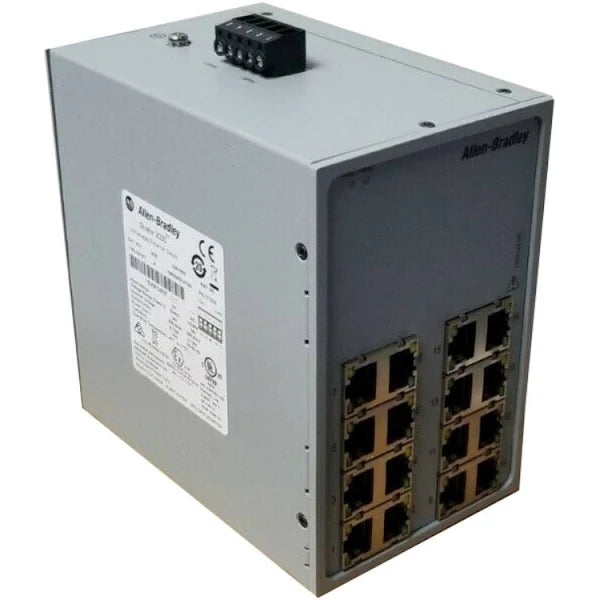

The 1783-US16T Ethernet switch is a Stratix 2000 series unmanaged switch from Allen-Bradley/Rockwell Automation. Its broadcast storm threshold is 10 Mbps per point. The 1783-US16T unmanaged Ethernet switch has an SW1 DIP switch for enabling and disabling the broadcast storm protection and a reserved SW2 DIP switch. It is equipped with 16 Ethernet ports. The 1783-US16T unmanaged Ethernet switch can operate at 18 to 30 Volts AC or 12 to 48 Volts DC.



Technical Specifications



Brand Allen-Bradley
Series Stratix 2000
Part Number 1783-US16T
Manufacturer Rockwell Automation
Max Power Consumption 8.0 Watts
Maximum Current 900 mA DC; 1800 mA AC
Power Terminal Screw Torque 8.05 inches per pound
Max Ground Terminal Screw Torque Open-Style/None
Dimensions 5.27 x 4.52 x 3.13 inches
RJ-45 Ports 16 Fast Ethernet
Total Ports 16
Nominal Current 430 mA DC; 860 mA AC
Max Inrush Current 0.47 A
Power Input 12 to 48 Volts DC, 18 to 30 Volts AC
SFP Ports 0
Ground Wire Size 14 AWG Copper Wire





Information About 1783-US16T

The 1783-US16T Stratix 2000 EtherNet Unmanaged Switch by Allen-Bradley is an electronic device which provides compact solutions for most industrial applications with a need for reliable network connectivity. It requires a Dual Class 2 or SELV 16 to 60 Volts DC or 18 to 30 Volts AC at a 50 to 60 Hertz input voltage range, with a 24 Volt nominal input and a maximum input current of 555.5 mA with 4.72 A inrush current on start-up. The 1783-US16T dissipates a 6.72 maximum heat when operational, and provides a 30 Volt DC voltage isolation between power-to-network channels, using basic insulation, tested at 500 Volts AC for 60 seconds. It uses an IEC-rated RJ-45 Connector, with 16 Fast EtherNet ports (FE) for EtherNet connection, and it utilizes 14 AWG copper wire with a 1.82 N-m (8 inches per pound) Screw Torque for the ground connection. The 1783-US16T supports a maximum of 8K MAC addresses but it does not support SFP modules.

It comes in an open-style enclosure and is designated for the T4 North America and IEC temperature codes. The 1783-US16T has a wide operational temperature range between -40 and 70 degrees Celsius (-40 and 158 degrees Fahrenheit) at a 5 to 95% non-condensing relative humidity to accommodate a wide range of applications. It is stored at an IEC-rated temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It is designed to withstand an operational shock of 15G and 30G in a non-operational mode, and it can withstand an operational vibration of 2G at 10 to 150 Hertz. It has a CISPR11, Class A-Rated Emission, and it has an IP20 environmental rating for protection against solid objects. The 1783-US16T has dimensions of 88 x 135 x 146.30 millimeters (3.46 x 5.31 x 5.76 inches) and is c-UL-us, CE, KC, RCM, and Ex-certified.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
