Part #: 1783-US6T2F Manufactured by: Allen-Bradley
Regular price
$1,427.00
Sale price
$1,427.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 1783-US6T2F Ethernet switch is an unmanaged type of Ethernet switch. It has been designed and manufactured by Allen-Br...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1783-US6T2F
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1783-US6T2F

Description / Specifications

Description

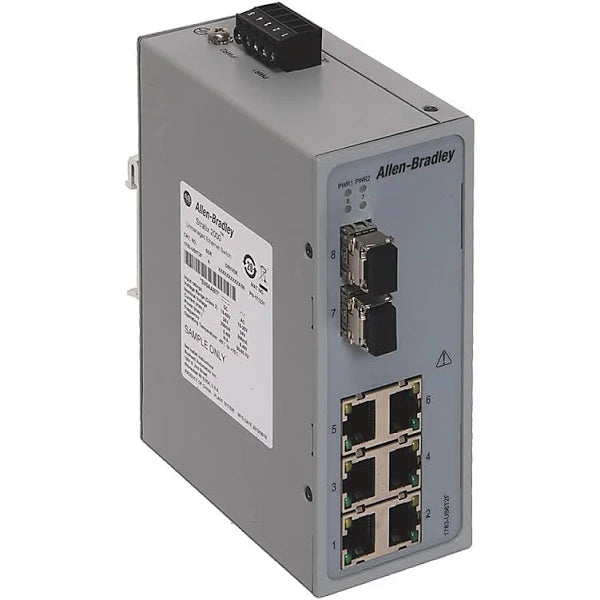

The 1783-US6T2F is an industrial Ethernet switch from Allen-Bradley. This product is part of the Stratix 2000 unmanaged ethernet switch catalog featuring Six (6) Fast Ethernet (FE) copper ports supporting 10/100 Mbps transmission speed and Two (2) multi-mode fiber media Fast Ethernet (FE) SFP slots. This Ethernet switch is powered by an external 24 VDC / 24 VAC supply voltage with a power dissipation of 5.927 Watts.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1783-US6T2F
Product Family Stratix Ethernet Switch
Product Type Stratix 2000 managed switch
No. of copper ports Six (6) copper ports;
Transmission speed 10 / 100 / 1000 mbps
No. of fiber ports Two (2) SFP ports
Supply voltage range 12-48V DC, 18-30V AC, 50/60 Hz
Nominal Supply voltage 24 VAC / VDC
Current rating 442.3 mA
Power Dissipation 5.927 W
Total Ports 8
Connector type RJ45
Max Ground Terminal Screw Torque Open-Style/None
RJ45 Ports 6 Fast Ethernet
SFP Ports 2 Fast Ethernet Mulitmode Preinstalled Fiber SFP Module
Max Inrush Current 0.41 A
Power Input 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV
Max Power Consumption 4.6 W
Nom Current DC 250 mA; AC 500 mA
Max Current DC 510 mA; AC 1100 mA
Wire Size: Ground Connection 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal
Enclosure Type Rating 4.50 x 3.02 x 1.80 in (114.5 x 76.8 x 45.6 mm)
Wire type Category 5 (Cat5) based on ISO/IEC 24702; Category 5e (Cat5e) in compliance with TIA 568-B.1
Enclosure type rating None (open-style)
Mounting DIN Rail
Operating shock 15 g
Operating Temperature -10 °C - +60 °C (-4 °F - +140 °F)
Temperature, ambient, max 60 °C (140 °F)
Temperature, surrounding air, max 60 °C (140 °F)





Information About 1783-US6T2F

The 1783-US6T2F is an Allen-Bradley Stratix 2000 unmanaged switch. This industrial Ethernet switch is provided with a total of Eight (8) network ports, which are comprised of Six (6) RJ45 copper ports and built-in Two (2) SFP ports for insertion of option Small Form-Factor pluggable (SFP) transceiver modules. These ports are Fast Ethernet (FE) ports supporting 10/100 Mbps transmission speed. The 1783-US6T2F is an industrial-grade Ethernet switch that is designed for implementing Ethernet Fieldbus network, for integration and enabling of data exchange between Programmable Logic Controllers (PLC), Programmable Automation Controllers (PAC), Distributed or Remote I/O stations, Distributed Control Systems (DCS), Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA), Variable Frequency Drives (VFD), motor Soft Starters, Gateways, Media converters, and other devices. The 1783-US6T2F operates when connected to an external power supply that provides 24 VDC / 24 VAC nominal supply voltage while the accepted supply voltage range is 18-60V DC, 18-30V AC 50/60 Hz AC input frequency, Class 2/SELV power supply. It has a current rating of 442.3 mA and power dissipation of 5.927 Watts. To establish an Ethernet connection, use RJ45 connector according to IEC 60603-7, and 2-pair or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702 with a minimum insulation rating of 82 °C (180 °F). For input power connections, the appropriate cable is 0.82-2.5 mm2 (18-14 AWG) twisted-pair copper wire suitable for an ambient temperature of 82 °C (180 °F). This Ethernet switch supports DIN rail mounting with an open-type enclosure.

The Allen-Bradley 1783-US6T2F is a Stratix 2000 multi-mode Ethernet Unmanaged Switch. Eight ports are present in this switch, particularly 6 RJ45 10/100 copper ports and 2 port fiber multimode SFP slots. It also has yellow and green status indicators with a blink rate of 105 ms that indicate the current states of the power supply, the port speed, and the network connection and activity. This switch uses packet-based thresholds and has a broadcast storm threshold of 20 packets per second (PPS) for 10 Mbps per port and one of 200 PPS for 100 Mbps per port. Note that this switch’s Ethernet data rate is 10-100 Mbps. For a ground connection, the required wire is a 14 AWG copper wire that is suitable for 180 ËšF above the surrounding ambient temperature outside the enclosure and with a suitable ring terminal. When using a DC power connection, the wire should be an 18 to 14 AWG twisted-pair copper wire that is also suitable for 180 oF above the surrounding ambient temperature outside the enclosure. The entire 1783-US6T2F switch measures 4.19 x 2.11 x 5.31 inches and makes use of an open-style enclosure. The 1783-US6T2F switch requires a power supply voltage of 24V (18-60V DC, 18-30V AC, 50-60 Hz), Class 2/SELV. Its current rating is 442 mA and its maximum power dissipation is 5.93 W. This switch’s continuous isolation voltage is 30V from the power to the network channels. The 1783-US6T2F has a basic insulation type type-tested at 500V AC for 60 seconds. There is no isolation between the individual network channels. The 1783-US6T2F has an operating temperature of -40-158 oF and a storage temperature of -40-185 oF. The maximum surrounding air temperature is 70 oC and its non-condensing relative humidity is 5-95%. It has an operating shock of 15 g, a non-operating shock of 30 g, and an operating vibration of 2 g at 10-150 Hz.
