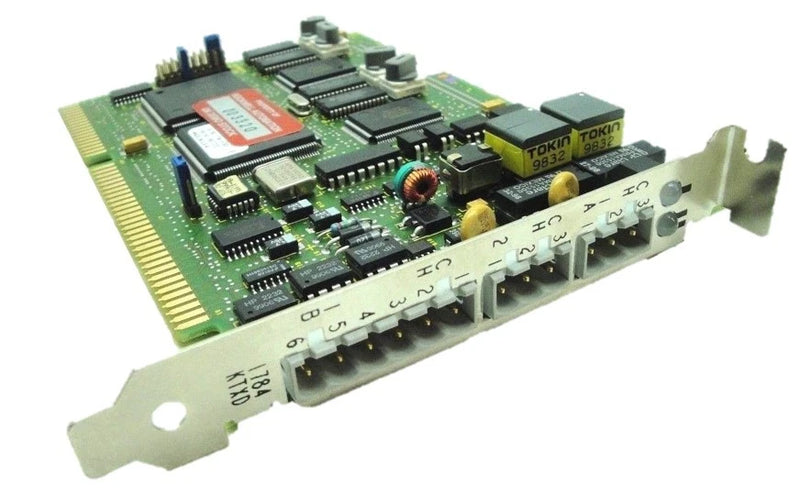

1784-KTXD | Allen-Bradley Communication Interface Card ISA/EISA 16-Bit
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1784-KTXD
Description
The Allen-Bradley 1784-KTXD is a dual-channel communication interface card designed for reliable data exchange in legacy PLC-5 control systems. Operating over both DH+ and DH-485 networks, this 16-bit ISA/EISA card offers robust connectivity for industrial automation platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
PLCs/Machine Control
|
| Part Number | 1784-KTXD |
| Subcatecory |
PC Board PLC/Add-On Board
|
| Series | PLC 5 |
| Channels | 2 |
| Compatibility | 16-bit EISA / ISA card expansion slot |
| Remote I/O scanner | Yes |
| DH+ / DH-485 node | Yes |
| Operating temperature | 0 to 60 degrees Celsius |
| Storage temperature | -40 to 85 degrees Celsius |
| Relative humidity | 5 to 95% |
| Power Requirement | 600 mA 5 VDC |
| Weight | 0.31 lbs |
Information About 1784-KTXD
The 1784-KTXD communication card is part of the Allen-Bradley PLC-5 series, designed to interface with industrial networks via a 16-bit ISA or EISA slot. This half-size ISA card provides two independent communication channels, allowing users to connect to Data Highway Plus (DH+) and DH-485 networks simultaneously, supporting remote I/O scanning for connected devices.
Key Features:
- Type: Communication interface card for legacy PLC systems
- Interface Standards: Compatible with 16-bit ISA and EISA slots
- Channels: Dual-channel operation supports simultaneous DH+ and DH-485 communication
- Remote I/O: Capable of functioning as a remote I/O scanner
- Network Support: Interfaces with DH+ and DH-485 networks for legacy control integration
- Power Requirements: 600 mA at 5 VDC from PC backplane
- Form Factor: Half-size ISA card for industrial PC integration
- Operating Temperature: 0°C to 60°C; Storage: -40°C to 85°C
- Humidity Tolerance: 5% to 95% non-condensing
- Application: Used in legacy industrial networks requiring deterministic communication and multi-channel support
The 1784-KTXD provides a dependable, dual-network interface for legacy Allen-Bradley systems, facilitating seamless integration across DH+ and DH-485 communication platforms.
