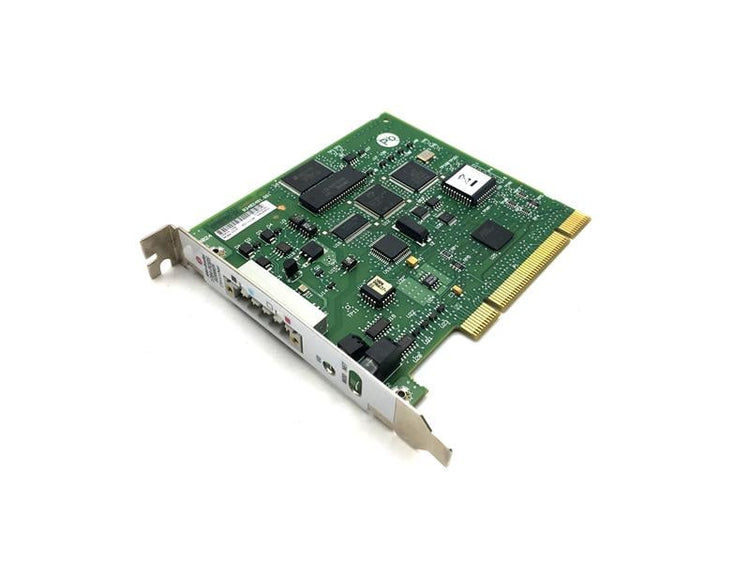

1784-PCIDS | Allen-Bradley DeviceNet Universal PCI I/O Scanner Card
- Regular price
- $784.00
- Sale price
- $784.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1784-PCIDS
Description
The Allen-Bradley 1784-PCIDS is a universal PCI-based DeviceNet scanner card that enables a PC to communicate directly with a DeviceNet network for I/O scanning, monitoring, configuration, and explicit messaging.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
PLCs/Machine Control
|
| Part Number | 1784-PCIDS |
| Subcatecory |
PC Board PLC/Add-On Board
|
| Series | PLC 5 |
| Disk space required | 2 MB |
| Relative humidity | 5 to 95% |
| PC power reqruirement | 5 Volts DC, 625 milliamps |
| Operating temperature | 32 to 131 degrees Fahrenheit |
| Storage temperature | -40 to 185 degrees Fahrenheit |
| Compatible PCI Slot | PCI rev. 2.1 |
| Mechanical form factor | PCI 5V, 32-Bit short card |
| Available Series | Series A / Series B |
| Enclosure | Open |
Information About 1784-PCIDS
The 1784-PCIDS is a Rockwell Automation DeviceNet PCI scanner card that connects a host PC to a DeviceNet network through a single terminal interface. It is compliant with PCI revision 2.1 and designed in a 32-bit short card mechanical form factor, allowing installation in standard 5V PCI slots.
Key Features:
- Type: Universal DeviceNet scanner card for PCI-based industrial control systems
- Network Interface: 1 x DeviceNet terminal for monitoring, configuration, messaging, and I/O scanning
- PCI Compatibility: Designed for PCI revision 2.1; 5V, 32-bit short card form factor
- Series Support: Available in both Series A and Series B variants
- Power Requirement: Operates at 5 VDC, drawing 625 milliamps from the host system
- Disk Space Requirement: Requires only 2 MB of disk space for software installation
- Operating Temperature: Functions from 32°F to 131°F (0°C to 55°C)
- Storage Temperature: Safe storage from -40°F to 185°F (-40°C to 85°C)
- Relative Humidity: Operates in environments with 5% to 95% non-condensing humidity
The 1784-PCIDS enables high-speed DeviceNet communication from a PCI-based host system, supporting industrial I/O scanning and messaging in a compact and efficient design.
