1784-PCMC | Allen-Bradley Bundle: 1784-PCMK PCMCIA Card & 1784-PCM5 Cable
- Regular price
- $1,369.00
- Sale price
- $1,369.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1784-PCMC
Description

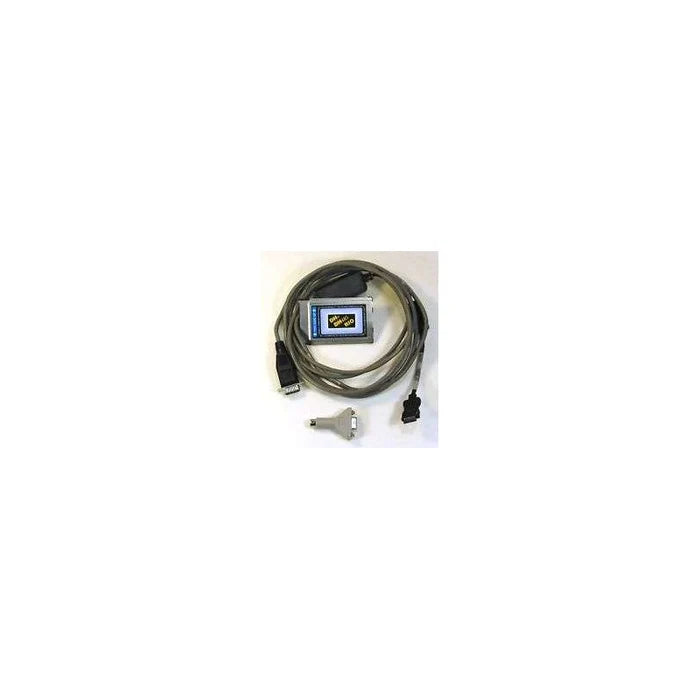

The Allen-Bradley 1784-PCMC is a communication bundle that includes the 1784-PCMK PCMCIA communication card and the 1784-PCM5 cable. It is designed to allow a notebook or laptop computer to connect with Allen-Bradley controllers over Data Highway Plus (DH+), DH-485, and Remote I/O networks. This bundle is widely used in programming, troubleshooting, and communication tasks in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Network Communication Modules |
| Part Number | 1784-PCMC |
| Subcategory | Data Highway Plus Interface Assembly |
| Type | DH+ Communication Interface |
| Function | Enables device connection to a Data Highway Plus network |
| Supported Network | Data Highway Plus (DH+) |
| Approx. Node Support | Up to 32 or more nodes (depends on system configuration) |
| Protocol | Token-passing DH+ |
| Operating Temperature | –20 to +70 °C (various sources) |
| Interface Medium | RS-485 / twinax style network trunk |
| Mounting | Assembly/in-cabinet module (open-style) |
| Usage Application | Industrial automation, PLC networking, system integration |
| Special Features | Legacy network support; compact design |
Information About 1784-PCMC
The 1784-PCMC bundle provides portable communication capabilities for engineers and technicians working with Allen-Bradley PLC systems. The 1784-PCMK card is a PCMCIA interface that fits into standard laptop slots, enabling direct connection to industrial networks. Depending on the system, it requires compatible cables such as the 1784-PCM5 for PLC-3, PLC-5, and 250 controllers, or other PCM series cables for different PLC generations. Through the DH+, DH-485, and RIO protocols, the module supports messaging, monitoring, and program transfer between computers and controllers. The included 1784-PCMC cable ensures reliable connectivity and is equipped with strain relief wedges to prevent disconnection issues. Typical applications include factory-floor programming, commissioning, and diagnostics of SLC, PLC, and ControlLogix systems. The 1784-PCMC is discontinued by the manufacturer but remains important in legacy system maintenance.
Key Features:
- Bundle Design: Includes 1784-PCMK PCMCIA communication card and 1784-PCM5 cable.
- Supported Networks: Compatible with DH+, DH-485, and Remote I/O protocols.
- Device Compatibility: Interfaces with PLC-2, PLC-3, PLC-5, SLC 500, and 1756-DHRIO modules (with appropriate cable).
- Communication Role: Enables program download/upload, messaging, and controller diagnostics from laptops.
- Connection: PCMCIA slot for notebooks and laptops.
- Cable Support: Requires specific PCM cables (PCM2, PCM4, PCM5, PCM6, PCMS) depending on the controller type.
- Reliability: Strain relief wedges included for secure cable connection.
- Ease of Use: Simple installation with recommended setup procedures.
- Application: Ideal for programming and troubleshooting on the factory floor.
- Status: Discontinued by manufacturer but still essential for legacy system support.
The 1784-PCMC provides portable and reliable communication capabilities for maintaining and programming legacy Allen-Bradley PLC systems.
