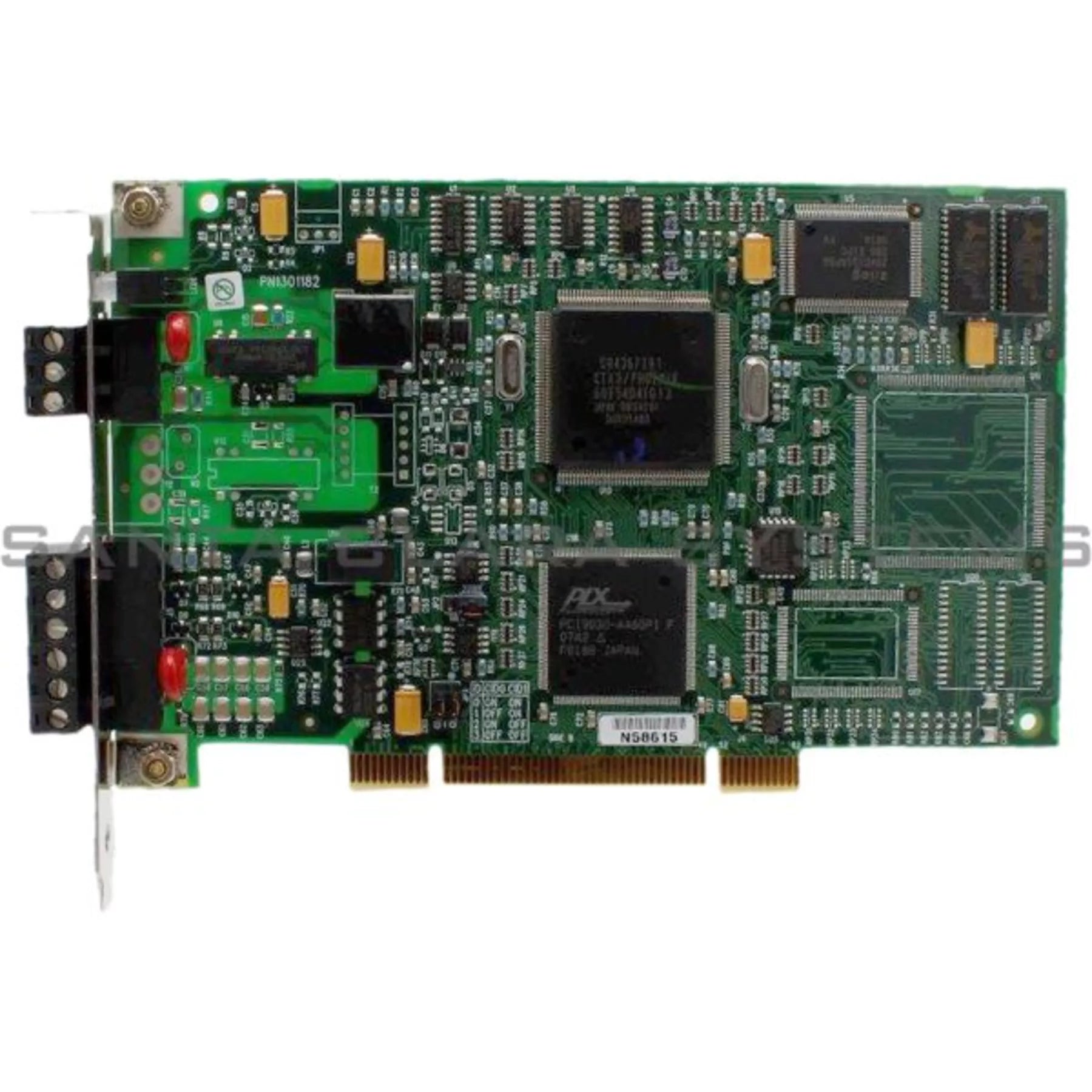

1784-PKTX | Allen-Bradley PCI Bus Communication Card with DH+/DH-485/RIO
1784-PKTX | Allen-Bradley PCI Bus Communication Card with DH+/DH-485/RIO
Part #: 1784-PKTX Manufactured by: Allen-Bradley

1784-PKTX | Allen-Bradley PCI Bus Communication Card with DH+/DH-485/RIO

Regular price
$597.00
Sale price
$597.00
Regular price
Never Used Surplus
368 in Stock
Shipping calculated at checkout.
Product Overview
Allen Bradley PLC 5 Bus Communication Card, 4 Max Modules Per System, 1A 3-Pin Phoenix for DH+ & Remote I/O, 1C 6-Pin Phoe...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1784-PKTX
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1784-PKTX | Allen-Bradley PCI Bus Communication Card with DH+/DH-485/RIO
    1784-PKTX | Allen-Bradley PCI Bus Communication Card with DH+/DH-485/RIO
1784-PKTX | Allen-Bradley PCI Bus Communication Card with DH+/DH-485/RIO
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1784-PKTX

Description / Specifications

Description

The 1784-PKTX is an Allen-Bradley network interface card. This card is a PCI 2.3 compliant hardware and provides Data highway Plus (DH+) / Remote I/O (RIO) Channel 1A and DH485 Channel 1B ports.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1784-PKTX
Number of modules per system 4
Status LEDs 1 diagnostic/status LED per channel
DH-485 maximum cable and communication 4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s
DH+ / RIO Maximum cable and communication 10,000 ft. (3048 m) @ 57.6K bit/s 5, 000 ft. (1,524 m) @ 115.2K bits/s 2,500 ft. (762 m) @ 230.4K bits/s
Remote I/O scanner Supported
Compatible controllers PLC-5, PLC-5/250, and SLC 5/04 processors, and SLC 5/01, SLC 5/02, and SLC5/03 processors (only via 1785-KA5)
PCI port PCI 2.3 compliant
Communication channels Channel 1A: DH+ / RIO Channel 1C: DH-485
Communication Protocol Data Highway Plus (DH+);
Description Network Interface card
Product Line Allen Bradley PLC 5
Module Type Bus Communication Card
Wiring Arm 1771-WN
Required External Power None
Max Modules Per System 4
Bus Communcations Local PCI 2.3 Compliant
LEDs 1 Diagnosis/Status Per Channel
Dimensions 4.5 x 12.4 x 6.3 inches (115 x 317 x 160 millimeters)
Coating Conformal Coat
Typical AC Signal Delay (Off) 29 (+/- 8) ms
Typical DC Signal Delay (Off) 30 (+/- 7) ms
Channels 1A 3-Pin Phoenix for DH+ & Remote I/O, 1C 6-Pin Phoenix for DH-485
DH+/DH-485/RIO Yes





Information About 1784-PKTX

The Allen-Bradley 1784-PKTX is a network interface cards that directly mounts to a Peripheral Connect Interconnect (PCI) port of a personal computer. This card supports PCI bus version 2.3 and allows the host computer to connect to a Data Highway Plus (DH+), Remote I/O (RIO) or DH-485 communication network. This card may be used to interface with Programmable Logic Controllers (PLC) for implementing process visualization.

It has a single channel DH+ / RIO combo port, labelled as channel 1A and DH-485 communication interface labelled as Channel 1C. DH+ and RIO supports long distance communication with specific coverage limited by the transfer rate. Specifically, 10,000 ft. (3048 m) @ 57.6K bit/s; 5, 000 ft. (1,524 m) @ 115.2K bits/s and 2,500 ft. (762 m) @ 230.4K bits/s. For DH-485, maximum distance that may be covered is 4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s.

The 1784-PKTX comes with 1 diagnostic/status LED per channel and supports a maximum of Four (4) modules per system, specified by the jumper configuration. Drive development may be configured in variety of ways and depends on the operating system.

For other Operating Systems, a user-specific Driver must be created. The module uses the RSLinx PKTx driver for devices connected to either the DH+ or the DH-485 Network, and it can connect to DH+ devices, using the 10 feet (3.2 meters) CP12 cable which has a 3-pin Phoenix End with Switchable Termination resistor. Also, the module uses the 1784-CP14 cable, which is a 6 pin Phoenix Connector with switchable termination resistor to connect to an SLC on DH-485 Network. The 1784-PKTX has varying connection lengths with corresponding transfer rates, at 10,000 feet, the communication rate is at the 57.6K bit/s, at 5,000 feet, it is 115.2K bits/s, and at 2,500 feet, it is 230.4K bits/s. Connection rates on the DH-485 network at 4,000 feet is 1200 bits/s, 9600 bits/s or 19,200 bits/s, and for the Remote I/O is 230.4K bit/s at 2,500 feet through 57.6K bit/s at 10,000 feet. The module has a single LED status/Diagnostic indicator per channel, and BUS communication meets Local PCI compliance. The 1784-PKTX module has a working temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) at a tested 5 to 95% relative humidity without condensation, and it is rated for withstanding an operational shock of 30G and a vibration of 2G at 10 to 500 Hertz.
