Product Description P/N: 1784-U2DHP

Description / Specifications

Description

The Allen-Bradley 1784-U2DHP is a USB to Data Highway Plus (DH+) cable. This communication peripheral enables any configuration or programming workstation such as a laptop or computer to connect to the Data Highway Plus (DH+) network. This communication device also supports PLC-5 processors (except for Classic PLC-5 processors, such as PLC-5/10, PLC-5/12, PLC-5/15, and PLC-5/25) or SLC 5/04 processors.



Technical Specifications



Brand Allen-Bradley
Series PLC 5
Part Number 1784-U2DHP
Temperature 0-55 degrees Celsius
Power dissipation 1.575 watts
Current 125 mA
Description Data Highway Plus (DH+) cable
Altitude 2000 meters
Enclosure IP 30
Communication rate 57.6 Kbps @ 3048 m (10,000 ft) 115.2 Kbps @ 1524 m (5000 ft) 230.4 Kbps @ 762 m (2500 ft)
LED indicators USB Power DH+ network
Compatible Processors PLC-5 processors except (Classic PLC-5 processors, such as PLC-5/10, PLC-5/12, PLC-5/15, and PLC-5/25); SLC 5/04 processors
Supply voltage 5.00V DC 5.25V DC, max
Power dissipation, max 1.575 W
Voltage 5 Volts DC





Information About 1784-U2DHP

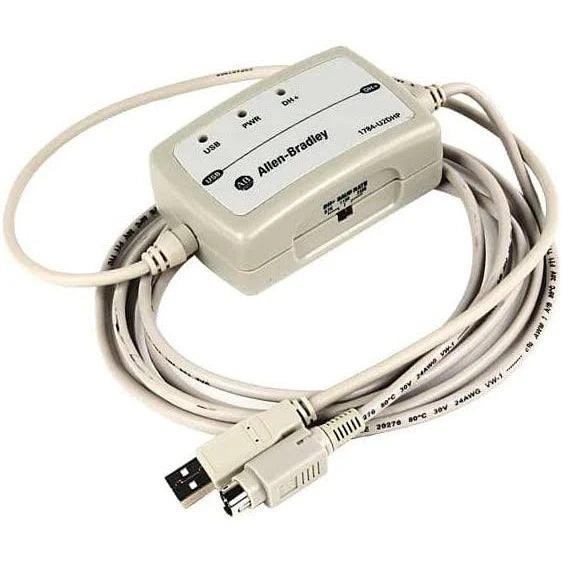

The 1784-U2DHP cable is an Allen-Bradley USB to Data Highway Plus cable. It is an industrial grade cable which lets an operator connect a computer with a DH+ network by using the USB port of the computer. The same cable can be used for a connection between a PLC 5 processor and a computer. The cable can be used for Overvoltage Category II applications at up to a maximum altitude of 2000 meters without getting derated. The cable must be powered from a source compliant with the SELV and PELV standards. The 1784-U2DHP cable comes with a communication rate switch and an LED status indicator. The cable status indicators blink red and green for different events, including power supply, network activity, node duplication, and internal diagnostics updates. The cable should be disconnected from the USB port before changing the communication rate setting. One end of the 1784-U2DHP cable has a USB connector and the other end comes with an 8-pin DIN connector. The node address of the DH+ cable is set automatically when it is connected for the first time. The driver should be properly installed in the computer for the cable to function. A unique COM port is created for the cable once the driver is installed. The DIN cable length is 2.44 meters and the USB length is 0.61 meters. The 1784-U2DHP cable comes with an IP 30 enclosure rating. It dissipates 1.575 Watts of power as heat. It uses 125 milliamps of supply current and 5 Volts DC voltage. It has an isolation voltage of 30 Volts. The temperature should range between 0 and 55 degrees Celsius.

The Data Highway Plus (DH+) communication network is an Allen-Bradley proprietary protocol that communicates over RS485 wiring convention. It allows high-speed transfer of data and support long distance communication, up to 10,000 feet (3050 meters) for trunkline and 100 feet (3.0 meters) for dropline connections. Three (3) communicate rates are supported by the 1784-U2DHP. For 57.6 Kbps, maximum DH+ network length is 3048 m (10,000 ft); 115.2 Kbps @ 1524 m (5000 ft) and 230.4 Kbps @ 762 m (2500 ft).

The 1784-U2DHP comes with a 3-position switch used for configuring the DH+ node address. It does not require mounting to a DIN rail or any mounting method as this device is a highly portable device. It draw power from the USB connection with power consumption of 1.575 Watts and Power dissipation of 1.575 Watts as well. To power-up this device, the 1784-U2DHP require a supply current of 1.25 mA with supply voltage requirement of 5.00V DC (nominal) and 5.25V DC (maximum).

The 1784-U2DHP comes with LED status indicator such as USB, Power and DH+ network. This communication device replaces the 1784-PCMK communication adapter card and 1784-PCM6 communication cable. This communication device also supports PLC-5 processors (except for Classic PLC-5 processors, such as PLC-5/10, PLC-5/12, PLC-5/15, and PLC-5/25) or SLC 5/04 processors.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
