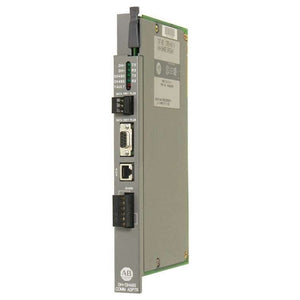

1785-KA5 | Allen Bradley DH+/DH-485 Communication Adapter Module
- Regular price
- $3,199.00
- Sale price
- $3,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1785-KA5
Description
The Allen-Bradley 1785-KA5 is a Data Highway Plus (DH+) communication adapter module designed for the PLC 5 series. It facilitates seamless communication between devices on the DH+ network and the RS-485 Data Highway network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1785-KA5 |
| Subcategory | PLC Expansion Modules |
| Module Type | Communication Adaptor Module |
| Backplane Requirement | 1.2 Amperes at 5 Volts DC |
| Interface Ports | Data Highway, Data Highway Plus, and Allen-Bradley Industrial Terminal (Series 1784) |
| Operation | Process Messages |
| Communication w/ PLC Processor | Direct Connection to Channel 3 of PLC-5 Processor |
| LEDs | 1 Diagnosis/Status Per Channel |
| Max Modules Per System | 4 |
| Typical AC Signal Delay (Off) | 29 (+/- 8) ms |
| Typical DC Signal Delay (Off) | 30 (+/- 7) ms |
| Dimensions | 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm) |
Information About 1785-KA5
The 1785-KA5 communication adapter module is a versatile solution for bridging Allen-Bradley Data Highway Plus (DH+) and RS-485 Data Highway networks. It supports direct connection to Channel 3 of the PLC-5 processor, enabling efficient communication with connected devices. This module is equipped with interface ports for Data Highway, Data Highway Plus, and Allen-Bradley Industrial Terminals (Series 1784), providing broad compatibility. Featuring a diagnostic/status LED per channel, it ensures quick troubleshooting and monitoring. Up to 4 modules can be integrated into a single system for scalable communication setups.
Key Features:
- Network Compatibility: Interfaces with Data Highway, Data Highway Plus, and RS-485 networks.
- Direct Connection: Communicates directly with Channel 3 of the PLC-5 processor.
- LED Indicators: Diagnostic/status LEDs for real-time monitoring of each channel.
- Scalability: Supports up to 4 modules per system for flexible network configurations.
- Operation: Processes messages efficiently between connected networks.
- Versatile Ports: Compatible with Allen-Bradley Industrial Terminals (Series 1784).
The Allen-Bradley 1785-KA5 is an essential component for bridging communication between DH+ and RS-485 networks, ensuring seamless device integration and efficient system operation. Its reliability and flexibility make it an ideal solution for complex industrial networks.
