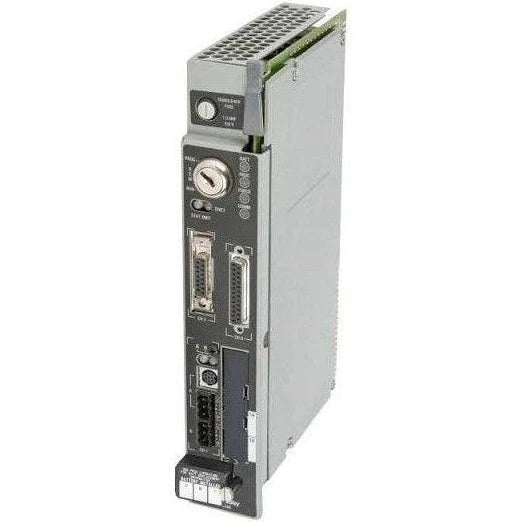

1785-L40E | Allen-Bradley PLC-5 EtherNet/IP PLC-5/40E Controller, 48K Word SRAM
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 1785-L40E
Description
The Allen-Bradley 1785-L40E is an Allen-Bradley PLC5 Controller. This controller has 48K words of user memory, supports 2048 (any mix) or 2048 in + 2048 out (complementary). It has embedded communication ports such as Two (2) DH+/Remote I/O (Adapter or Scanner) One (1) serial port, configurable for RS-232 and 423 and RS-422A standards and One (1) Ethernet communication port.
Technical Specifications
Brand | Allen-Bradley |
Manufacturer | Rockwell Automation |
Part Number | 1785-L40E |
Product Type | Programmable Logic Controller |
Power Supply | 1771-P4S, -P6S, -P4S1, -P6S1 |
Power Dissipation | 17.3W |
Backplane current load | 3.3A |
Embedded Communication interfaces | 4 DH+/Remote I/O (Adapter or Scanner) 1 serial port, configurable for RS-232 and 423 and RS-422A standards |
Memory | 48 KWords |
Battery | 1770-XYC |
Maximum number of I/O per link | 32 |
Operating Temperature | EC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0...60 o C (32...140 o F) |
Product Family | PLC5 |
Non-Operating Temperature | IEC 60068-2-1 (Test Ab, Un-packaged Nonoperating Cold), IEC 60068-2-2 (Test Bc, Un-packaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Un- packaged Nonoperating Thermal Shock): –40...85 o C (– 40...185 o F) |
Module Type | Ethernet PLC-5 Processor |
Processor | PLC-5/40E |
Battery-Backed Static RAM | Yes |
EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100) | Yes |
Protected Memory | No |
Max Total I/O | 2048 (any mix) or 2048 in + 2048 out (complementary) |
Max Analog I/O | 2048 |
I/O Scan Time Per Rack | 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s |
Max I/O Chassis Total | 61 |
Max I/O Chassis Extended Local | 0 |
Max I/O Chassis Universal Remote | 60 |
RS-232-C/422-A/423- A Ports | 1 |
Control Coprocessor Expansion Port | Yes |
Information About 1785-L40E
The Allen-Bradley 1785-L40E is a Programmable Logic Controller (PLC). This controller module is ideally used for medium to large application and capable of interfacing simultaneously with a variety of devices for automation of machine s or processes.
The 1785-L40E is installed to a 1771 chassis. This chassis hosts the electronic backplane where system power is supplied and distributed among other modules including the 1785-L40E controller. Compatible chassis for this controller are 1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, and 1771-A4B while compatible power supplies are 1771-P4S, -P6S, -P4S1, -P6S1. The controller’s current draw is 3.3A with power dissipation of 17.3W.
The 1785-L40E supports a variety of industrial protocols via the embedded communication ports such as Two (2) Data Highway + (DH+) /Remote I/O (RIO) (Adapter or Scanner) combination port, One (1) serial port, that supports RS-232, 423 and RS-422A EIA standards and One (1) Ethernet communication port that supports 10/100 Mbps transmission speed. All these communication ports may be used for communicating with visualization system, PLC5 controllers and other Allen-Bradley controllers, and other devices.
This controller supports a variety of programming languages per IEC 61131-3 standard. Supported programming languages include Sequential Function Chart (SFC), Ladder Logic, and Structured Text (ST).
The 1785-L40E supports implementation of automatic and manual control of discrete and analog devices, perform signal conditioning, implementation of advanced control algorithms such as Proportional-Integral and Derivative (PID) functions, among other industrial functions. This controller has built-in memory of 48KB can handle 2048 any mix or 2048 input and 2048 output (complement.) It can support up to 61 chassis wherein 1 chassis is the local chassis and the other 60 chassis can be remote I/O systems.
This module is pre-installed with an Allen-Bradley 1770-XYC battery module. It supports installation of optional backup memory devices such as 1785-ME64, 1785-ME32, or the 1785-M100 lithium batteries. The 1785-L40E is compatible with 8-point, 16-point, 32-point, and 1771 intelligent I/O modules, and the controller offers users a maximum selectable I/O scan time of just 0.5ms for the extended-local I/O adapter, an I/O scan time of 10 milliseconds for the remote I/O rack at 57.6 kbps, and a scan time of 3 milliseconds for the remote I/O rack at 230.4 kbps. It supports maximum of 16 I/O racks (0 to 15), and up to 61 I/O chassis links.
The 1785-L40E addresses the I/O hardware via 3 different modes. Specifically, these addressing methods are 2-slot mode which addresses any mix of 8-point modules and a pair of 16-point modules, the 1-slot mode which addresses any mix of 8 and 16-point modules, and 1 pair of 32-point I/O modules, and the half-slot mode which addresses any mix of 8-point, 16-point, and 32-point modules.
The 1785-L40E has 1 dedicated 15-pin, Ethernet/IP port (with TCP/IP protocol), 2 Data Highway Plus (DH+)/Remote I/O (Adaptor or Scan) ports for connection to the Allen-Bradley Data Highway (DH+) network, and 1 RS-232-C, 422-A, and 423-A serial communication port. The controller has an internal circuit clock that has a +/- 5 min per month of accuracy variation, and it will function without de-rating at a temperature of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) around 5 to 95% non-condensing humidity range. The controller has an operational shock withstand of 30G with 1G operational vibration at 10 to 500 Hertz without, and is CSA, C-TICK, CE, and UL-certified. It weighs averagely 1.38 kilograms (3.0 pounds) and comes in an open enclosure.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
Description
The Allen-Bradley 1785-L40E is an Allen-Bradley PLC5 Controller. This controller has 48K words of user memory, supports 2048 (any mix) or 2048 in + 2048 out (complementary). It has embedded communication ports such as Two (2) DH+/Remote I/O (Adapter or Scanner) One (1) serial port, configurable for RS-232 and 423 and RS-422A standards and One (1) Ethernet communication port.
Technical Specifications
Brand | Allen-Bradley |
Manufacturer | Rockwell Automation |
Part Number | 1785-L40E |
Product Type | Programmable Logic Controller |
Power Supply | 1771-P4S, -P6S, -P4S1, -P6S1 |
Power Dissipation | 17.3W |
Backplane current load | 3.3A |
Embedded Communication interfaces | 4 DH+/Remote I/O (Adapter or Scanner) 1 serial port, configurable for RS-232 and 423 and RS-422A standards |
Memory | 48 KWords |
Battery | 1770-XYC |
Maximum number of I/O per link | 32 |
Operating Temperature | EC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0...60 o C (32...140 o F) |
Product Family | PLC5 |
Non-Operating Temperature | IEC 60068-2-1 (Test Ab, Un-packaged Nonoperating Cold), IEC 60068-2-2 (Test Bc, Un-packaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Un- packaged Nonoperating Thermal Shock): –40...85 o C (– 40...185 o F) |
Module Type | Ethernet PLC-5 Processor |
Processor | PLC-5/40E |
Battery-Backed Static RAM | Yes |
EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100) | Yes |
Protected Memory | No |
Max Total I/O | 2048 (any mix) or 2048 in + 2048 out (complementary) |
Max Analog I/O | 2048 |
I/O Scan Time Per Rack | 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s |
Max I/O Chassis Total | 61 |
Max I/O Chassis Extended Local | 0 |
Max I/O Chassis Universal Remote | 60 |
RS-232-C/422-A/423- A Ports | 1 |
Control Coprocessor Expansion Port | Yes |
Information About 1785-L40E
The Allen-Bradley 1785-L40E is a Programmable Logic Controller (PLC). This controller module is ideally used for medium to large application and capable of interfacing simultaneously with a variety of devices for automation of machine s or processes.
The 1785-L40E is installed to a 1771 chassis. This chassis hosts the electronic backplane where system power is supplied and distributed among other modules including the 1785-L40E controller. Compatible chassis for this controller are 1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, and 1771-A4B while compatible power supplies are 1771-P4S, -P6S, -P4S1, -P6S1. The controller’s current draw is 3.3A with power dissipation of 17.3W.
The 1785-L40E supports a variety of industrial protocols via the embedded communication ports such as Two (2) Data Highway + (DH+) /Remote I/O (RIO) (Adapter or Scanner) combination port, One (1) serial port, that supports RS-232, 423 and RS-422A EIA standards and One (1) Ethernet communication port that supports 10/100 Mbps transmission speed. All these communication ports may be used for communicating with visualization system, PLC5 controllers and other Allen-Bradley controllers, and other devices.
This controller supports a variety of programming languages per IEC 61131-3 standard. Supported programming languages include Sequential Function Chart (SFC), Ladder Logic, and Structured Text (ST).
The 1785-L40E supports implementation of automatic and manual control of discrete and analog devices, perform signal conditioning, implementation of advanced control algorithms such as Proportional-Integral and Derivative (PID) functions, among other industrial functions. This controller has built-in memory of 48KB can handle 2048 any mix or 2048 input and 2048 output (complement.) It can support up to 61 chassis wherein 1 chassis is the local chassis and the other 60 chassis can be remote I/O systems.
This module is pre-installed with an Allen-Bradley 1770-XYC battery module. It supports installation of optional backup memory devices such as 1785-ME64, 1785-ME32, or the 1785-M100 lithium batteries. The 1785-L40E is compatible with 8-point, 16-point, 32-point, and 1771 intelligent I/O modules, and the controller offers users a maximum selectable I/O scan time of just 0.5ms for the extended-local I/O adapter, an I/O scan time of 10 milliseconds for the remote I/O rack at 57.6 kbps, and a scan time of 3 milliseconds for the remote I/O rack at 230.4 kbps. It supports maximum of 16 I/O racks (0 to 15), and up to 61 I/O chassis links.
The 1785-L40E addresses the I/O hardware via 3 different modes. Specifically, these addressing methods are 2-slot mode which addresses any mix of 8-point modules and a pair of 16-point modules, the 1-slot mode which addresses any mix of 8 and 16-point modules, and 1 pair of 32-point I/O modules, and the half-slot mode which addresses any mix of 8-point, 16-point, and 32-point modules.
The 1785-L40E has 1 dedicated 15-pin, Ethernet/IP port (with TCP/IP protocol), 2 Data Highway Plus (DH+)/Remote I/O (Adaptor or Scan) ports for connection to the Allen-Bradley Data Highway (DH+) network, and 1 RS-232-C, 422-A, and 423-A serial communication port. The controller has an internal circuit clock that has a +/- 5 min per month of accuracy variation, and it will function without de-rating at a temperature of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) around 5 to 95% non-condensing humidity range. The controller has an operational shock withstand of 30G with 1G operational vibration at 10 to 500 Hertz without, and is CSA, C-TICK, CE, and UL-certified. It weighs averagely 1.38 kilograms (3.0 pounds) and comes in an open enclosure.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
