1788-EN2DN | Allen-Bradley | Linking Device
- Regular price
- $2,797.00
- Sale price
- $2,797.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 1788-EN2DN
Description

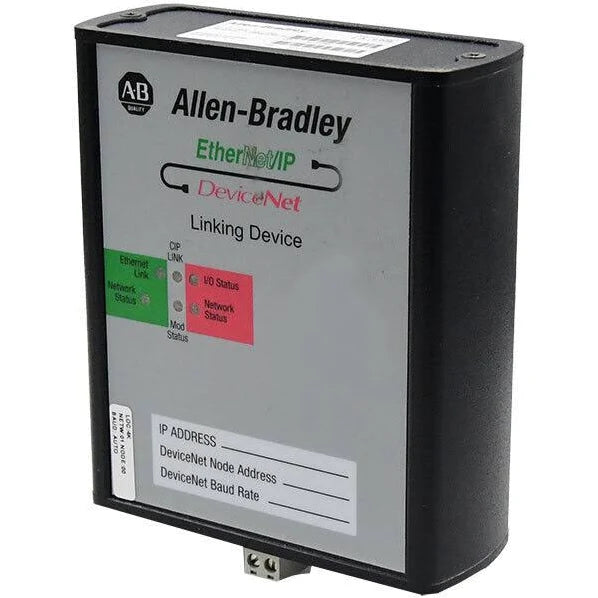

The Allen-Bradley 1788-EN2DN is an Ethernet to DeviceNet linking device designed to seamlessly integrate information networks with Device level communication highway. Facilitating connection to a maximum of 63 DeviceNet slave devices through an Ethernet I/P network, this linking device features one (1) Ethernet interface and one (1) DeviceNet interface, providing efficient and reliable communication between the two networks.
Technical Specifications
Specifications
Brand |
Allen-Bradley |
Operating Shock |
30 g |
Operating Vibration |
5 g @ 10…500 Hz |
Temperature, surrounding air, max |
60 °C (140 °F) |
Enclosure |
None (open style) |
Operating Voltage |
12…30V DC (24V DC nom) |
Supported DeviceNet nodes |
Up to 63 nodes |
Ethernet Transmission Speed |
10/100 Mbps |
Connection ports |

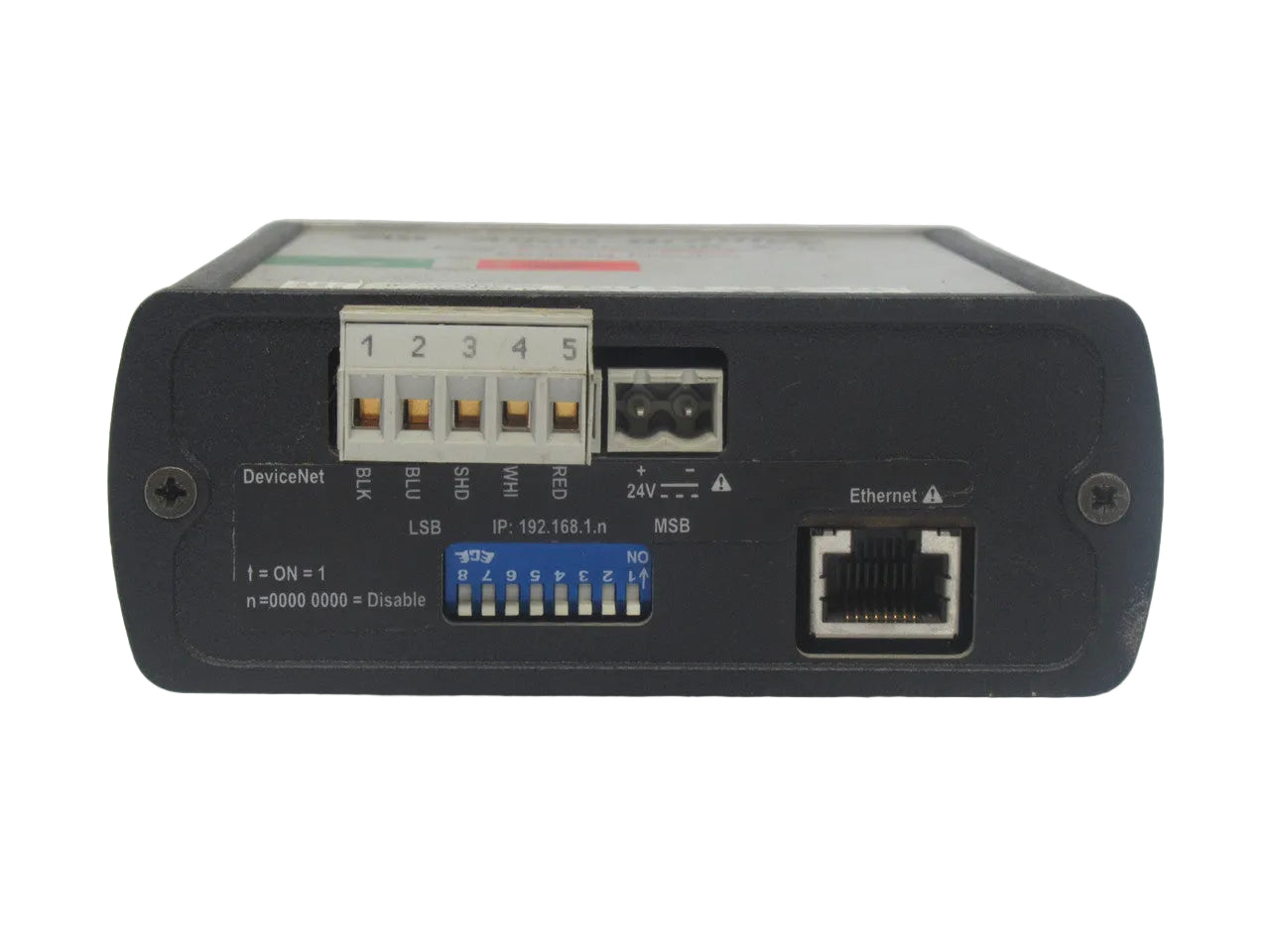

One (1) DeviceNet; One (1) Ethernet I/P |
Supported Protocol |
DeviceNet / Ethernet I/P |
Part Number |
1788-EN2DN |
Manufacturer |
Rockwell Automation |
Product Type |
Ethernet to DeviceNet linking device |
DeviceNet Network Operating Voltage |
12-30V DC |
DeviceNet Network Current Rating |
100 mA @ 24V DC |

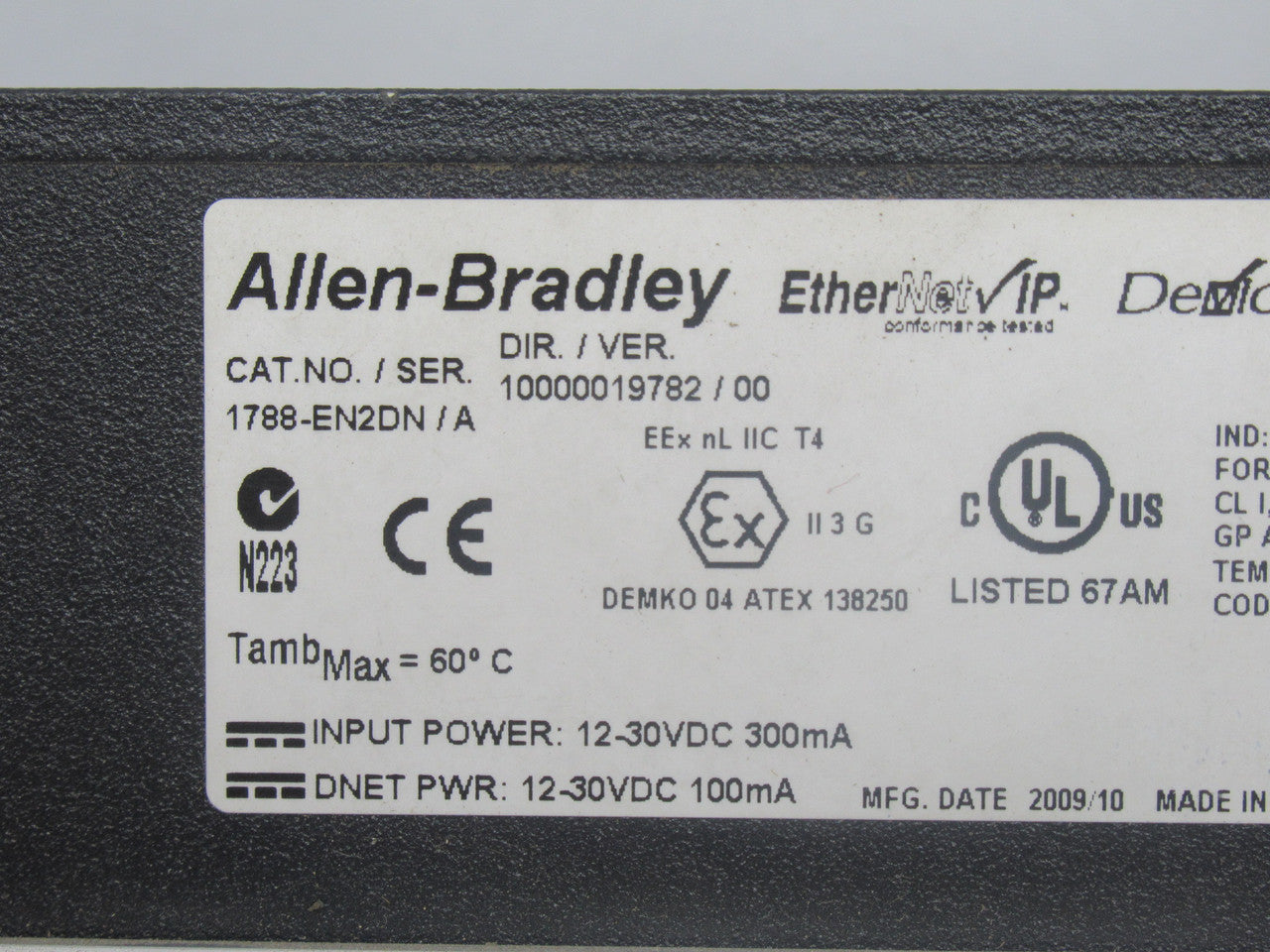

Input Power Operating Voltage |
12-30V DC |
Enclosure |
None |
Input Power Current Rating |
300 mA @ 24V DC |
Isolation Voltage |
50V |
Torque |
0.5-0.8 Nm |
UPC |
10612598297051 |
Information About 1788-EN2DN
The Allen-Bradley 1788-EN2DN is an Ethernet to DeviceNet linking device designed to seamlessly integrate information networks with DeviceNet level communication highways. It facilitates the connection of up to 63 DeviceNet slave devices to an Ethernet I/P network. The device features one Ethernet interface and one DeviceNet interface, enabling efficient communication between the two networks.
With the 1788-EN2DN, users can establish reliable connections between Ethernet and DeviceNet networks, enhancing system interoperability and data exchange capabilities. This linking device serves as a bridge between the Ethernet and DeviceNet protocols, allowing for seamless communication and data transfer across different industrial networks.
By supporting up to 63 DeviceNet slave devices, the 1788-EN2DN offers scalability and flexibility in network expansion and device integration. This capability enables users to efficiently manage and control a wide range of devices within their industrial environment.
The device is engineered to meet the rigorous demands of industrial applications, providing robust performance and reliable operation in challenging environments. Its design ensures compatibility with a variety of industrial equipment and systems, making it suitable for diverse industrial applications and installations.
Featuring one Ethernet interface and one DeviceNet interface, the 1788-EN2DN offers a straightforward and user-friendly interface for network configuration and management. Its intuitive design simplifies setup and operation, allowing users to quickly establish connections and configure network settings as needed.
The 1788-EN2DN is designed to comply with industry standards and specifications, ensuring interoperability and compatibility with existing industrial networks and equipment. Its robust construction and durable components make it suitable for use in harsh industrial environments, where reliability and performance are paramount.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
