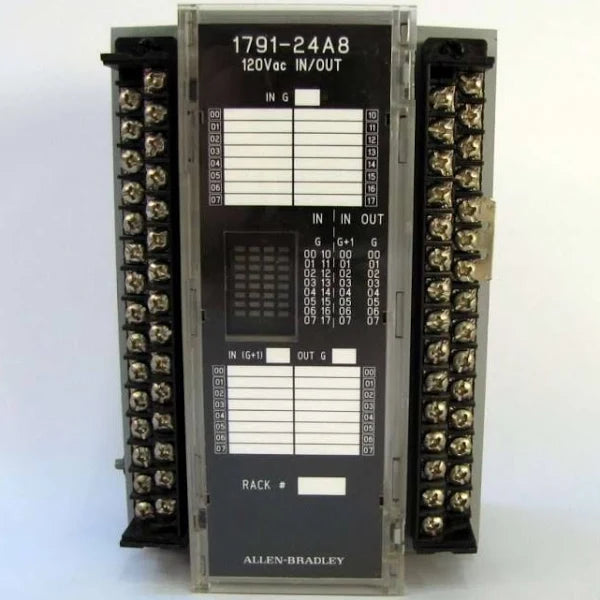

1791-24A8 | Allen-Bradley | Block I/O Module
- Regular price
- $3,375.00
- Sale price
- $3,375.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 1791-24A8
Description
The Allen-Bradley 1791-24A8 is a block I/O module designed for industrial applications. It features 24 input channels operating at 120VAC and 8 output channels also rated at 120VAC. Equipped with power supply, PLC interface, I/O connections, and signal processing circuitry, this module is essential for integrating input and output functionalities within a control system. The 1791-24A8 module is primarily utilized for the implementation of Remote I/O architecture, facilitating efficient and centralized control in industrial environments.
Technical Specifications
Specifications
Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Product Type |
Block I/O |
Part Number/Catalog No. |
1791-24A8 |
Voltage |
120V ac |
Thermal Dissipation, maximum |
63.97 BTU/Hr |
Power Dissipation, maximum |
18.76 Watts |
Mounting |
Vertical / Horizontal |
External Power, Current |
150 mA |
External Power, Voltage |
85-132VAC |
No. of Inputs |
Twenty-Four (24) |
Inputs per Block |
24 |
Input On-state Voltage Range |
79-132V ac |
Input On-state Current |
12.3mA @ 132V max. |
Input Off-state Voltage |
35V max. |
Input Off-state Current |
2.3mA min. |
No. of output Groups |
1 group of 8 |
No. of Groups |
3 groups of 8 |
No of outputs |
Eight (8) |
Outputs per Block |
8 |
Output Voltage Range |
20-123VAC |
On-state Voltage range |
79-132VAC |
UPC |
10612598124777 |
Dimensions |
6.95 x 4.35 x 3.85 in. |
Product Lifecycle Status* |
Discontinued/Obsolete |
Information About 1791-24A8
The Allen-Bradley 1791-24A8 is a block I/O module designed for industrial applications. It features Twenty-Four (24) input channels operating at 120VAC and Eight (8) output channels also rated at 120VAC. This module incorporates essential components including a power supply, PLC interface, I/O connections, and signal processing and conditioning circuitry.
With its comprehensive set of input and output channels, the 1791-24A8 module serves as a crucial component in industrial automation systems, facilitating the monitoring and control of various processes. Its design allows for seamless integration into existing control systems, enabling efficient operation and management of equipment and machinery.
The 1791-24A8 module is particularly suitable for applications requiring remote I/O architecture implementation. Its robust construction and reliable performance make it well-suited for deployment in industrial environments where reliability and durability are paramount.
By offering a total of 32 points, comprising 24 inputs and 8 outputs, the module provides flexibility and scalability to accommodate diverse control requirements. The 120VAC input and output channels ensure compatibility with standard industrial power systems, facilitating easy integration into existing infrastructures.
The module's design emphasizes ease of installation and maintenance, with provisions for both vertical and horizontal mounting configurations. This flexibility allows users to optimize space utilization and streamline installation procedures according to specific application requirements.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
