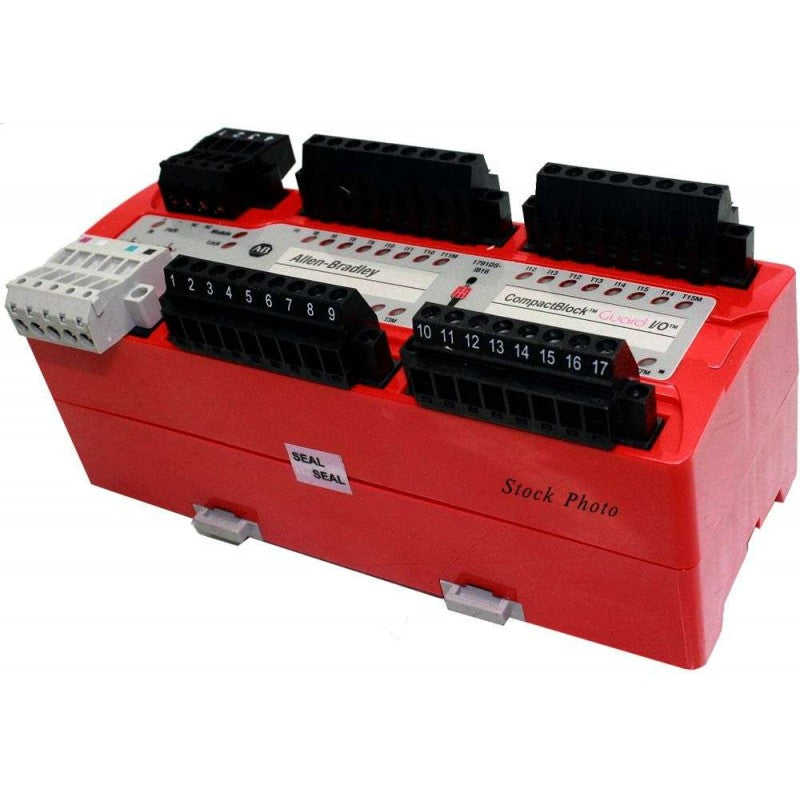

1791DS-IB16 | Allen Bradley Safety Input Module
- Regular price
- $708.00
- Sale price
- $708.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1791DS-IB16
Description
The Allen-Bradley 1791DS-IB16 is a Safety Input Module designed for use with Allen-Bradley Safety I/O systems. It provides 16 digital inputs for safety-related applications, offering secure and reliable signal processing in industrial environments to ensure compliance with safety standards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category |
PLCs and Accessories
|
| Part Number | 1791DS-IB16 |
| Subcategory |
PLC Expansion Modules
|
| Weight | 0.45 kgs |
| Power Consumption | 85 mA @ 24V dc |
| Operating Voltage Range | 20.4-26.4V dc |
| Number of Inputs | 16 |
| Input Type | Single-Channel |
| On-State Input Voltage | 11V DC min. |
| Off-State Input Voltage | 5V DC max. |
| Dimensions | 3.1 x 6.7 x 2.9 in. |
Information About 1791DS-IB16
The Allen-Bradley 1791DS-IB16 is a Safety Input Module designed for use in Safety I/O systems. It is part of the 1791DS Safety I/O family, which is specifically designed to meet the requirements of functional safety in industrial automation environments. This module ensures that safety-related input signals are processed in accordance with safety standards, such as ISO 13849-1 and IEC 61508, and is used in systems that require safety-related control and monitoring.
Key Features and Specifications:
- Model: 1791DS-IB16
- Type: Safety Input Module
- Input Channels:
- Provides 16 digital inputs for safety-related signals
- Inputs are isolated for safety and reliability in critical applications
- Input Type:
- Designed for 24V DC input signals, typically from safety devices like emergency stop buttons, safety switches, light curtains, and other safety equipment
- Safety Compliance:
- Meets relevant safety standards, including ISO 13849-1 and IEC 61508, ensuring it can be used in safety-critical applications
- Provides SIL 3 (Safety Integrity Level 3) capability for systems requiring high levels of safety
- Field Wiring:
- Easy field wiring with screw terminals for secure, durable connections
- Compatible with a wide range of industrial safety devices
- Diagnostic Features:
- Provides diagnostic LEDs to indicate the status of the inputs and to assist with troubleshooting
- Supports fail-safe operation in case of module or wiring faults
- Installation:
- Designed to be mounted on 1791DS Safety I/O system racks, which are compatible with ControlLogix or CompactLogix systems
- Rack-mounted installation for easy integration with existing control systems
- Power Supply: Powered by the backplane of the 1791DS Safety I/O system
- Environmental Ratings:
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Relative Humidity: 5% to 95% non-condensing
- Designed to operate in harsh industrial environments
- Conformance:
- UL, CE, and other regulatory certifications for industrial use
Applications:
- Safety-Related Applications: Ideal for use in systems requiring safety-related control, such as emergency stop circuits, safety interlocks, and protective guarding systems
- Industrial Automation: Used in manufacturing, material handling, packaging, and energy industries where safety is a priority
- Functional Safety: Critical for applications that require compliance with functional safety standards and SIL 3 certification
Benefits:
- High Safety Integrity: Meets SIL 3 requirements, ensuring it can be used in highly critical safety applications
- Ease of Use: Simple to install with screw terminal connections and diagnostic LEDs for quick troubleshooting
- Reliability: Provides reliable processing of safety-related signals in harsh industrial environments
- Flexible Integration: Easily integrates with ControlLogix or CompactLogix systems for seamless communication within safety-critical automation systems
The 1791DS-IB16 Safety Input Module is a crucial component in Allen-Bradley Safety I/O systems, providing reliable, safe, and compliant signal processing for safety-critical applications in industrial environments.
