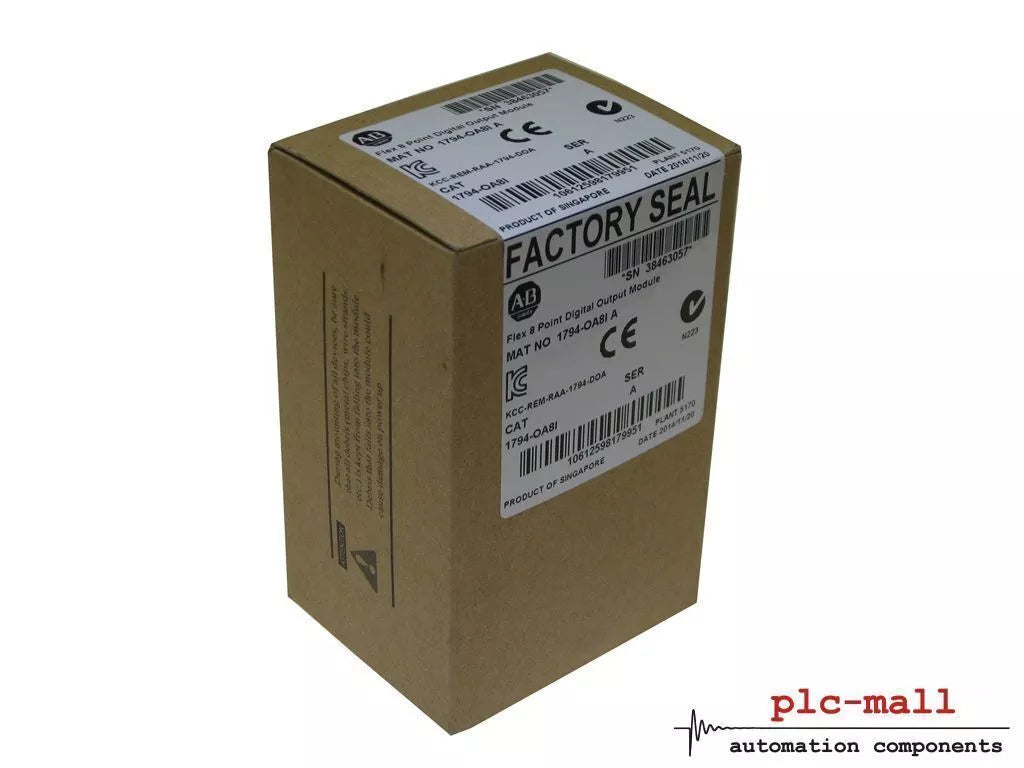

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1794-0A8I is an A Flex 8-Point Digital Output Module designed for industrial automation systems. It prov...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1794-0A8I
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1794-0A8I

Description / Specifications

Description

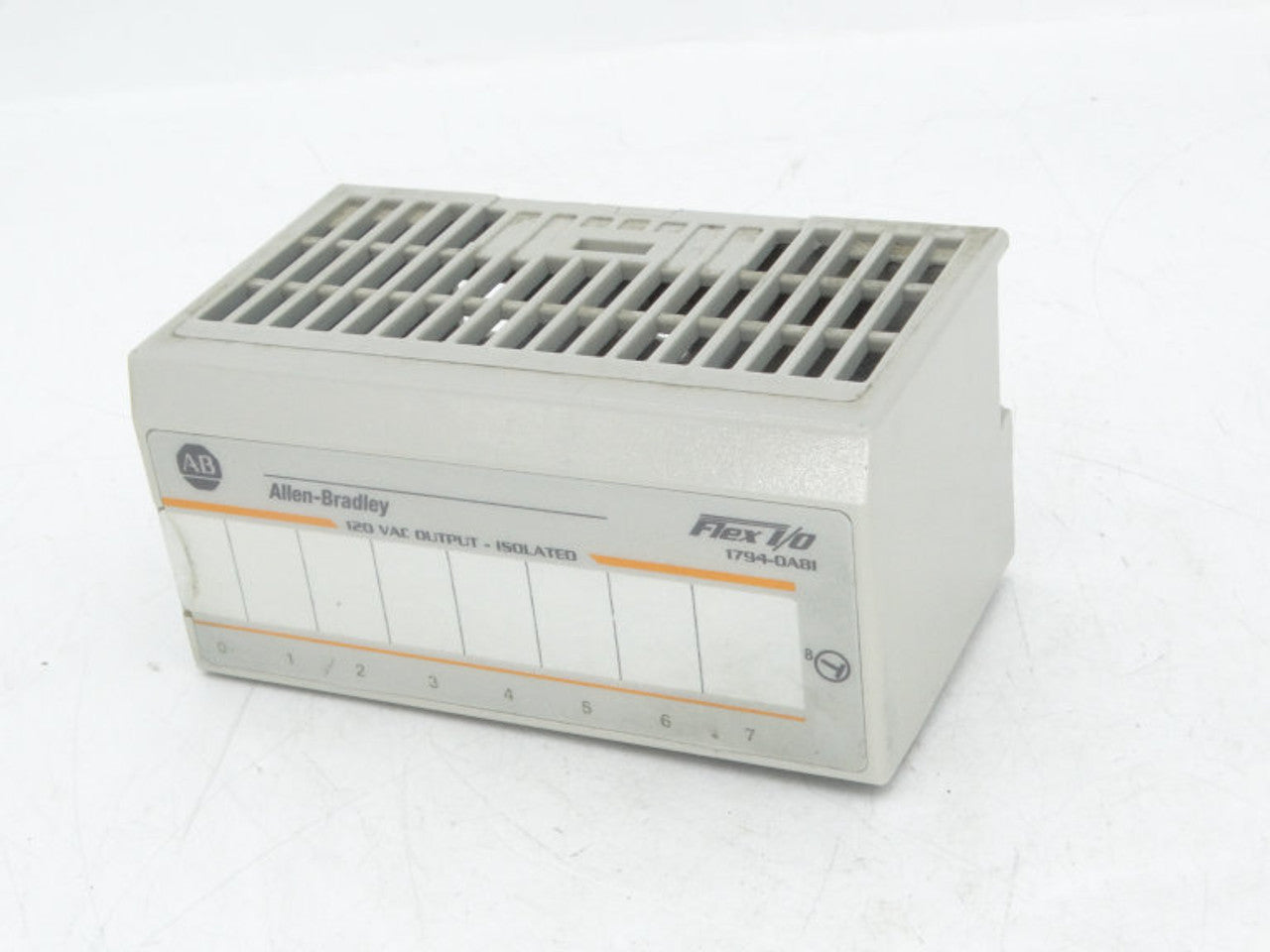

The Allen-Bradley 1794-0A8I Flex I/O Digital Output Module has 8 Isolated Outputs, a 120V AC Output Voltage nom., and a 4.0A Output Current Rating. It also operates with a 1.0V @ 0.5A max. On-state Voltage Drop max. and a 2.25mA Off-state Leakage Current max..



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1794-0A8I
Product Type Flex I/O Digital Output Module
Outputs 8 Isolated
Output Voltage nom. 120V AC
Output Current Rating 4.0A
On-state Current min. 5mA per Output
On-state Voltage Drop max. 1.0V @ 0.5A max.
Off-state Leakage Current max. 2.25mA
Isolation Voltage 120V Continuous
Flexbus Current 80mA @ 5V DC
Power Dissipation 4.1W @ 0.5A max.
Thermal Dissipation 14.0 BTU/hr. @ 0.5A max.
Series A





Information About 1794-0A8I

The 1794-0A8I module is a FLEX I/O AC digital output module manufactured by Allen-Bradley/Rockwell Automation. This 8-channel digital output module is part of the distributed I/O system that is used to connect actuators that can be triggered by the process logic that is programmed into the industrial automation controller. In this way, the 1794-0A8I module is the interface of the PLC. This module is installed by inserting it into a terminal base that has a keyswitch which must be put in Position 8. Terminal bases compatible with this module are the 1794-TB3S, 1794-TB2, 1794-TB3, 1794-TBN, and the 1794-TBNF terminal bases. Wiring to terminals on these terminal bases means that the individual isolated output is connected to the even number terminal and 120 Volts AC power is connected to the adjacent odd number terminal. Individually-isolated 120 Volts AC common terminals should be appropriately connected to each output device. When any output is in the active state, the corresponding LED indicator turns yellow on the field side of the housing.

The output current rating of the Allen-Bradley 1794-0A8I FLEX I/O AC digital output module is 4 Amps, which means that each output can generate up to 500 mA. The isolation voltage on the module is 120 Volts in the continuous mode (either channel to channel and field to backplane) and 1250 Volts AC for 60 seconds (channel to channel only). The 1794-0A8I module dissipates 4.1 Watts at 0.5 Amps of current and 6.3 Watts at 1 Amp of current. The recommended fusing for the module is 1.6 Amps, 250 Volts AC slow-blow fuses. The module can be installed in surroundings with temperatures between -20 and 55 degrees Celsius. Its dimensions are 94 millimeters by 94 millimeters by 69 millimeters.
