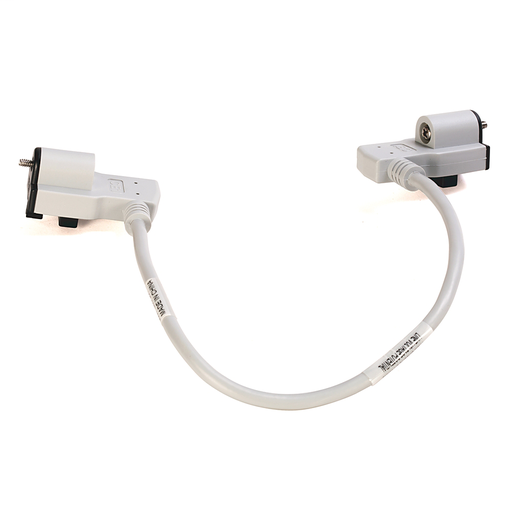

1794-CE1 | Rockwell Automation FLEX I/O Extender Cable 1 ft (0.3 m)
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1794-CE1
Description
The 1794-CE1 cable is an Allen-Bradley/Rockwell Automation Flex I/O 1794 series interconnect cable. Only 1 interconnect cable should be used in a given Flex I/O system. The 1794-CE1 interconnect cable is 1 foot long. This cable can be used with DIN Rail-mounted Flex I/O systems and with panel and wall-mounted Flex I/O systems. The 1794-CE1 interconnect cable has 2 terminals for storing energy and it is a passive electrical component.
Technical Specifications
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1794-CE1 |
| Product Type | Extended-local I/O Cable |
| Length | 1 ft. |
| Function | PLC - extension |
| Suitable for input board PLC | yes |
| Suitable for output card PLC | yes |
| Type of electrical connection, box-sided | Screw connection |
| Type of electrical connection, field-sided | Screw connection |
Information About 1794-CE1
The 1794-CE1 is an Allen-Bradley extended local interconnect cable. It is 1 foot long. This cable is used when an operator needs to make connections between two devices or more. It is also used to join electrical conductors to the terminals of other electronic devices and to other electrical conductors. This cable is a passive electrical component which features two terminals that store energy in their magnetic fields. When installing this cable, more than one cable should not be used per system. This cable is used for DIN rail mounting. When installing the 1794-CE1 on an existing DIN mount system, the plug from the male Flexbus connector should be removed.
The 1794-CE1 should be inserted into the mating connector that is on the terminal base unit’s right side. When this happens, the operator should then press it firmly to seal it. The position of the hole which is on the mounting surface is marked using a drill bit. The cable is then screwed in by the screws supplied in its kit. During this operation, the users need to make sure that the modules that are located under the panel that is being mounted are covered. This helps in preventing chips from falling into the module and causing shorting out on the backplane. The snap-on washer which locks the cable should then be pushed to lock it and the DIN rail screwed in the cable end. Apart from DIN rail mounting, the 1794-CE1 can also be installed on a panel. The procedure of installing this cable on a panel is similar to that of the DIN rail. This cable is coated to protect it from getting damaged and also to ensure the safety of the operators. It prevents them from being shocked by the electricity. This cable should be kept away from fire as it may damage it.
Manufacturer information
Rockwell Automation, is a global industrial automation leader. They provide cutting-edge control and information solutions, software, and services for a wide range of industries. With a focus on productivity, sustainability, and innovation, Rockwell Automation helps businesses worldwide optimize their operations and achieve better results. Their commitment to advancing automation technology makes them a trusted partner for industrial efficiency and digital transformation.
