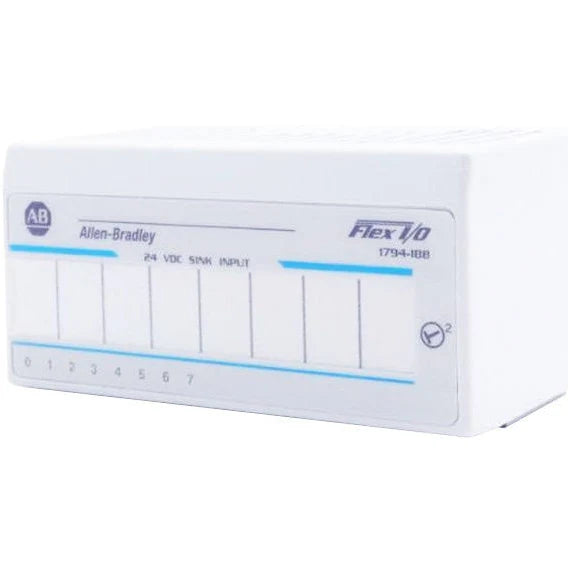

1794-IB8 | Allen-Bradley FLEX I/O Input Module, 24V DC, 8 Sink Inputs
1794-IB8 | Allen-Bradley FLEX I/O Input Module, 24V DC, 8 Sink Inputs
Part #: 1794-IB8 Manufactured by: Allen-Bradley

1794-IB8 | Allen-Bradley FLEX I/O Input Module, 24V DC, 8 Sink Inputs

Regular price
$251.00
Sale price
$251.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
The Allen-Bradley 1794-IB8 Flex I/O Digital Input Modules has 8 Current Sinking Inputs, a 10V DC On-state Voltage min., an...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1794-IB8
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1794-IB8 | Allen-Bradley FLEX I/O Input Module, 24V DC, 8 Sink Inputs
    1794-IB8 | Allen-Bradley FLEX I/O Input Module, 24V DC, 8 Sink Inputs
1794-IB8 | Allen-Bradley FLEX I/O Input Module, 24V DC, 8 Sink Inputs
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1794-IB8

Description / Specifications

Description

The Allen-Bradley/Rockwell Automation 1794-IB8 digital input module is available through the Allen-Bradley Flex I/O 1794 series. It is DC-powered and it has 8 current sinking inputs. The 1794-IB8 digital input module has on-state voltage ratings of 10 Volts DC minimum and 31.2 Volts DC maximum. Additionally, the on-state current ratings of this input module include 2 milliamps minimum and 12 milliamps maximum. The 1794-IB8 digital input module supports the Ethernet/IP, ControlNet, and DeviceNet networks.


Technical Specifications


Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1794-IB8
Product Type Flex I/O Digital Input Modules
Inputs 8 Current Sinking
On-state Voltage min. 10V DC
On-state Voltage max. 31.2V DC
On-state Current min. 2.0mA min.
On-state Current max. 12.0mA
Off-state Voltage max. 5V DC
Off-state Current max. 1.5mA
Nominal Input Impedance 4.6 k
Flexbus Current 20mA @ 5V DC
Power Dissipation 3.5W @ 31.2V DC max.




Information About 1794-IB8

The Allen-Bradley 1794-IB8 is a Flex 1794 Digital DC Input module. It is fitted inside the terminal bus making a connection with the field devices and the I/O bus. Modules can be inserted or removed under power since the I/O module does not have any direct wiring. It in turn saves time and removes system restarting inefficiency. It is very popular because of its reliability, flexibility, cost-effectiveness, and modularity.

The 1794-IB8 module has 8 current sinking inputs with 24V DC nominal On-State voltage, 10 – 31.2V DC On-State voltage range, and 1.5mA minimum Off-State current. It has a maximum power dissipation of 3.5W at 31.2V DC. Terminal base units compatible with it are the 1794-TB3 and the 1794-TB3S. It is installed using a DIN rail. It has various communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.

The 1794-IB8 module has 16 yellow LEDs as status indicators for each channel. LEDs indicate corresponding input devices and output signals. It also has D and XT versions of standard modules for diagnostics and extreme environments, reducing panel and maintenance costs. It has a 0 - 55 °C (32 - 131 °F) operating temperature and a 5 - 95% noncondensing relative humidity.
