1794-OB8 | Allen-Bradley Flex 8-Point Digital Output Module
- Regular price
- $193.80
- Sale price
- $193.80
- Regular price
-
Couldn't load pickup availability
Do you need help?

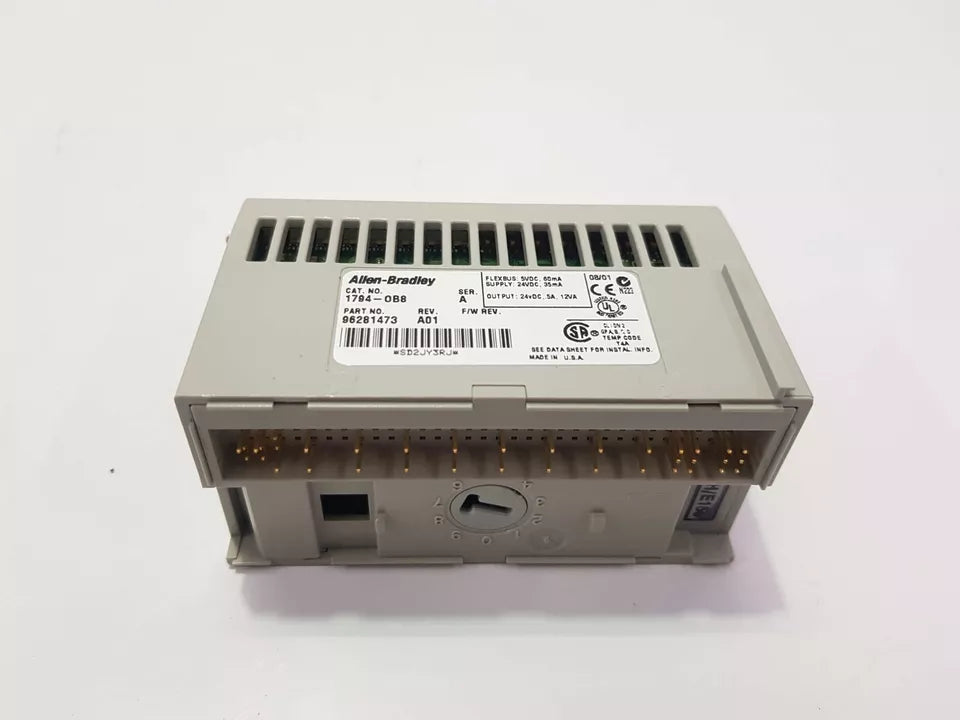

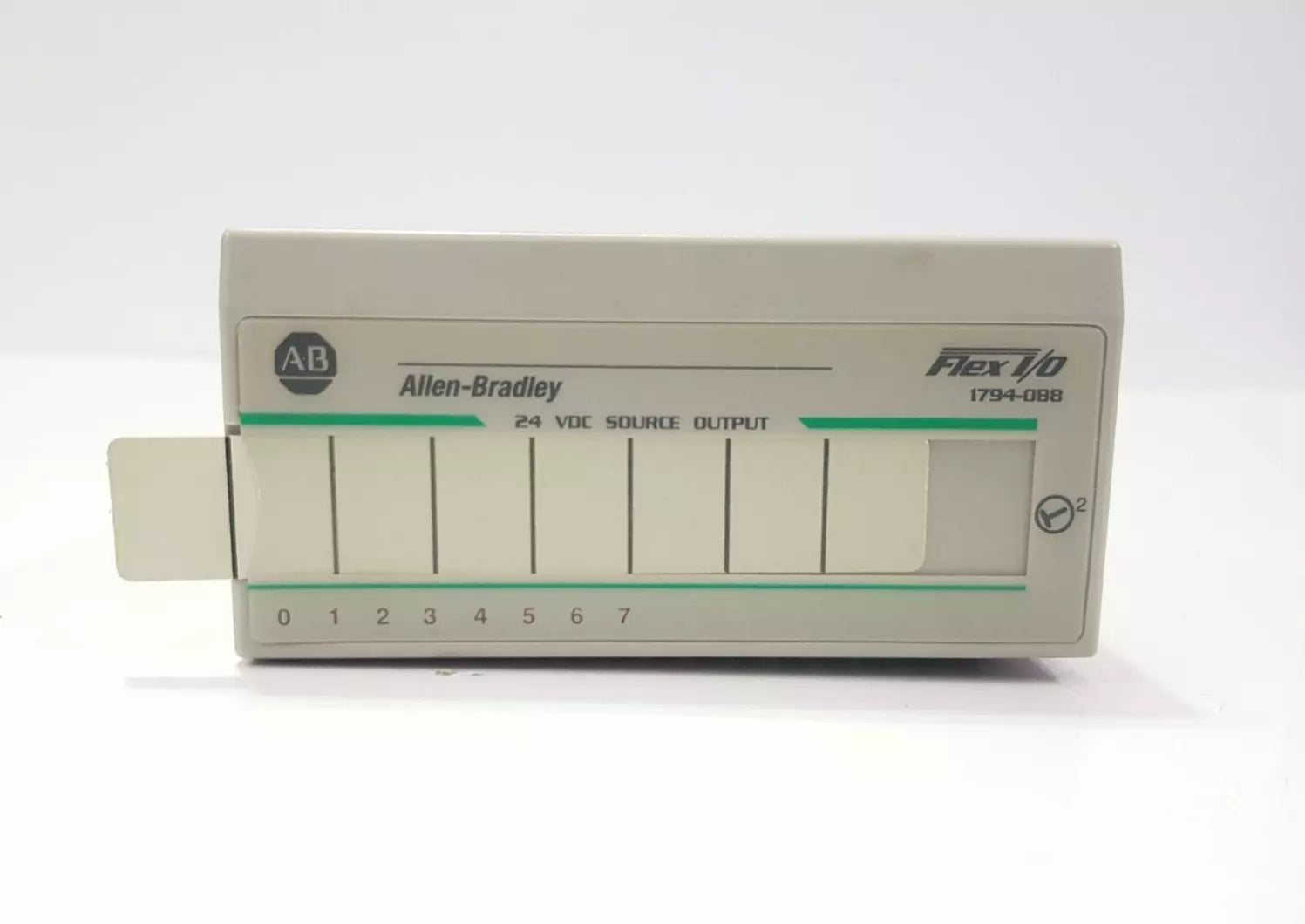

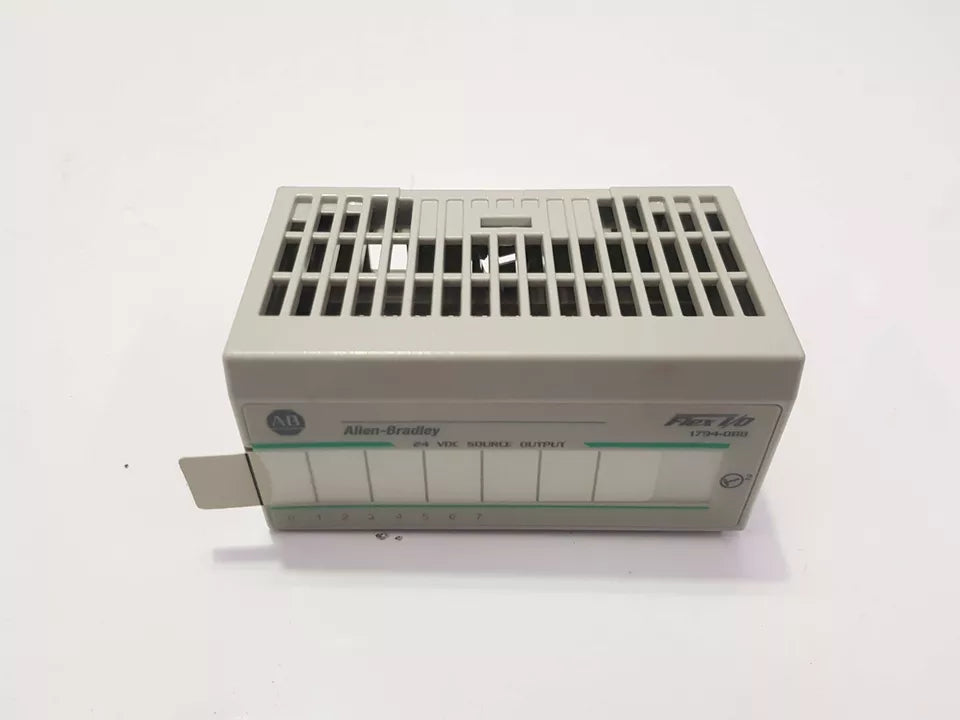

Product Description P/N: 1794-OB8
Description
The Allen-Bradley 1794-OB8 is an eight-point DC digital output module designed for use in FLEX I/O distributed control systems. It provides 24V DC sourcing outputs for driving solenoids, relays, indicators, and other field devices. Compact, modular, and DIN-rail mountable, the 1794-OB8 is ideal for machine automation, process control, and in-cabinet distributed I/O applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 1794-OB8 |
| Subcategory | Digital Output Modules |
| Product Type | FLEX I/O Digital DC Output Module |
| Outputs | 8 sourcing digital outputs |
| Nominal Voltage | 24V DC |
| Voltage Range | 10–31.2V DC |
| On-State Current (max) | 500 mA per channel |
| Output Current (max module) | 4 A |
| On-State Voltage Drop (max) | 0.5V DC |
| Off-State Leakage (max) | 0.5 mA |
| Isolation Voltage | 50V continuous |
| Output Delay | 0.5 ms ON / 1 ms OFF |
| FlexBus Current | 60 mA @ 5V DC |
| Power Dissipation | 3.3 W max |
| Thermal Dissipation | 11.2 BTU/hr max |
| Mounting Type | DIN rail / panel (via base) |
| Compatible Bases | 1794-TB3, 1794-TB3S, 1794-TBKD |
| Standards | CE, UL, cUL, C-TICK, GOST, KC, Marine |
| Enclosure | Open-style (IP20) |
| Operating Temperature | 0–55 °C (32–131 °F) |
| Applications | In-cabinet distributed I/O |
| Response Time | 1 ms |
| Weight | 0.2 lb |
Information About 1794-OB8
The 1794-OB8 is part of the Allen-Bradley FLEX I/O family, designed for modular and scalable distributed I/O systems. It provides 8 DC sourcing outputs with an operating range of 10–31.2V DC and supports an external power supply with up to 5% AC ripple. The module ensures fast switching performance with a maximum output delay time of 0.5 ms (off-to-on) and 1 ms (on-to-off). Compatible terminal bases include 1794-TB3, 1794-TB3S, and 1794-TBKD, which allow quick installation and wiring. The design supports RIUP (Removal and Insertion Under Power), minimizing downtime by enabling module replacement without shutting down the system. The 1794-OB8 integrates into control architectures via ControlNet, DeviceNet, EtherNet/IP, or Universal Remote I/O adapters, ensuring flexible communication. It also includes 16 yellow LED indicators for clear output channel status monitoring. With operating conditions of 0–55 °C and 5–95% non-condensing humidity, plus extended XT versions rated -20 to 70 °C, the module is suitable for both standard and harsh industrial environments.
Key Features:
- Design: Compact FLEX I/O module with 8 DC sourcing output channels.
- Voltage Range: Operates at 10–31.2V DC with nominal 24V output.
- Performance: Fast switching with 0.5 ms (ON) and 1 ms (OFF) delay times.
- Connectivity: Compatible with terminal bases 1794-TB3, 1794-TB3S, and 1794-TBKD.
- Communication: Supports integration via ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.
- Ease of Maintenance: RIUP capability allows hot-swapping without shutting down the system.
- Diagnostics: Equipped with 16 yellow LED indicators for per-channel output status.
- Durability: Standard operating range 0–55 °C, with XT versions rated for -20–70 °C.
The 1794-OB8 delivers flexible, reliable, and high-performance digital output control for industrial automation systems.
