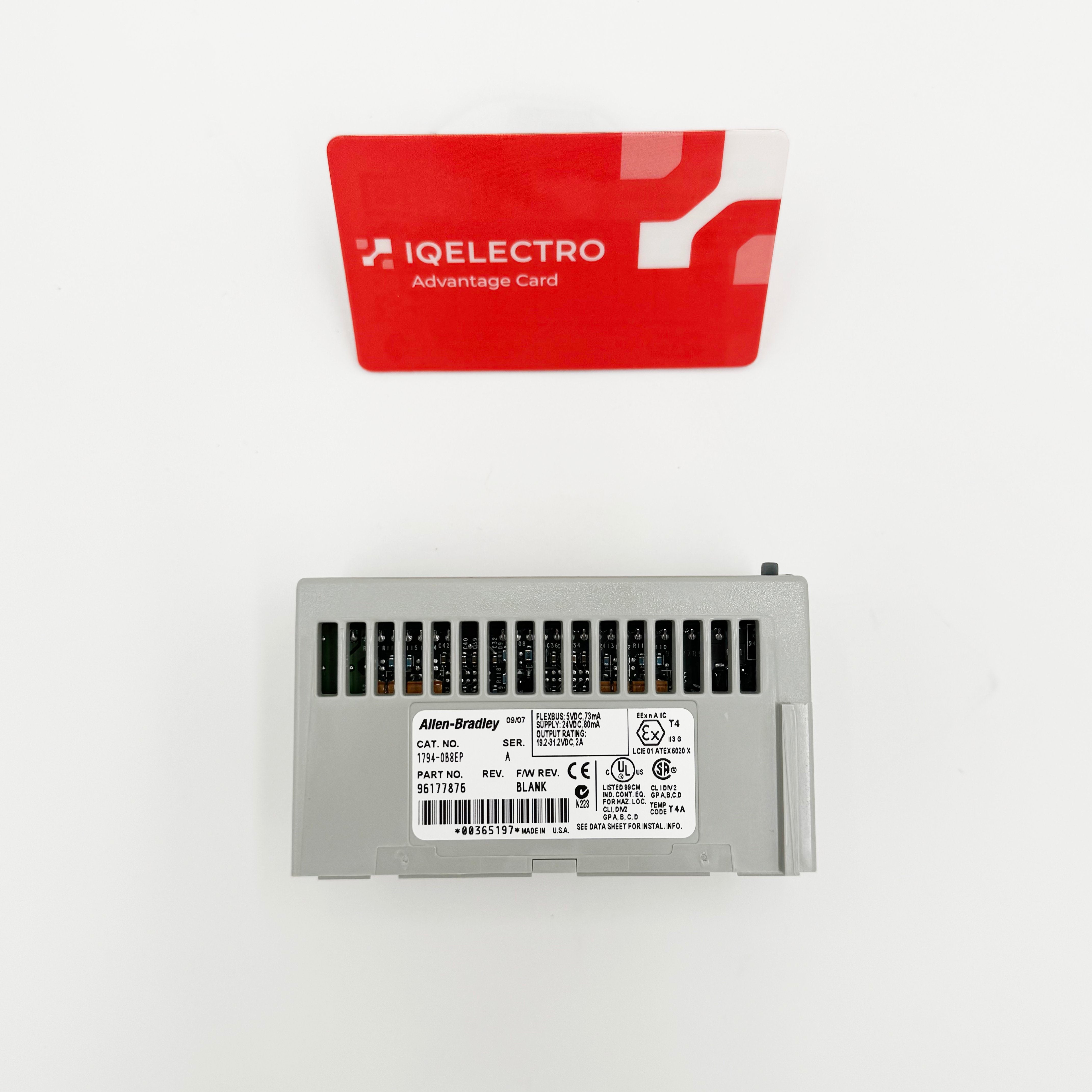

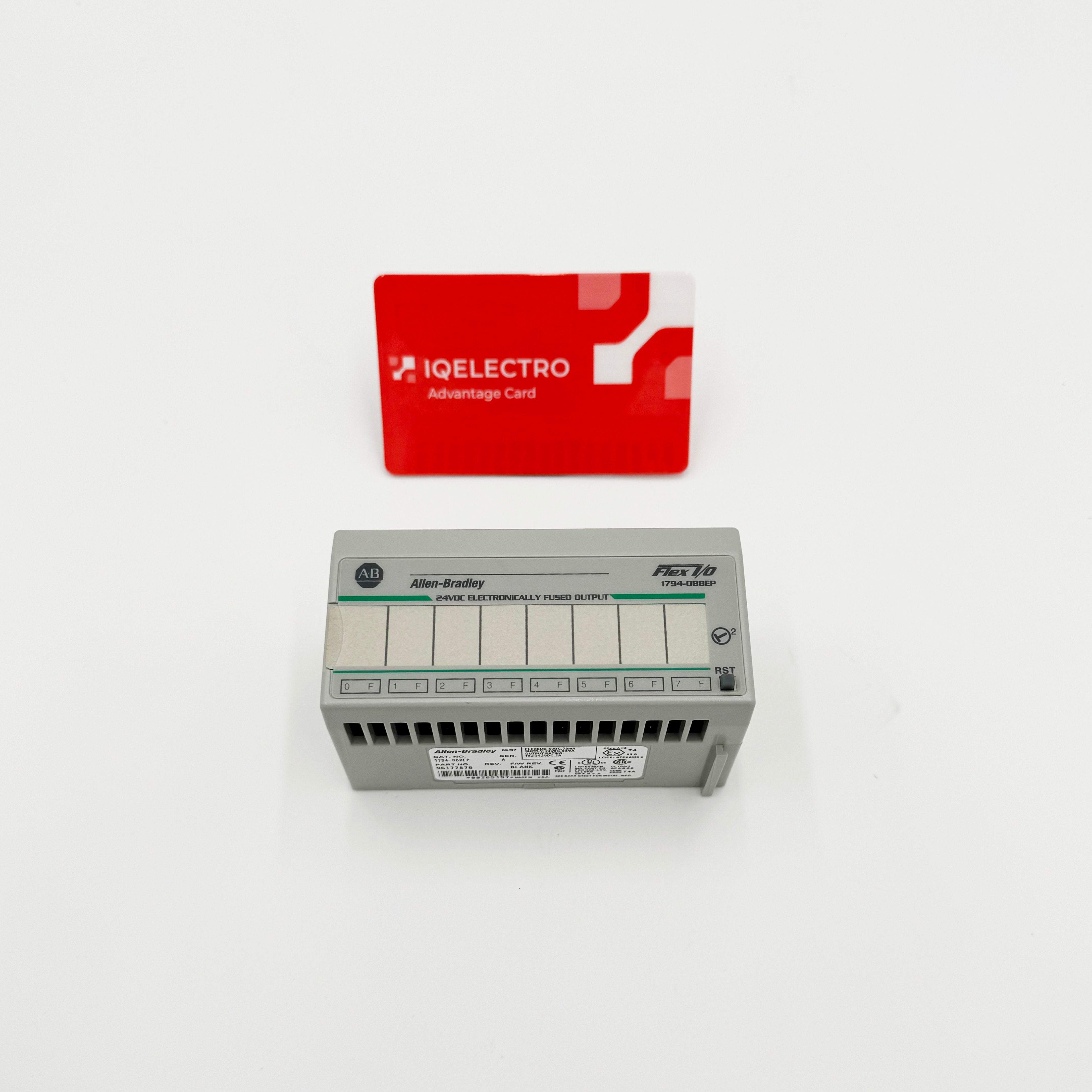

1794-OB8EP | Allen-Bradley FLEX Output Module 24VDC 8-Port Electronically Fused
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1794-OB8EP
Description
The Allen-Bradley 1794-OB8EP Flex I/O Digital DC Output Module has 8 Sourcing Current Outputs, a 24V DC On-state Voltage nom., and a 2A max. per Output Output Current Rating. It also operates with a 0.2V DC On-state Voltage Drop max. and a 0.5mA Off-state Leakage Current max..
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1794-OB8EP |
| Product Type | Flex I/O Digital DC Output Module |
| Outputs | 8 Sourcing Current |
| On-state Voltage nom. | 24V DC |
| Output Current Rating | 2A max. per Output |
| On-state Current max. | 2A per Channel |
| On-state Voltage Drop max. | 0.2V DC |
| Off-state Leakage Current max. | 0.5mA |
| Isolation Voltage | 50V Continuous |
| Flexbus Current | 73mA @ 5V DC |
| Power Dissipation | 5.5W @ 31.2V DC max. |
| Thermal Dissipation | 18.8 BTU/hr. @ 31.2V DC max. |
Information About 1794-OB8EP
The Allen-Bradley 1794-OB8EP is a 1794 FLEX Digital DC Output Module. It is an Electronic Fuse (EP) module which acts to disconnect the output if a fault occurs. The 1794-OB8EP is fitted inside the terminal bus, making a connection with the field devices and the I/O bus. Modules can be inserted or removed under power since the I/O module does not have any direct wiring. It in turn saves time and removes system restarting inefficiency.
The 1794-OB8EP module has 8 current sourcing outputs. It has 24V DC nominal On-State output voltage, 19.2 – 31.2V DC On-State output voltage, and 2A per channel with 10A per module maximum On-State output current. It has a maximum output delay time of 0.1ms from Off-to-On and vice versa. It has a maximum power dissipation of 5.5W at 31.2V DC. Terminal Base units compatible with it are the 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN, and the 1794-TBKD. The 1794-OB8EP has an external power supply of 19.2 - 31.2V DC voltage with a 5% AC ripple and 20 - 35mA current. It is installed using a DIN rail by simply snapping it onto the DIN rail. It has various communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.
The 1794-OB8EP module has 16 yellow LED status indicators for each channel corresponding input device and output signal. It also has XT versions of standard modules for operating in extreme environments. This reduces panel and maintenance costs.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
