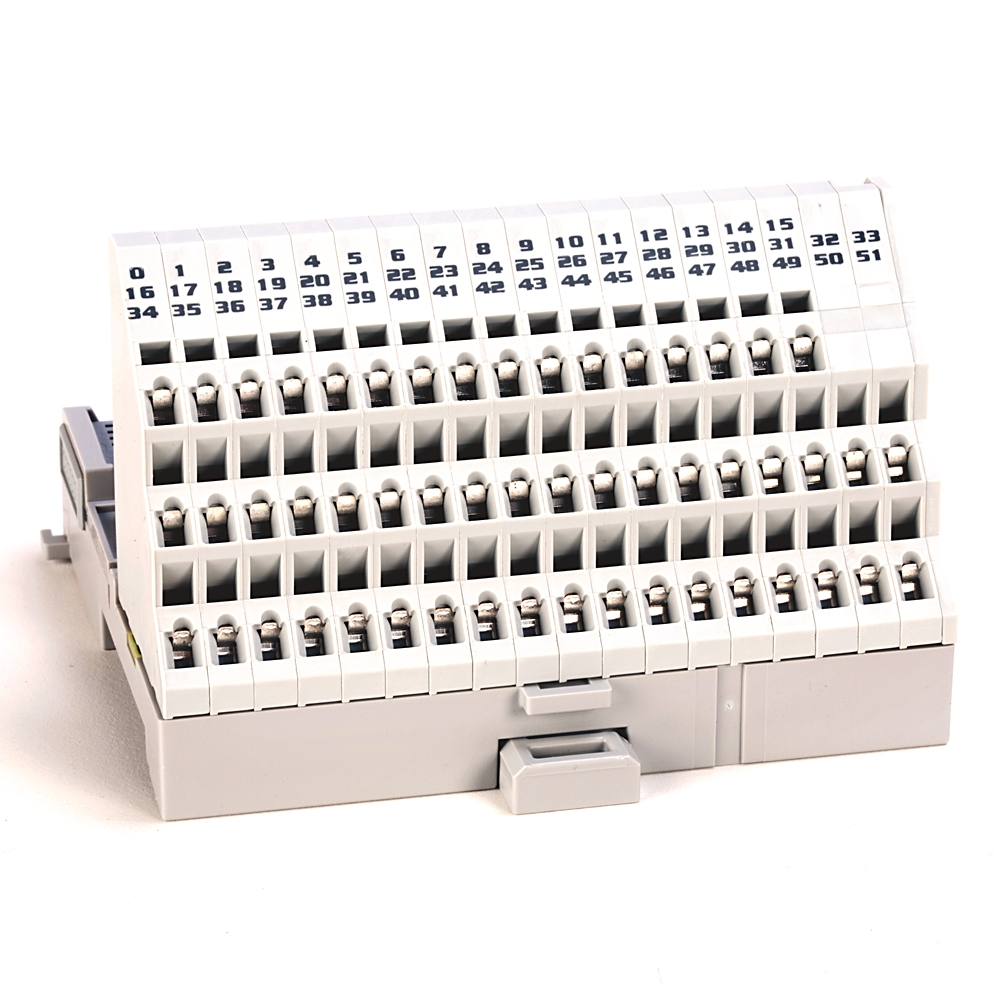

1794-TB32S | Allen Bradley Terminal Base Unit

Description

The Allen-Bradley 1794-TB32S is a terminal base unit for the Flex I/O system, providing a compact and reliable connection point for wiring Flex I/O modules. It supports both input and output connections, ensuring efficient system integration and maintenance.

Technical Specifications

Information About 1794-TB32S

The Allen-Bradley 1794-TB32S is a terminal base unit designed for use with the Flex I/O system, offering a robust and efficient wiring solution for Flex I/O modules. This base unit supports input and output connections, ensuring seamless communication between modules and the broader automation system.

Key Features:

• Model: 1794-TB32S
• Type: Terminal Base Unit
• Manufacturer: Allen-Bradley
• Compatibility: Designed for use with Allen-Bradley Flex I/O modules
• Wiring Capacity: Provides connection points for up to 32 input or output signals
• Spring-Clamp Terminals: Features spring-clamp technology for secure and reliable wiring
• DIN Rail Mounting: Easy to install on standard DIN rails, saving time and space
• Compact Design: Space-efficient design suitable for distributed control systems
• LED Indicators: Optional status indicators for monitoring connectivity and troubleshooting
• Durability: Built to withstand industrial environments, ensuring long-term reliability

Applications:

• Industrial Automation: Acts as a wiring interface for connecting sensors, actuators, and other field devices to the Flex I/O system
• Distributed Control Systems: Enables modular and scalable control architectures
• Process Control: Facilitates efficient wiring and signal distribution in automated systems
• Machine Control: Provides a reliable wiring solution for integrating I/O modules in machinery

The Allen-Bradley 1794-TB32S terminal base unit simplifies wiring and enhances the functionality of the Flex I/O system, making it an ideal solution for modular and distributed automation systems.
