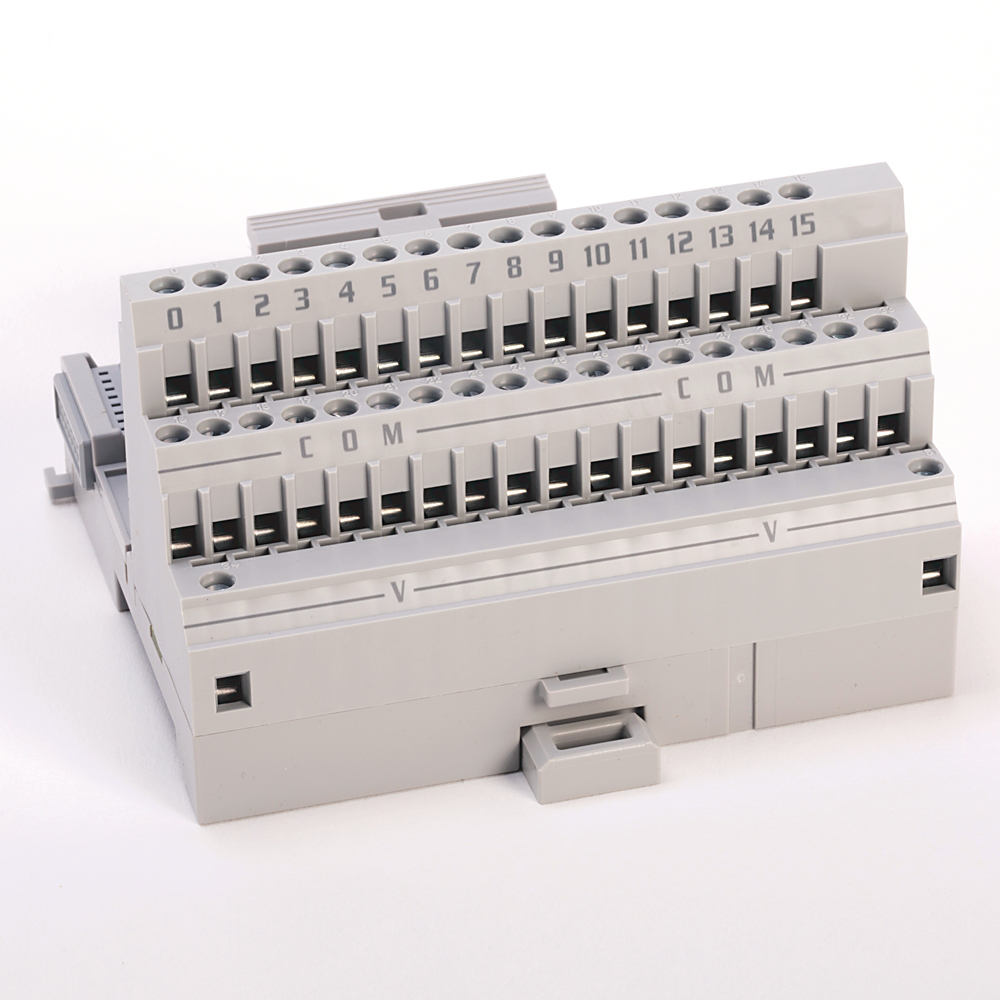

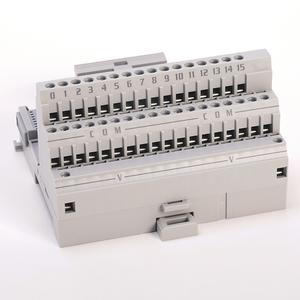

1794-TB3GS | Allen Bradley Flex I/O Terminal Base 3-Wire Grounded
- Regular price
- $675.00
- Sale price
- $675.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1794-TB3GS
Description
The Allen-Bradley 1794-TB3GS is a Flex I/O Terminal Base Unit featuring 40 terminals, including 36 I/O terminals, 2 common terminals, and 2 voltage terminals. Designed with a grounded and spring-type connection, it supports a maximum voltage rating of 31.2V DC and a current capacity of 2A.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | Panel Accessories |
| Part Number |
1794-TB3GS |
| Subcategory | Terminal Strip Wiring |
| Product Type | Flex I/O Terminal Base Unit |
| Terminal Screw Torque | 0.56-0.79 Nm |
| Supply Voltage Range max. | 31.2V DC/AC, 50/60Hz, 10A |
| Isolation Voltage | 50V Continuous max. |
| Voltage Rating | 24V DC/AC |
| Wire Size | 0.34-3.3mm^2 |
| Dimensions | 94x94x69 mm |
Information About 1794-TB3GS
The 1794-TB3GS terminal base unit is a reliable component from Allen-Bradley’s Flex I/O 1794 series, designed for robust and efficient wiring in industrial automation systems. It provides 40 terminals, including dedicated connections for common and voltage supply, and 36 I/O terminals for versatile applications. With a maximum supply voltage rating of 31.2V DC/AC and isolation voltage of 50V continuous, it ensures safe and stable operation. The terminal base supports a torque range of 0.56–0.79 Nm for secure connections. Its grounded and spring-type design enhances durability and ease of use, making it ideal for demanding environments.
Key Features:
- Terminals: 40 total terminals, including 36 I/O terminals, 2 common terminals, and 2 voltage terminals.
- Voltage Rating: Supports up to 31.2V DC/AC with a 24V nominal rating.
- Current Capacity: Operates at a maximum of 2A for efficient power distribution.
- Isolation Voltage: Rated at 50V continuous for enhanced safety.
- Connection Type: Grounded and spring-type terminals for durability and reliability.
- Torque Range: Terminal screw torque of 0.56–0.79 Nm for secure connections.
The Allen-Bradley 1794-TB3GS terminal base unit provides reliable and efficient wiring capabilities for Flex I/O systems, ensuring flexibility, safety, and robust performance in industrial environments.
