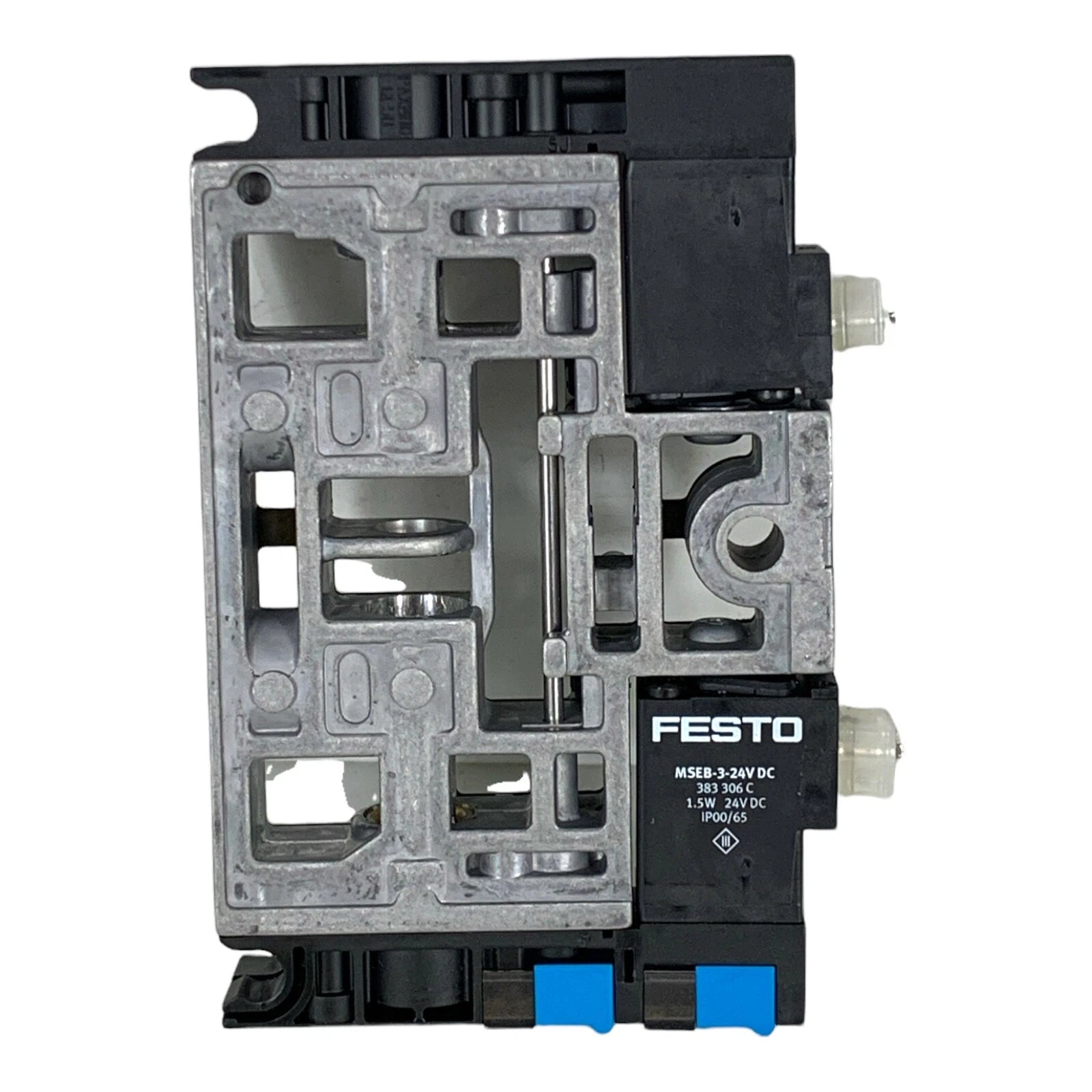

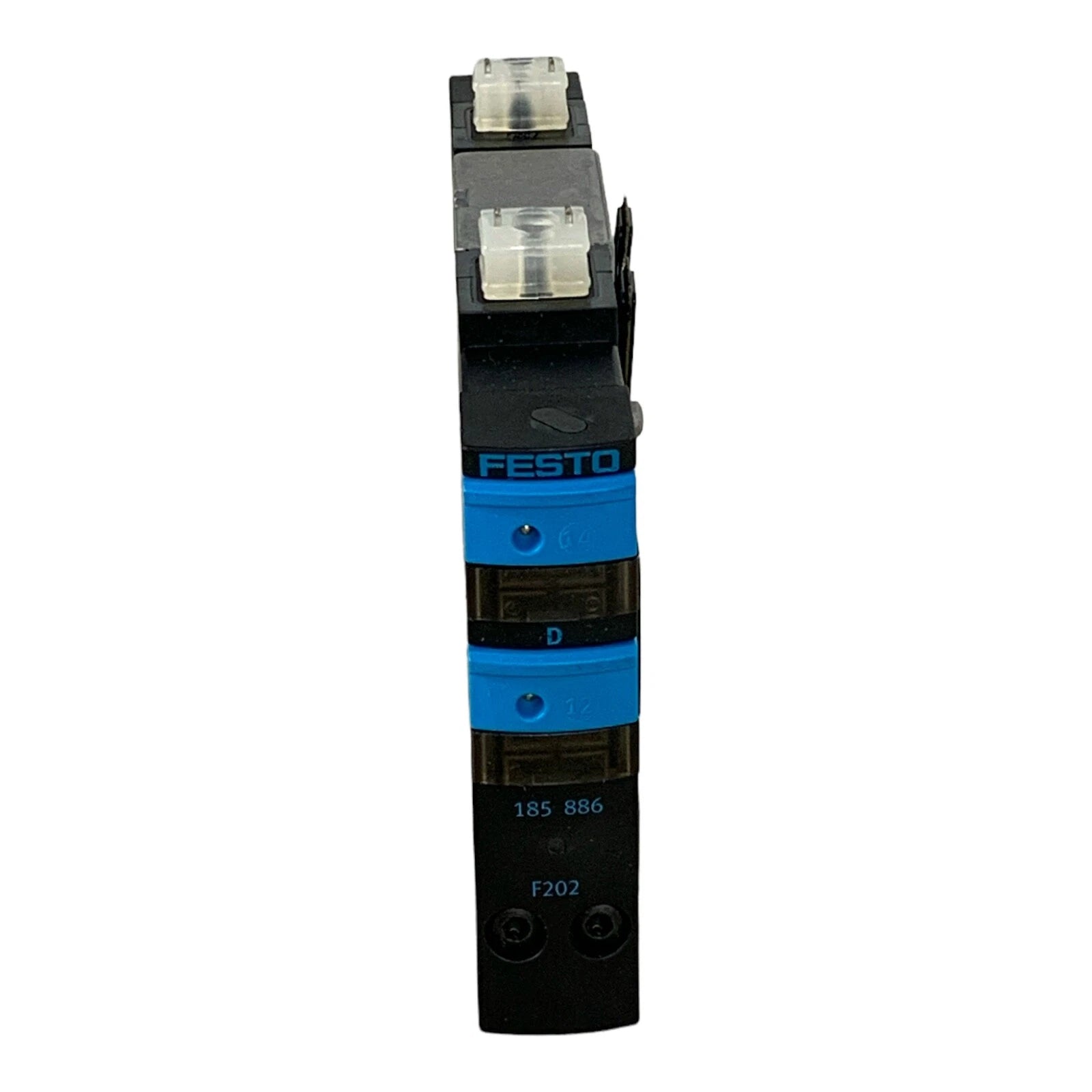

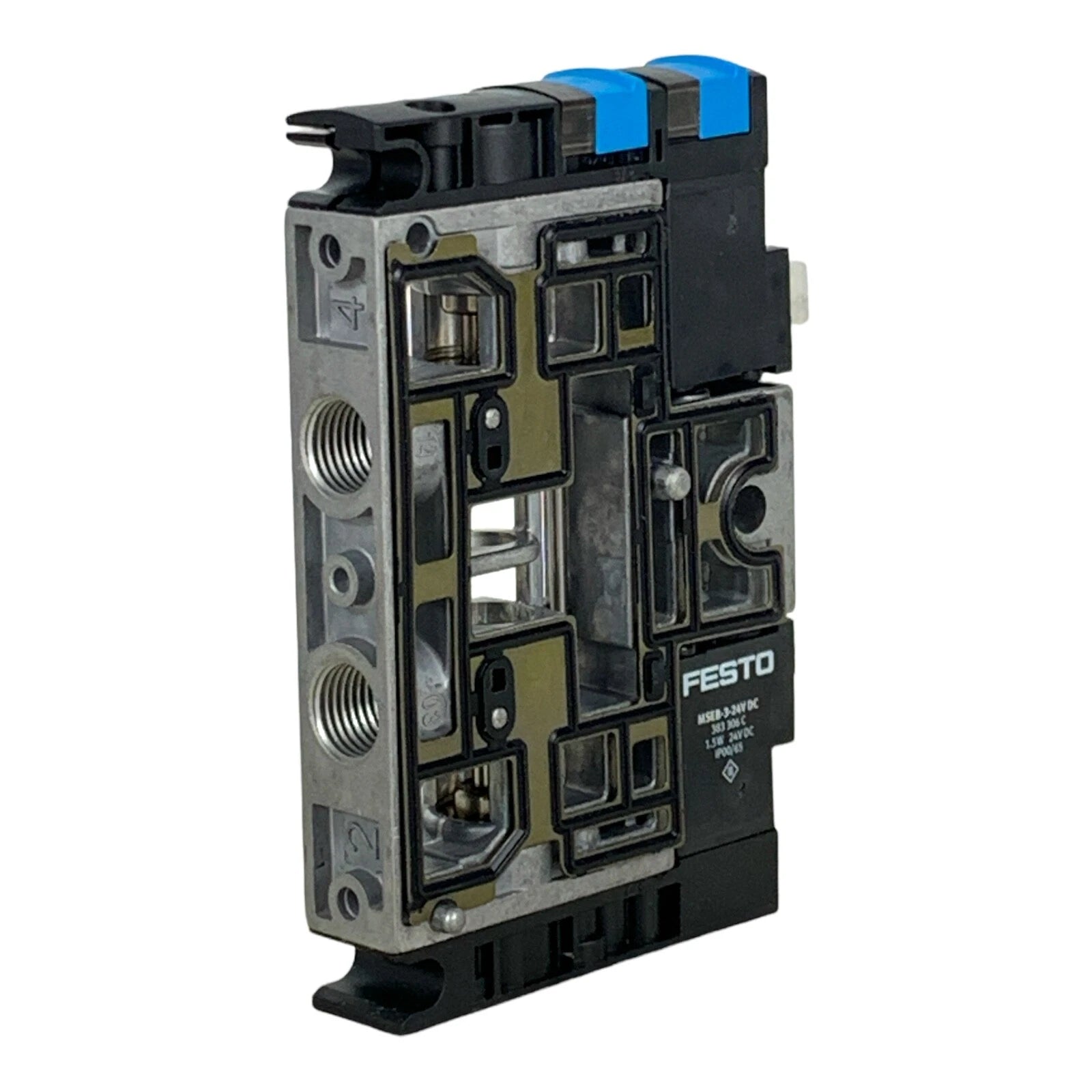

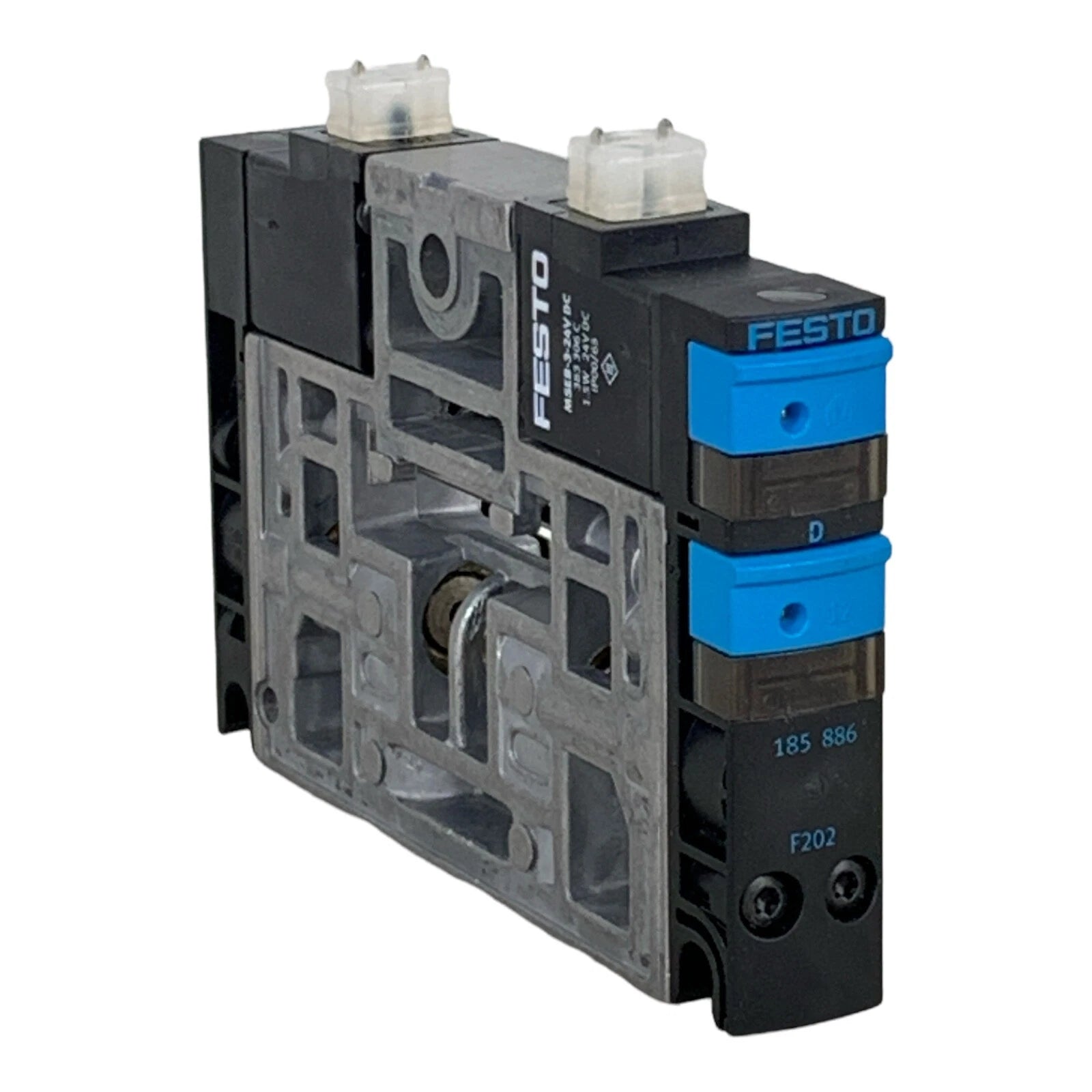

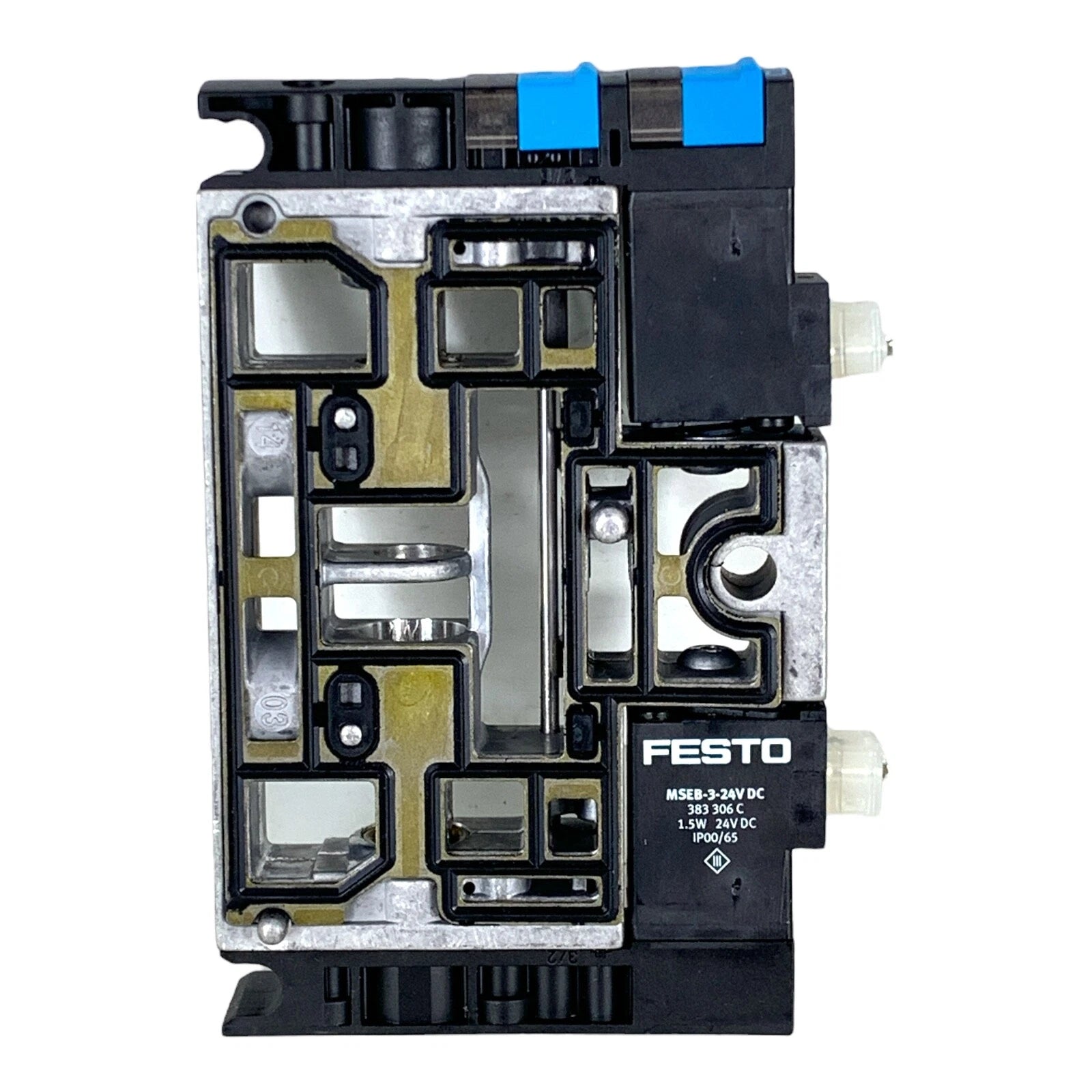

185886 | Festo Air Solenoid Valve 18 mm
- Regular price
- $347.00
- Sale price
- $347.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 185886
Description
The 185886 is a compact dual 2/2-way electrical solenoid valve designed for use in Festo CPV valve terminals. With an 18 mm valve size and 1600 l/min nominal flow rate, it provides reliable monostable control with non-reversible flow and fast switching performance. The unit operates at 24 VDC and supports pressures from –0.9 to 10 bar, making it ideal for precise pneumatic actuation in industrial systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Festo |
| Category |
Valves
|
| Part Number | 185886 |
| Subcategory | Solenoid Valve |
| Valve Function | 2×2/2 closed, monostable |
| Actuation Type | Electrical |
| Valve Size | 18 mm |
| Standard Nominal Flow Rate | 1600 l/min |
| Operating Voltage | 24 VDC |
| Operating Pressure | –0.9 to 10 bar |
| Pilot Pressure | 3 to 8 bar (0.3 to 0.8 MPa) |
| Pneumatic Ports | G1/4 (ports 2 and 4), others common |
| Structural Design | Piston gate valve |
| Reset Method | Pneumatic spring |
| Degree of Protection | IP65 |
| Mounting Position | Any (through-hole mounting) |
| Material – Housing | POM, PPS, Steel |
| Material – Seals | HNBR, NBR |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4], oiled possible |
| Temperature Range | –5 °C to +50 °C (ambient and medium) |
| Storage Temperature | –20 °C to +40 °C |
| Manual Override | Detenting and non-detenting |
| Electrical Power Consumption | 1.5 W |
| Duty Cycle | 100% |
| Exhaust Air Function | Without flow control |
| Flow Direction | Non-reversible |
| Sealing Principle | Soft sealing |
| Corrosion Resistance Class | CRC 2 (moderate corrosion stress) |
| Certification | C-Tick, RoHS, VDMA24364-B1/B2-L |
| Weight |
0.40 lbs (≈260 g) |
Information About 185886
The 185886, also known as CPV18-M1H-2X2-GLS-1/4, is a high-speed solenoid air valve integrated into the Festo CPV series valve terminal systems. This model features two internally housed 2/2-way valves, both normally closed and pilot-controlled via electrical actuation. Its structural design is based on a piston gate configuration, offering 1600 l/min flow with G1/4 pneumatic ports and soft-sealing elements for efficient airflow and durability. Rated IP65 and compliant with RoHS and VDMA standards, this valve is built to perform in moderate corrosion environments and supports oil-lubricated compressed air per ISO 8573-1:2010.
Key Features:
- Valve Type: 2×2/2-way closed, monostable valves internally housed for efficient compact control.
- Actuation Method: Electrical operation with pilot air supply (internal or external options).
- Nominal Flow Rate: Delivers up to 1600 l/min for high-performance pneumatic applications.
- Operating Pressure Range: Compatible with –0.9 to 10 bar pressure environments (0.3–0.8 MPa pilot pressure).
- Response Time: 14 ms on-switching and 20 ms off-switching times enable rapid cycling.
- Port Configuration: G1/4 pneumatic working ports, with all pilot/exhaust ports designed as common ports.
- Mounting Flexibility: Supports any orientation with through-hole mounting capability.
- Material Construction: Housing made from POM, PPS, and steel with HNBR/NBR seals for robustness.
- Electrical Specs: Operates on 24 VDC with 1.5 W consumption and 100% duty cycle.
- Protection & Conformity: Rated IP65, RoHS compliant, C-Tick certified, and CRC class 2 corrosion-resistant.
The 185886 ensures compact, responsive, and durable pneumatic control for integrated valve systems in demanding automation environments.
