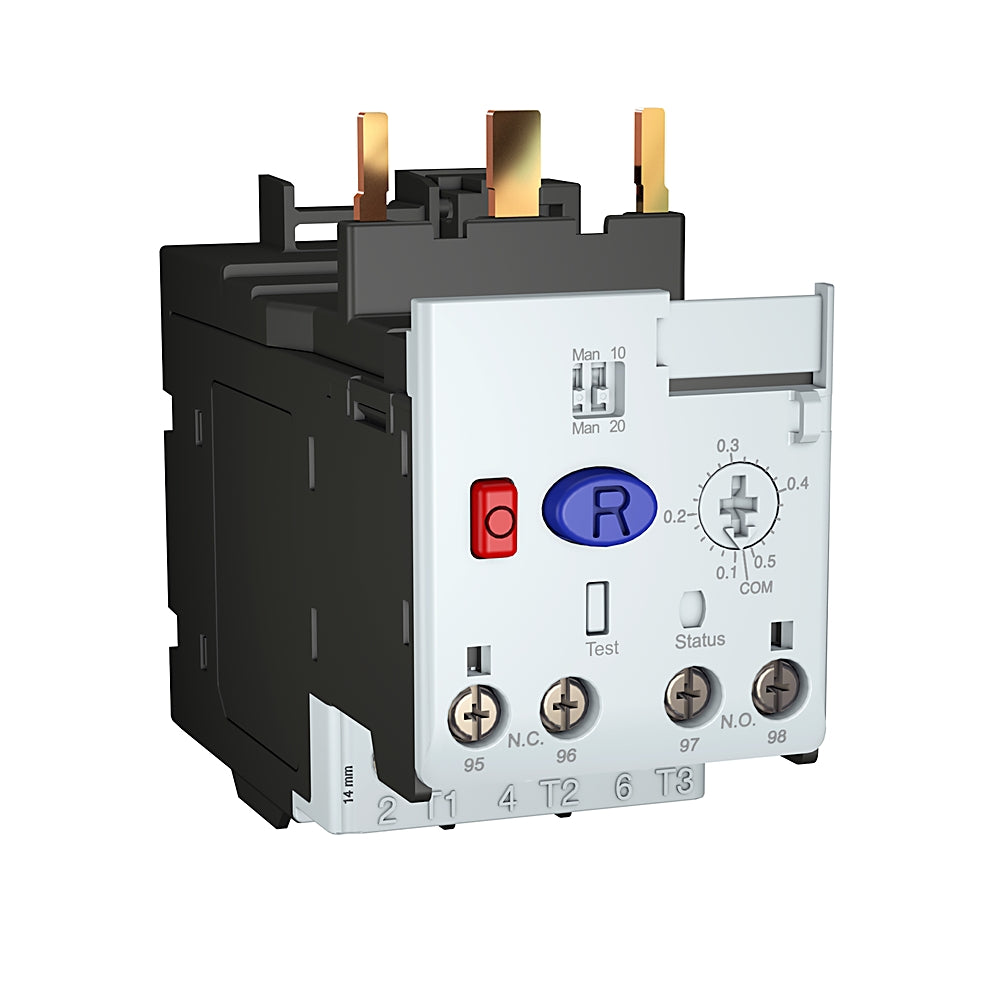

193-1EEFD | Allen-Bradley IEC Overload Relay
- Regular price
- $247.00
- Sale price
- $247.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-1EEFD
Description
The Allen-Bradley 193-1EEFD is an IEC thermal overload relay designed to protect motors from overload conditions. It features adjustable current settings, manual/auto reset options, and trip indication, and is compatible with IEC contactors.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Relays
|
| Part Number | 193-1EEFD |
| Subcategory |
Overcurrent Relays
|
|
Adjustable Range
|
11...55 A |
| Compatible Contactor/Mounting | IEC 100-C C30...C55 |
| Overload Relay | IEC 100-C, IEC 100-E and NEMA 300 |
| Overload Relay Type | Basic Overload Relay |
|
Weight
|
0.29 kgs |
Information About 193-1EEFD
The Allen-Bradley 193-1EEFD is an E100 Electronic Overload Relay designed to protect motors by offering accurate and reliable overload protection. It operates within an adjustable current range of 11 to 55 A, making it suitable for various motor applications.
Key Features:
-
Trip Class Selection: Offers selectable Trip Class 10 or 20, allowing flexibility based on application requirements.
-
Reset Mode: Equipped with a manual reset function to ensure intentional system restarts after a trip event.
-
Phase Loss Protection: Provides enhanced phase loss detection, typically responding within 3 seconds to help prevent motor damage.
-
Contact Configuration: Includes 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) contact for integration into control circuits.
-
Mounting Compatibility: Designed for direct mounting onto 100-C30 to 100-C55 IEC contactors, facilitating straightforward installation.
This overload relay is engineered to provide precise motor protection, ensuring operational reliability and minimizing downtime in industrial applications.
