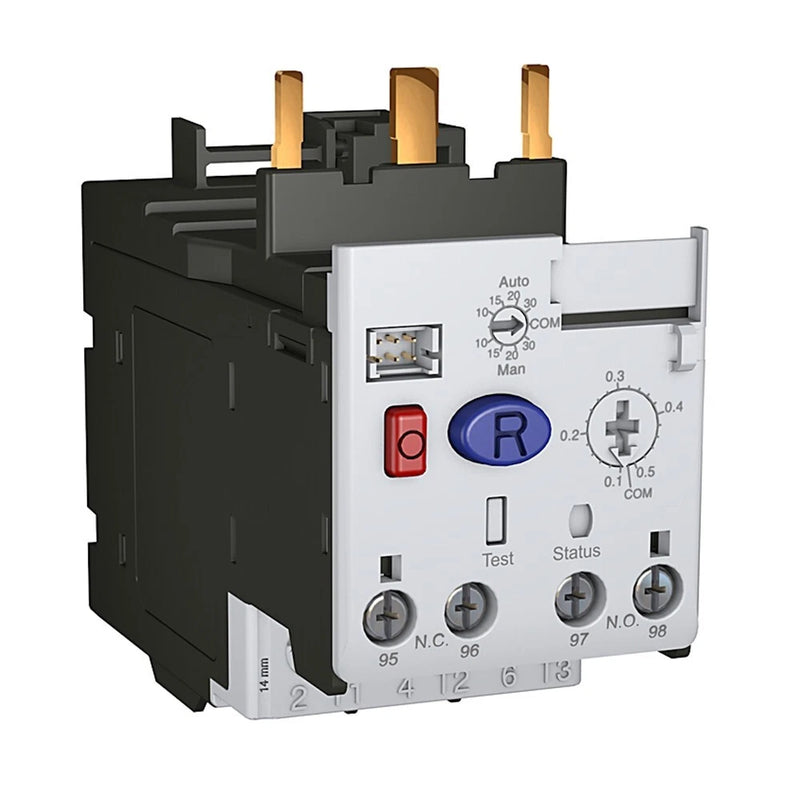

193-1EFED | Allen-Bradley E100 5.4-27.0 A Direct Mnt Ovrld Relay
- Regular price
- $269.00
- Sale price
- $269.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-1EFED
Description
The Allen-Bradley 193-1EFED is a high-performance electronic overload relay from the E100 series, offering precise motor overload protection with adjustable current settings between 5.4 and 27.0 amps. Designed for direct mounting onto compatible contactors, it enhances motor safety and simplifies installation in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 193-1EFED |
| Subcatecory |
Solid State Overload/Relay
|
|
Amperage Range
|
5.4–27.0 A |
|
Contact Configuration
|
1 NO, 1 NC |
|
Number of Poles
|
3 |
|
Voltage Rating
|
690 V |
|
Trip Classes
|
10, 15, 20, 30 (Selectable) |
|
Reset Options
|
Manual or Automatic (Selectable) |
|
Terminal Type
|
Screw Terminals |
|
Mounting
|
Direct to 100-C30 to 100-C55 Contactors |
|
Weight
|
1.39 lbs |
Information About 193-1EFED
The 193-1EFED is an advanced IEC electronic overload relay built for use in motor control circuits requiring reliable and accurate overload protection. It features a current range of 5.4–27.0 A, making it suitable for a broad array of motor applications. This unit includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, enabling easy status signaling and control integration.
Key Features:
- Type: Advanced electronic overload relay for IEC motor protection
- Current Range: Adjustable from 5.4 to 27.0 Amps for flexible application compatibility
- Trip Classes: Selectable trip class options 10, 15, 20, and 30 for custom protection profiles
- Reset Mode: Selectable manual or automatic reset for operational convenience
- Contact Configuration: Includes 1 NO and 1 NC auxiliary contact for signaling and interlocking
- Poles: 3-pole configuration suitable for standard motor circuit protection
- Voltage Rating: Operates at up to 690V
- Mounting: Direct mount compatible with Allen-Bradley 100-C30 to 100-C55 contactors
- Terminal Type: Screw-type terminals for secure wiring
- Enclosure Type: NEMA-rated for use in industrial panel environments
- Application: Provides precise, reliable motor overload protection in demanding automation and control systems
The 193-1EFED offers versatile trip settings and direct mounting convenience, delivering efficient and scalable motor protection for industrial applications.
