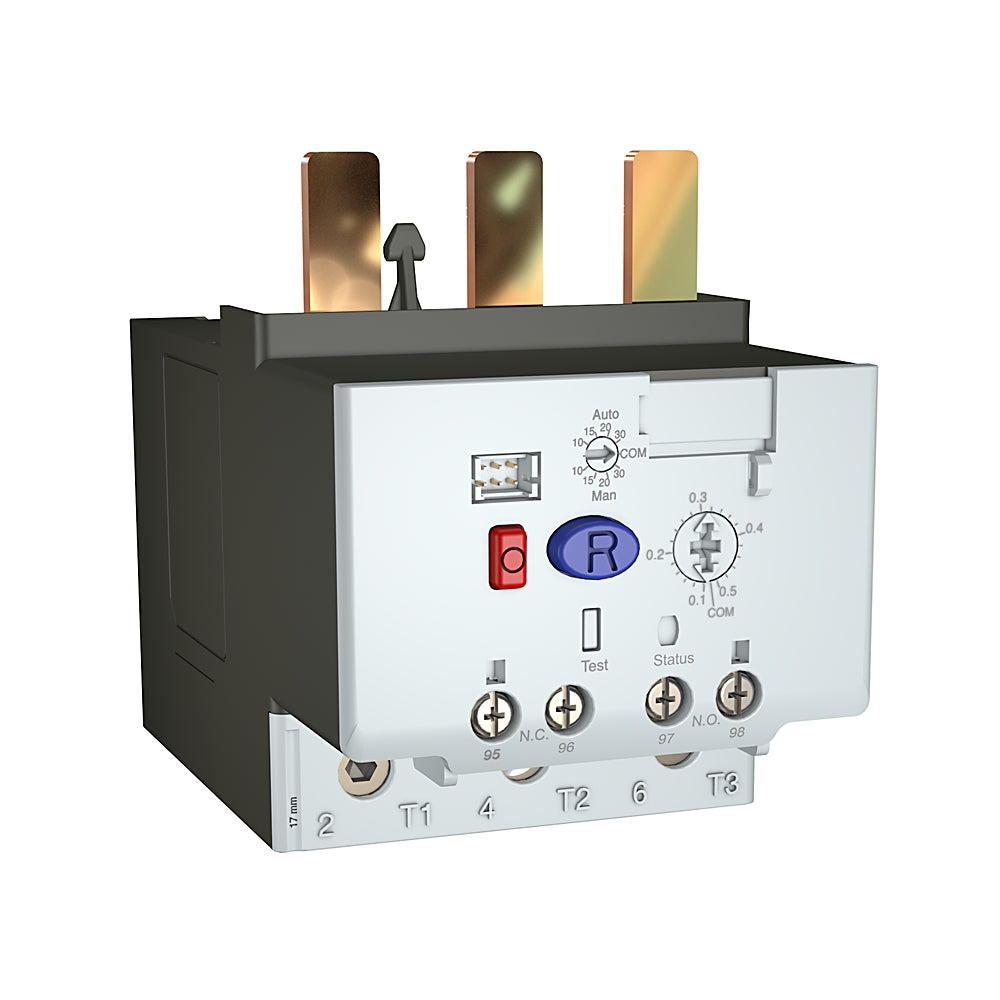

193-1EFGE | Allen-Bradley E100 20-100 A Direct Mnt Ovrld Relay
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-1EFGE
Description
The Allen-Bradley 193-1EFGE is an advanced E100 series overload relay designed for direct mounting and reliable motor protection in industrial applications. With a wide adjustable current range from 20 to 100 A, this 3-pole device provides precise thermal overload protection for motors operating in demanding environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Relays |
| Part Number | 193-1EFGE |
| Subcatecory |
Solid State Overload Relays
|
| Amperage Range | 20–100 Amp |
| Applications | Motor Overload Protection |
| Voltage Rating | 690 V |
| Number of Poles | 3 Pole |
| Contact Configuration | 1 NO, 1 NC |
| Terminal Type | Screw |
| Enclosure Type | NEMA |
| Mounting Style | Direct Mount |
| Weight | 1.7400 lb |
Information About 193-1EFGE
The 193-1EFGE is part of Allen-Bradley’s E100 IEC overload relay family, offering both manual and automatic reset modes, along with built-in flexibility and advanced protection features. It is intended for direct mounting to compatible contactors and features a screw terminal connection for secure and efficient wiring. The relay operates at voltages up to 690V and includes integrated auxiliary contacts (1 NO and 1 NC) for real-time status feedback and circuit control. Housed in a NEMA-rated enclosure, the unit is suitable for use in motor control centers, industrial panels, and automated machinery.
Key Features:
-
Wide Current Range (20–100 A): Supports a variety of motor sizes and reduces the need for multiple part numbers.
-
Advanced Protection Functions: Provides motor overload protection with manual or automatic reset options.
-
Integrated Auxiliary Contacts: Includes 1 normally open and 1 normally closed contact for control and monitoring.
-
Direct Mount Design: Allows easy integration with compatible contactors for streamlined installation.
-
NEMA Enclosure Rating: Ensures durability and environmental protection in industrial settings.
The 193-1EFGE is ideal for motor control applications requiring dependable overload protection, flexible installation, and reliable auxiliary feedback for system diagnostics.
