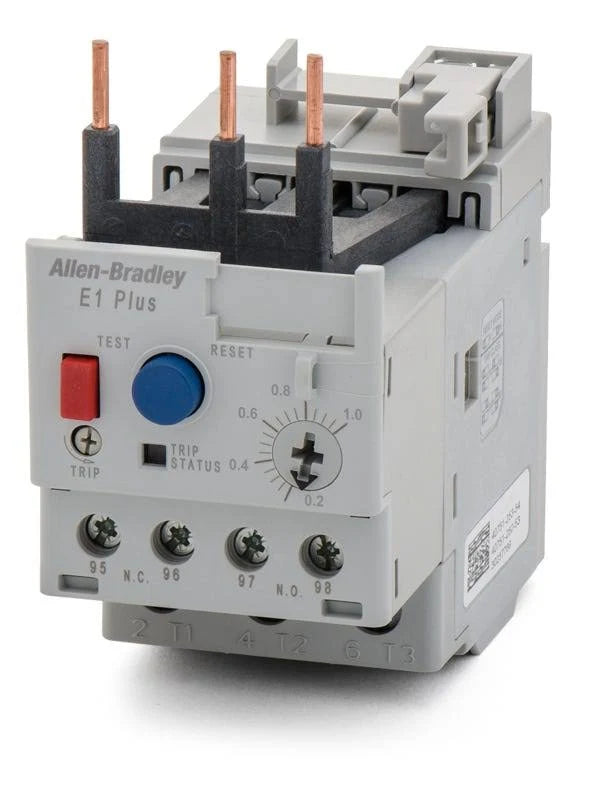

193-ED1BB | Allen-Bradley E1 Plus 0.2-1.0 Amp Overload Relay
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-ED1BB
Description
The Allen-Bradley 193-ED1BB is an IEC-type electronic overload relay from the E1 Plus series, providing precise motor protection for low-current applications. Rated for 0.2 to 1.0 Amps, it features manual reset functionality and mounts directly to Allen-Bradley 100-C09 through 100-C23 contactors.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 193-ED1BB |
| Subcatecory |
Solid State Overload/Relay
|
| Amperage | 0.2-1 Amp |
| Contact Configuration | 1 NO, 1 NC |
| Trip Class | 10 |
| Terminal Type | Screw |
| Applications | Mounts to 100-C09 to 100-C23 Contactors |
| Number of Phases | 3 Phase |
| Standard | C-TICK,CCC,CE,CSA,CUL,KC,MARINE,UL |
| Voltage | 600-690 VAC at 50/60 Hz |
| Weight | 0.6200 lb |
Information About 193-ED1BB
The 193-ED1BB is a compact 3-phase overload relay designed to protect fractional horsepower motors in control circuits operating at 600–690 VAC. It includes one normally open (NO) and one normally closed (NC) auxiliary contact and supports Class 10 tripping characteristics for rapid overload response. Screw-type terminals simplify installation, and the manual reset ensures deliberate restart of protected motors. With global certifications including CE, UL, CSA, KC, Marine, and more, this unit is suitable for compliance-driven environments.
Key Features:
- Precise Current Protection: covers a narrow range of 0.2 to 1.0 A, perfect for protecting low-amperage motors.
- Trip Class 10: enables quick tripping for thermal overload conditions to minimize motor damage.
- Manual Reset Mechanism: supports controlled system recovery after fault clearing.
- Integrated Auxiliary Contacts: includes 1 NO and 1 NC for control logic feedback or interlocking.
- Global Certifications: complies with UL, CE, CCC, CSA, KC, Marine, and other international safety standards.
- Compatible Mounting: installs directly onto Allen-Bradley 100-C09 to 100-C23 contactors using screw terminals.
The 193-ED1BB delivers low-range, high-precision overload protection with manual reset and universal certification for integration into compact motor control assemblies.
