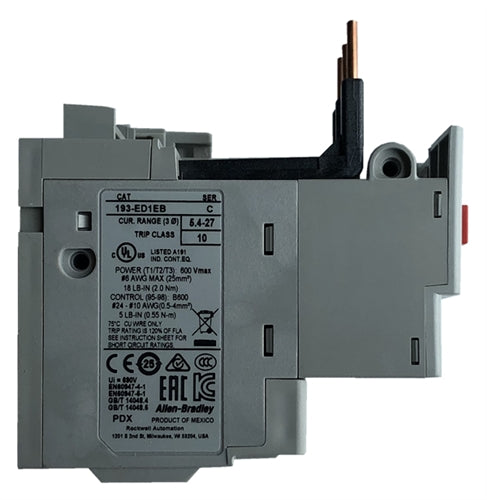

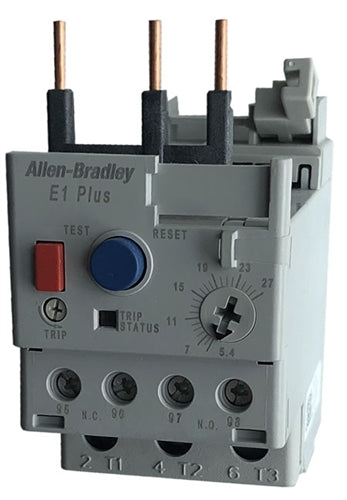

193-ED1EB | Allen-Bradley IEC Overload Relay
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-ED1EB
Description
The Allen-Bradley 193-ED1EB is a solid-state, three-phase electronic overload relay from the E1 Plus series, designed to protect motors operating within a 5.4–27 A range.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 193-ED1EB |
| Subcatecory |
Solid State Overload/Relay
|
| Phases | 3 |
|
Current Rnage |
5.4 - 27 A |
|
Product Family
|
Bulletin 193 IEC Series |
| Contact Configuration | DPCO |
| Trip Class | Class 10 Protection |
| Terminal Type | Screw |
| Relay Type | Solid State |
| Manual Reset | Yes |
| Weight | 0.51 lbs |
Information About 193-ED1EB
The Allen-Bradley 193-ED1EB is a solid-state, three-phase electronic overload relay from the E1 Plus series, designed to protect motors operating within a 5.4–27 A range. It features a fixed Trip Class 10 and a manual reset mechanism, providing reliable protection against motor overloads and phase loss conditions.
Key Features:
-
Current Range: 5.4–27 A
-
Trip Class: Fixed Class 10
-
Reset Type: Manual
-
Protection Features: Phase loss detection, ambient temperature compensation, and thermal memory for accurate motor protection
-
Auxiliary Contacts: 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) isolated contacts, rated B600
-
Mounting Compatibility: Directly mounts to Allen-Bradley 100-C09 to 100-C23 contactors
-
Design: Over-molded power connections for sturdy assembly and low energy consumption (150 mW)
This relay is suitable for applications requiring precise motor protection and is designed for straightforward installation and setup.
