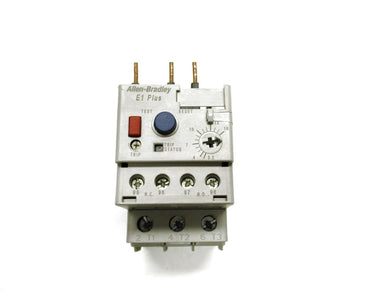

193-EEDB | Allen-Bradley E1 Plus Solid State Overload Relay, 3.2-16A, 3PH
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 193-EEDB
Description
The Allen-Bradley 193-EEDB is an E1 Plus electronic overload relay designed for motor protection in the 3.2–16 A range. It provides selectable trip classes and integrates directly with compatible IEC contactors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Overload Relays |
| Part Number | 193-EEDB |
| Subcategory | IEC Overload Relays |
| Amperage Range | 3.2–16 A |
| Voltage Rating | 600–690 VAC, 50/60 Hz |
| Number of Phases | 3 Phase |
| Contact Configuration | 1 NO, 1 NC |
| Trip Class | 10 / 15 / 20 / 30 (Selectable) |
| Reset Type | Manual or Auto-Manual |
| Terminal Type | Screw |
| Compatible Contactors | 100-C09 to 100-C23 |
| Standards | CE, CSA, UL, KC, CCC, Marine, C-TICK |
| Type | Electronic IEC Overload Relay |
| Application | Motor Overload Protection |
| Weight | 0.65 lb |
Information About 193-EEDB
The 193-EEDB belongs to the Allen-Bradley E1 Plus overload relay family, offering electronic motor overload protection for three-phase systems operating at 600–690 VAC. It mounts directly to 100-C09 through 100-C23 contactors, creating a compact and coordinated motor starter assembly. The relay supports a 3.2–16 A adjustment range, includes 1 NO and 1 NC auxiliary contacts, and provides selectable trip classes (10, 15, 20, 30) for tailoring protection to motor characteristics. With screw terminals, selectable manual or auto-manual reset, and certifications including CE, UL, C-TICK, CSA, Marine, and KC, it ensures reliable protection in industrial motor control applications.
Key Features:
- 3.2–16 A Adjustable Range: Supports a wide motor current range for flexible protection settings.
- Direct Mount to 100-C09…100-C23 Contactors: Forms a compact motor starter solution without additional hardware.
- Selectable Trip Classes 10/15/20/30: Allows tuning of trip response to specific motor starting requirements.
- 1 NO and 1 NC Auxiliary Contacts: Provides status and tripping feedback to control circuits.
- Three-Phase Overload Protection: Designed for IEC motor protection at 600–690 VAC, 50/60 Hz.
- Manual or Auto-Manual Reset Options: Offers configurable reset behavior for operational preferences.
- Screw Terminal Connections: Ensures secure wiring in industrial control panels.
- Global Certifications: Complies with CE, CSA, UL, KC, CCC, Marine, and C-TICK standards.
The 193-EEDB delivers the reliability and precision required for dependable three-phase motor overload protection and coordinated IEC motor starter assemblies.
