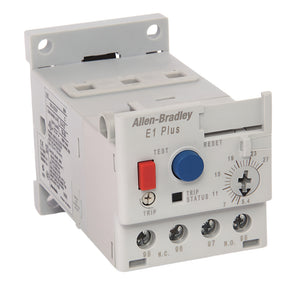

193-EEED | Allen-Bradley Overload Relay
- Regular price
- $372.00
- Sale price
- $372.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-EEED
Description
The Allen-Bradley 193-EEED is an electronic overload relay designed to protect motors from overload, phase loss, and phase imbalance conditions. Part of the E3 Plus series, it offers advanced diagnostics, adjustable trip settings, and communication capabilities for enhanced motor protection and system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Relays
|
| Part Number | 193-EEED |
| Subcategory | Solid State Overload Relays |
| Amperage | 5.4-27 Amp |
|
Contact Configuration
|
1 NO, 1 NC |
| Reset Type | Selectable Manual or Auto-Manual Reset |
| Terminal Type | Screw |
| Applications | Mounts to 100-C30 to 100-C43 Contactors |
| Number of Phases |
3 Phase
|
| Standard | C-TICK,CCC,CE,CSA,KC,MARINE |
| Trip Class | Selectable Trip Class 10-15-20-30 |
| Voltage | 600-690 VAC at 50/60 Hz |
| Weight | 0.13 kgs |
Information About 193-EEED
The Allen-Bradley 193-EEED is an electronic overload relay from the E1 Plus series, designed to protect three-phase motors from overload, phase loss, and phase imbalance conditions. With an adjustable current range of 5.4 to 27.0 amps, it offers dependable and configurable motor protection for a wide range of industrial applications.
Key Features:
Adjustable Protection Settings: The 193-EEED features adjustable trip classes (10, 15, 20, or 30), allowing users to tailor protection levels based on motor load characteristics and application demands.
Flexible Reset Options: Equipped with both manual and automatic reset modes, it supports application flexibility and quick recovery after fault conditions.
Expansion Capability: Compatible with side-mount modules for advanced functions such as communication, ground fault detection, and remote reset, enhancing system diagnostics and integration.
Electronic Sensing: Offers precise thermal modeling and real-time current monitoring for reliable and accurate motor overload protection.
Physical Characteristics:
Current Range: Covers 5.4–27.0 A, making it suitable for medium-duty motor applications in diverse industrial environments.
Mounting Design: Compact form factor supports direct mounting to contactors or DIN rail installation, saving space in control panels.
In summary, the Allen-Bradley 193-EEED provides robust, flexible motor protection with electronic precision and modular expandability, making it a reliable choice for legacy motor control systems.
