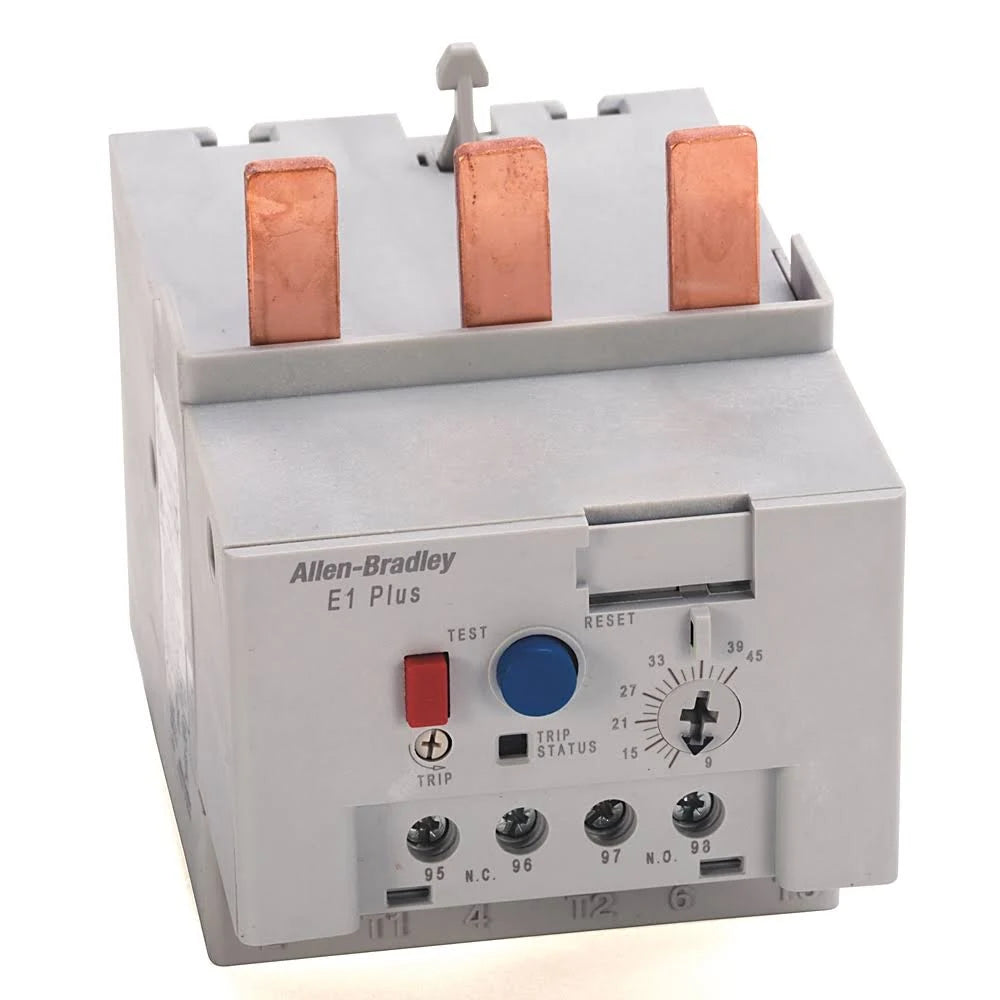

193-EEFD | Allen-Bradley E1 Plus 9-45 Amp Overload Relay
- Regular price
- $579.00
- Sale price
- $579.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 193-EEFD
Description
The Allen-Bradley 193-EEFD is a 3-phase IEC overload relay from the E1 Plus series, designed for motor protection applications with adjustable current settings from 9 to 45 amps. It offers selectable trip classes and integrates directly with Allen-Bradley 100-C30 to 100-C43 contactors.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 193-EEFD |
| Subcategory | Solid State Overload/Relay |
| Series |
E1 Plus (Bulletin 193)
|
| Amperage Range | 9–45 A |
| Number of Phases | 3 Phase |
| Voltage Rating | 600–690 VAC 50/60 Hz |
| Trip Class | Selectable (10, 15, 20, 30) |
| Reset Type | Manual or Auto/Manual |
| Contact Configuration | 1 Normally Open, 1 Normally Closed |
| Terminal Type | Screw Terminals |
| Mounting Style | Direct to 100-C30 to 100-C43 Contactors |
| Standards Compliance | CE, CSA, CUL, CCC, KC, C-TICK, MARINE |
| Weight | 0.7100 lb |
Information About 193-EEFD
The 193-EEFD belongs to the E1 Plus Series of electronic overload relays, offering flexible and reliable motor protection in IEC-compliant control systems. This model supports 9–45 A adjustable current range, suitable for a wide variety of motor sizes. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for feedback or interlock circuits. Designed for three-phase motors, the relay mounts directly onto 100-C30 through 100-C43 contactors, enabling seamless integration into Allen-Bradley motor control assemblies. The unit offers selectable trip classes (10, 15, 20, 30) for adapting to specific motor startup characteristics.
Key Features:
-
Amperage Range: Adjustable from 9 to 45 A to match motor current ratings.
-
Trip Class: Selectable thermal trip class 10, 15, 20, or 30 for tailored protection.
-
Contact Configuration: 1 NO and 1 NC auxiliary contact for control circuit integration.
-
Reset Type: Selectable manual or auto/manual reset for flexible restart behavior.
-
Voltage Rating: 600–690 VAC at 50/60 Hz supports international power standards.
-
Mounting Compatibility: Designed to mount directly onto 100-C30 to 100-C43 contactors.
-
Certifications: CCC, CE, CSA, KC, MARINE, and C-TICK compliant for global usage.
The 193-EEFD provides robust, customizable motor overload protection in compact, mountable form, suitable for industrial automation panels and MCCs.
